Automatic Swing Gate Motor for Gates up to 5m and 400 KG

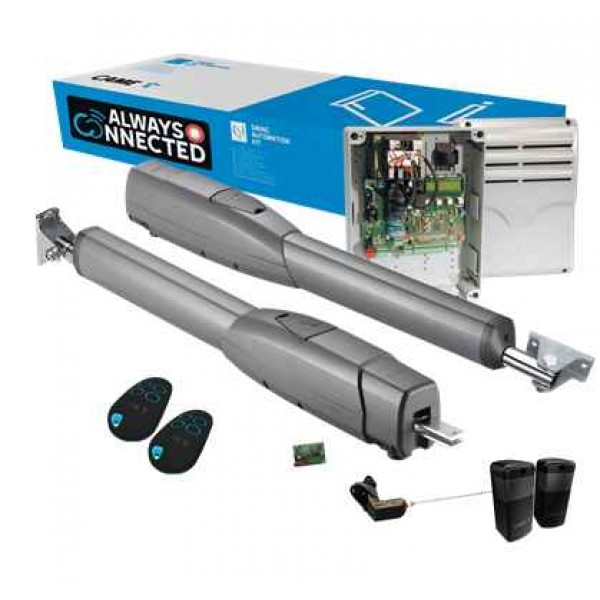

The CAME ATS50AGS Swing Gate Motor is a powerful and reliable automation solution designed for large residential, commercial, and light industrial swing gates across UAE.
Engineered for gate leaves up to 5 meters long and weighing up to 400 KG, the ATS50AGS provides smooth, controlled, and secure gate movement while delivering exceptional reliability for daily operation.
Powered by a robust 230V irreversible telescopic gear motor, this advanced swing gate operator offers strong holding force and dependable performance even in demanding environments.
The telescopic arm design ensures smooth opening and closing cycles while reducing stress on gate structures, making it ideal for villas, commercial buildings, warehouses, and compound entrances.
Finished in modern RAL7024 grey, the ATS50AGS combines durability with professional appearance. Its IP54 protection rating provides excellent resistance against dust, humidity, and water splashes, making it suitable for harsh UAE weather conditions.
Built for long-term operation, this motor delivers reliable automation performance across Dubai, Sharjah, Abu Dhabi, Ajman, Fujairah, Ras Al Khaimah, Al Ain, Umm Al Quwain, and throughout UAE.
CAME ATS50AGS Features
- 230V irreversible telescopic gear motor
- Suitable for gate leaves up to 5 meters
- Supports gate weights up to 400 KG
- Smooth and controlled gate movement
- Strong thrust force for reliable operation
- Modern RAL7024 grey housing
- IP54 weather-resistant protection
- Suitable for residential and commercial gates
- Durable telescopic arm mechanism
- Designed for UAE climate conditions
Technical Specifications
- Product Code: 801MP-0060
- Model: ATS50AGS
- Motor Voltage: 230V AC
- Current Absorption: 1A
- Power Consumption: 250W
- Opening Time at 90°: 20 Seconds
- Duty Cycle: 20 Cycles Per Hour
- Thrust Force: 400 – 3000 N
- Maximum Gate Leaf Length: 5 m
- Maximum Gate Weight: 400 KG
- Maximum C Dimension: 200 mm
- Operating Temperature: -20°C to +55°C
- Motor Thermal Protection: 150°C
- Protection Rating: IP54
Applications
- Residential villa swing gates
- Commercial building entrances
- Warehouse swing gates
- Industrial facility entrances
- Compound access gates
- Private parking entrances
- Remote-controlled gate systems
- Automated access control solutions
Why Choose CAME ATS50AGS UAE?
- Suitable for large gate leaves up to 5 meters
- Reliable Italian gate automation technology
- Strong irreversible gearmotor design
- Smooth and controlled operation
- Weather-resistant IP54 protection
- Long-lasting durability and performance
- Professional installation support across UAE
Frequently Asked Questions
What gate size can the CAME ATS50AGS support?
The CAME ATS50AGS is suitable for swing gate leaves up to 5 meters long and weighing up to 400 KG.
Is the motor suitable for commercial applications?
Yes, the ATS50AGS is ideal for residential villas, commercial buildings, warehouses, and industrial gate installations.
Can the motor operate in UAE weather conditions?
Yes, with its IP54 protection rating and durable construction, the motor is designed to perform reliably in UAE heat, dust, and outdoor environments.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
