Automatic Swing Gate Opener for Residential & Commercial Gates
The CAME ATI 3000 Swing Gate Opener is a robust and reliable automation solution designed for residential, commercial, and industrial swing gates across UAE.
Suitable for gate leaves up to 3 meters and gate weights up to 400 KG, the ATI 3000 delivers smooth, secure, and dependable gate automation for villas, residential compounds, commercial properties, and industrial entrances.
Powered by an irreversible 230V gearmotor, the system provides strong holding force and secure gate locking without requiring additional electric locks in many applications.
The ATI 3000 features advanced motor and encoder management technology with support for 24V DC versions using three-wire cabling, providing enhanced efficiency and simplified installation.
Integrated obstacle detection through amperometric control continuously monitors gate movement and helps protect vehicles, pedestrians, and property by detecting obstructions during operation.
For maximum reliability, the 24V DC versions can continue operating during power failures when connected to backup power systems, ensuring uninterrupted access and convenience.
Designed for intensive daily use, the CAME ATI 3000 provides smooth and quiet operation while maintaining long-term durability in demanding UAE weather conditions including heat, humidity, dust, and outdoor exposure.
CAME ATI 3000 Features
- Irreversible 230V gearmotor
- Suitable for gate leaves up to 3 meters
- Supports gate weights up to 400 KG
- Motor and encoder management system
- Obstacle detection through amperometry
- Three-wire cabling support on 24V DC versions
- Emergency operation during power outages
- Smooth and quiet gate movement
- High durability for daily operation
- Thermal motor protection
- Suitable for residential and commercial installations
Technical Specifications
- Model: ATI 3000
- Motor Voltage: 230V AC 50/60Hz
- Current Absorption: 1.2A
- Power Consumption: 260W
- Opening Time at 90°: 19–25 Seconds
- Duty Cycle: 24 Cycles Per Hour
- Thrust Force: 400–4000 N
- Operating Temperature: -20°C to +55°C
- Motor Thermal Protection: 150°C
- Protection Rating: IP44
- Maximum Gate Leaf Length: 3 m
- Maximum Gate Weight: 400 KG

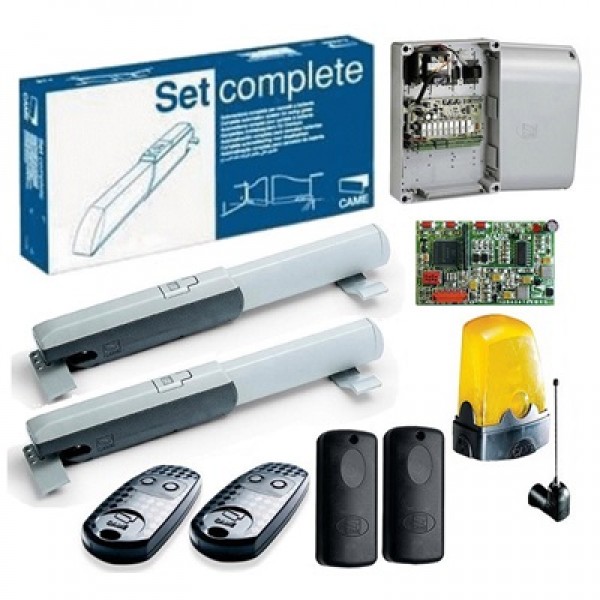

Kit Includes
- 2 x CAME ATI 3000 Swing Gate Motors
- 1 x Multifunction Control Panel for Two Gate Leaves
- 2 x CAME TOP 432EE Remote Controls
- 1 x CAME KIARO Flashing Light
- 1 x Pair of CAME DELTA DIR Photocell Sensors
- 2 x Wall Fixing Brackets
- 1 x Push Button
Applications
- Villa swing gates
- Residential compounds
- Commercial property entrances
- Industrial swing gates
- Apartment complexes
- Private parking entrances
- Remote-controlled gate systems
- Automated gated entrances
Why Choose CAME ATI 3000 UAE?
- Reliable Italian gate automation technology
- Strong irreversible gearmotor design
- Integrated obstacle detection safety
- Smooth and quiet gate operation
- Emergency operation capability
- Suitable for UAE climate conditions
- Professional installation support across UAE
Frequently Asked Questions
What gate size can the CAME ATI 3000 support?
The CAME ATI 3000 is suitable for swing gate leaves up to 3 meters long and weighing up to 400 KG.
Does the motor include obstacle detection?
Yes, the ATI 3000 includes amperometric obstacle detection technology for enhanced operational safety.
Can the gate operate during a power failure?
Yes, the 24V DC versions can continue operating with compatible backup power systems during a blackout.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
