Telescopic Swing Gate Automation for Villas & Commercial Entrances

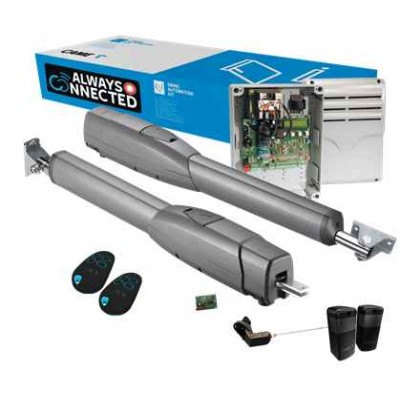

The CAME ATS30AGS Swing Gate Motor is a high-performance automation solution designed for residential, commercial, and industrial swing gates with leaf lengths up to 3 meters and gate weights up to 400 KG.
Engineered with a powerful 230V irreversible telescopic gear motor, the ATS30AGS delivers smooth, reliable, and secure gate operation while providing strong holding force and long-term durability.
This advanced swing gate operator is ideal for villas, commercial compounds, industrial facilities, apartment entrances, and automated access control systems across UAE.
The motor features a modern RAL7024 grey finish, robust construction, and IP54 protection rating, ensuring reliable performance under harsh outdoor conditions including heat, humidity, dust, and rain.
With a fast opening time of only 15 seconds for a 90° opening angle, the ATS30AGS provides efficient daily operation while maintaining smooth gate movement and user convenience.
Designed for medium-intensity use with up to 20 cycles per hour, this motor is perfectly suited for residential and commercial gate automation applications throughout Dubai, Sharjah, Abu Dhabi, Ajman, Fujairah, Ras Al Khaimah, Al Ain, Umm Al Quwain, and across UAE.
CAME ATS30AGS Features
- 230V irreversible telescopic gear motor
- Suitable for gate leaves up to 3 meters
- Supports gate weights up to 400 KG
- Fast 15-second opening time
- Strong and reliable thrust force
- Modern RAL7024 grey finish
- Built-in thermal motor protection
- IP54 weather-resistant housing
- Smooth and quiet gate movement
- Suitable for residential and commercial gates
Technical Specifications
- Product Code: 801MP-0050
- Model: ATS30AGS
- Motor Voltage: 230V AC
- Current Absorption: 1A
- Power Consumption: 250W
- Opening Time at 90°: 15 Seconds
- Duty Cycle: 20 Cycles Per Hour
- Thrust Force: 400 – 3000 N
- Operating Temperature: -20°C to +55°C
- Motor Thermal Protection: 150°C
- Protection Rating: IP54
- Maximum Gate Leaf Length: 3 m
- Maximum Gate Weight: 400 KG
Applications
- Villa swing gates
- Residential entrances
- Commercial property gates
- Industrial facility entrances
- Apartment compounds
- Remote-controlled gate systems
- Private parking entrances
- Automatic access control systems
Why Choose CAME ATS30AGS UAE?
- Reliable Italian gate automation technology
- Suitable for gates up to 400 KG
- Fast and smooth gate operation
- Weather-resistant IP54 protection
- Built-in thermal motor safety
- Designed for UAE climate conditions
- Professional installation support across UAE
Frequently Asked Questions
What gate size can the CAME ATS30AGS support?
The CAME ATS30AGS is suitable for swing gate leaves up to 3 meters long and weighing up to 400 KG.
How fast does the motor open the gate?
The motor can open a gate to 90 degrees in approximately 15 seconds.
Is the motor suitable for outdoor installation?
Yes, the ATS30AGS features an IP54 protection rating and is designed for outdoor use in UAE weather conditions.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
