Automatic Swing Gate Opener for Large Residential & Commercial Gates
The CAME ATI A5000 Swing Gate Opener is a robust and reliable automation solution designed for residential, commercial, and industrial swing gates across UAE.
Suitable for gate leaves up to 5 meters long and weighing up to 400 KG, the ATI A5000 delivers smooth, secure, and dependable automation for villas, residential compounds, commercial buildings, warehouses, and industrial entrances.
Powered by an irreversible 230V gearmotor, the system provides strong holding force and secure gate locking while ensuring long-lasting performance and reliable daily operation.
The ATI A5000 features advanced motor and encoder management technology and supports 24V DC versions with three-wire cabling for enhanced installation flexibility and system efficiency.
Integrated obstacle detection through amperometric control continuously monitors gate movement and automatically detects resistance, helping protect vehicles, pedestrians, and property during gate operation.
For added convenience, the 24V DC versions can continue operating during power failures when connected to backup systems, ensuring uninterrupted access control.
Designed for long-term outdoor operation, the ATI A5000 combines smooth and quiet gate movement with durable construction, making it suitable for demanding UAE weather conditions including heat, dust, humidity, and rain.
CAME ATI A5000 Features
- Irreversible 230V gearmotor
- Suitable for gate leaves up to 5 meters
- Supports gate weights up to 400 KG
- Motor and encoder management system
- Obstacle detection through amperometry
- 24V DC three-wire technology support
- Emergency operation during power failures
- Smooth and quiet gate movement
- High durability for intensive use
- Thermal motor protection
- Suitable for residential and commercial gates
Technical Specifications
- Model: ATI A5000
- Motor Voltage: 230V AC 50/60Hz
- Current Absorption: 1.2A
- Power Consumption: 260W
- Opening Time at 90°: 30–40 Seconds
- Duty Cycle: 15 Cycles Per Hour
- Thrust Force: 400–4000 N
- Operating Temperature: -20°C to +55°C
- Motor Thermal Protection: 150°C
- Protection Rating: IP44
- Maximum Gate Leaf Length: 5 m
- Maximum Gate Weight: 400 KG

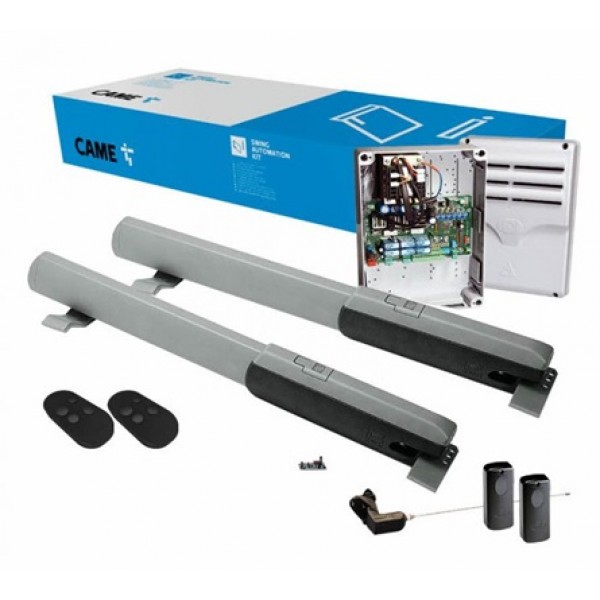

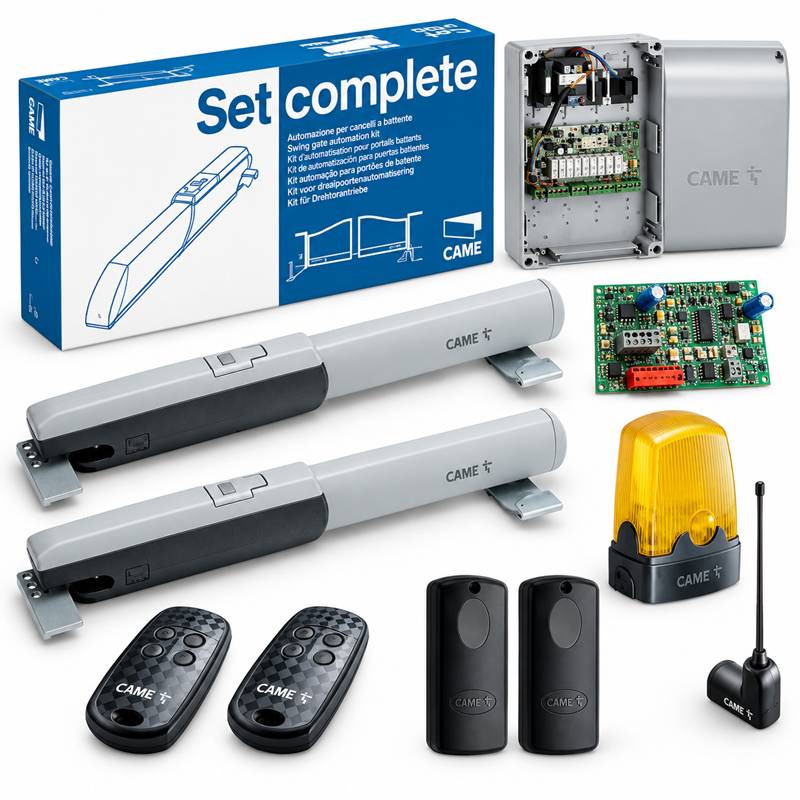

Kit Includes
- 2 x CAME ATI A5000 Swing Gate Motors
- 1 x Multifunction Control Panel for Two Swing Leaves
- 2 x CAME TOP 432EE Remote Controls
- 1 x CAME KIARO Flashing Light
- 1 x Pair of CAME DELTA DIR Photocell Sensors
- 2 x Wall Fixing Brackets
- 1 x Push Button
Applications
- Villa swing gates
- Residential compounds
- Commercial property entrances
- Industrial swing gates
- Apartment complexes
- Private parking entrances
- Remote-controlled gate systems
- Automated gated entrances
Why Choose CAME ATI A5000 UAE?
- Suitable for large gate leaves up to 5 meters
- Reliable Italian gate automation technology
- Integrated obstacle detection safety
- Smooth and quiet gate operation
- Emergency operation capability
- Weather-resistant construction
- Professional installation support across UAE
Frequently Asked Questions
What gate size can the CAME ATI A5000 support?
The CAME ATI A5000 is suitable for swing gate leaves up to 5 meters long and weighing up to 400 KG.
Does the motor include obstacle detection?
Yes, the ATI A5000 includes amperometric obstacle detection technology for enhanced operational safety.
Can the gate operate during a power failure?
Yes, the 24V DC versions can continue operating with compatible backup systems during a blackout.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
