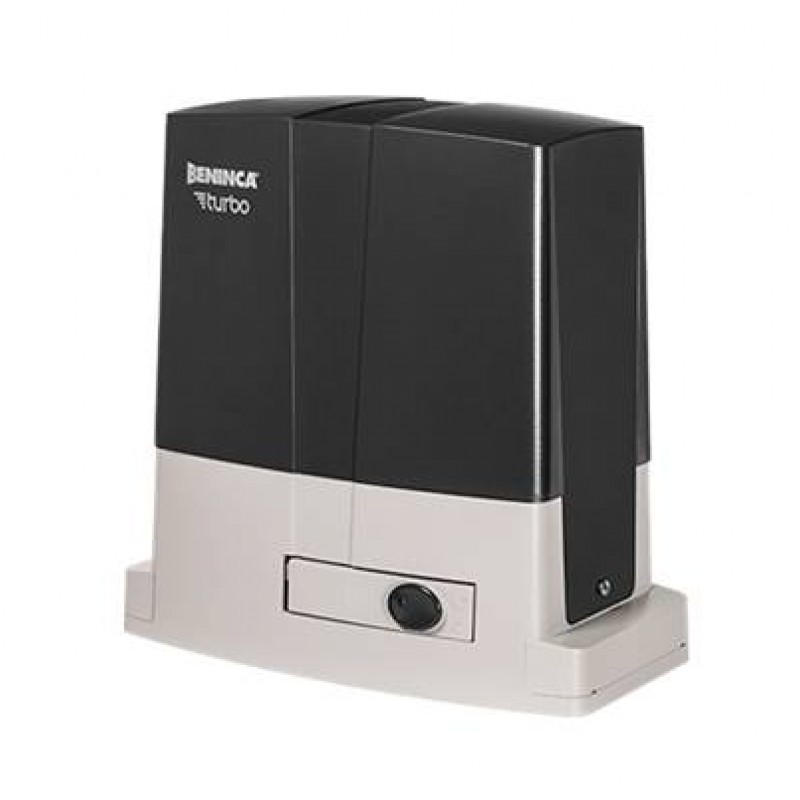

BENINCA BULL624 TURBO 600 KG Sliding Gate Motor in UAE

BENINCA BULL624 TURBO 600 KG Sliding Gate Motor in Dubai

• The BENINCA BULL624 TURBO Sliding Gate Motor is a powerful commercial-grade 24Vdc automation system
• designed for sliding gates weighing up to 600 kg. Engineered for high-speed performance,
• this turbo gear motor achieves opening speeds of up to 25.5 meters per minute,
• significantly higher than standard sliding gate operators.
• The BULL624 TURBO uses an advanced encoder system recreated by the control unit,
• which continuously analyses electric motor parameters to manage slowing phases, track gate travel,
• and regulate torque according to the gate’s position.
• This intelligent power control system ensures maximum safety,
• precise movement, and optimal performance even in demanding environments.
• Equipped with an integrated control unit and radio receiver,
• the system supports up to 512 remote transmitters using
• Advanced Rolling Code (ARC) technology for superior security.
• The operator can also be integrated with KNX home and building automation systems
• via the optional X.BE interface card, making it ideal for modern commercial installations.
• With a 60% duty cycle, quiet operation, and robust Italian engineering,
• the BENINCA BULL624 TURBO is perfect for commercial entrances, shared residential compounds,
• parking facilities, and high-traffic sliding gates throughout Dubai, Sharjah, Abu Dhabi, and the UAE.

BENINCA BULL624 TURBO Key Features

• High-speed turbo sliding gate motor
• Suitable for gates up to 600 kg
• 24Vdc motor for commercial use
• Opening speed up to 25.5 m/min
• Intelligent torque and thrust calculation
• Encoder-based safety and movement tracking
• Integrated control unit and receiver
• Stores up to 512 remote controls
• KNX automation compatible (optional X.BE card)
• Smooth, fast, and quiet operation

BENINCA BULL624 TURBO Technical Specifications

• Power Supply: 115 / 230 Vac (50–60 Hz)
• Motor Supply: 24 Vac
• Max Absorbed Current: 3 A
• Maximum Thrust: 330 N
• Opening Speed: 12.5 – 25.5 m/min
• Duty Cycle: 60%
• Protection Level: IP44
• Built-in Control Unit: Yes
• Integrated Receiver: Yes
• Encoder: Yes
• Virtual Encoder: No
• Magnetic Limit Switches: No
• Pinion: M4 Z18
• Lubrication: Grease
• Operating Temperature: -20°C to +50°C
• Maximum Gate Weight: 600 kg
• Motor Weight: 10 kg
• Kit Weight: 10.6 kg

BENINCA BULL624 TURBO Kit Includes

• 1 × BENINCA BULL624 TURBO Sliding Gate Motor
• 2 × BENINCA Remote Controls (433.92 MHz)
• 1 × Pair of outdoor photocells
• 1 × Integrated control unit
• 4 × Nylon rack (1 m each)
• 1 × Blinker light
• 1 × Push button

Recommended Applications

• Commercial sliding gates
• High-traffic access points
• Parking entrances
• Residential compounds
• Smart building automation projects

Why Choose BENINCA BULL624 TURBO in UAE?

• Made in Italy BENINCA quality
• Turbo speed for fast gate operation
• Advanced encoder & torque management
• Ideal for commercial and frequent-use gates
• KNX smart automation compatibility
• Reliable performance in UAE climate
• Complete kit for professional installation
