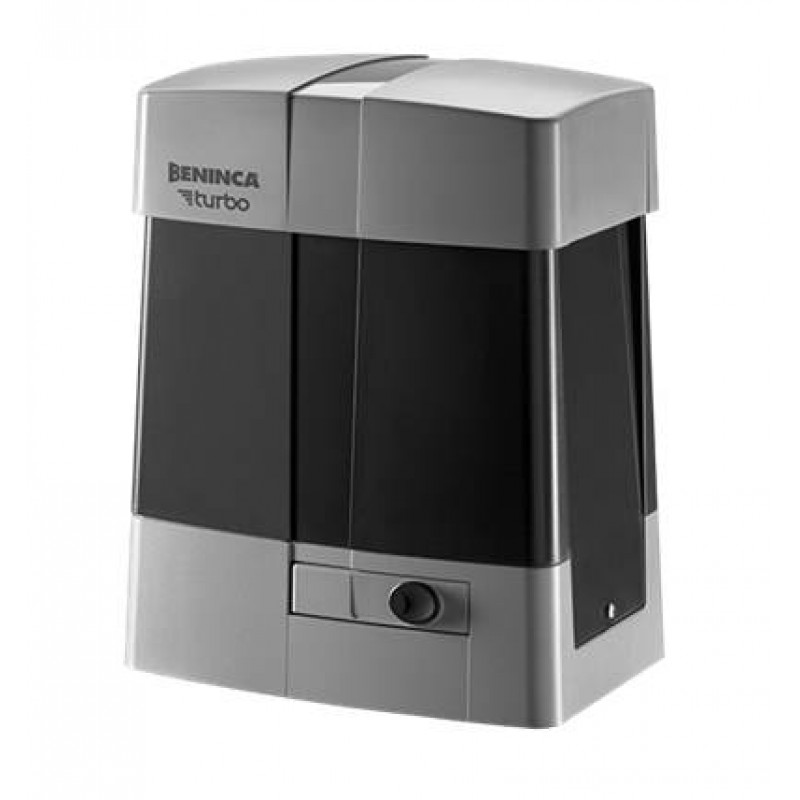

BENINCA BULL1224 TURBO 1200 KG Sliding Gate Motor in UAE

BENINCA BULL1224 TURBO 1200 KG Sliding Gate Motor in Dubai

• The BENINCA BULL1224 TURBO Sliding Gate Motor is a commercial-grade 24Vdc
• automation system designed for sliding gates weighing up to 1200 kg.
• Engineered for heavy-duty and high-speed operation,
• this turbo gear motor achieves opening speeds of up to 24 meters per minute,
• The BULL1224 TURBO uses an advanced encoder system,
• which monitors motor parameters to manage slowing phases,
• track gate movement, and regulate torque according to the gate’s position.
• This intelligent system ensures maximum safety, precision,
• and smooth operation in commercial environments.
• Equipped with a built-in control unit and integrated receiver,
• the system can store up to 512 remote transmitters using Advanced Rolling Code (ARC) technology.
• It is ideal for industrial gates, large residential complexes, condominiums,
• and high-traffic access points throughout Dubai, Sharjah, Abu Dhabi, and the UAE.
• The motor’s robust Italian engineering, combined with oil lubrication and high duty cycle (80%),
• guarantees long-lasting performance even in intensive commercial applications.
• Delivered as a complete ready-to-install kit,
• it offers a professional and reliable solution for heavy sliding gate automation.

BENINCA BULL1224 TURBO Key Features

• High-speed turbo sliding gate motor
• Suitable for gates up to 1200 kg
• 24Vdc motor for commercial use
• Opening speed up to 24 m/min
• Encoder-based safety and precise movement control
• Integrated control unit and receiver
• Stores up to 512 remote controls
• Smooth, fast, and reliable operation
• Ideal for industrial and high-traffic gates

BENINCA BULL1224 TURBO Technical Specifications

• Power Supply: 115 / 230 Vac (50–60 Hz)
• Motor Supply: 24 Vac
• Max Absorbed Current: 3 A
• Maximum Thrust: 390 N
• Opening Speed: 12.5 – 25.5 m/min
• Duty Cycle: 80%
• Protection Level: IP44
• Built-in Control Unit: Yes
• Integrated Receiver: Yes
• Encoder: Yes
• Virtual Encoder: No
• Magnetic Limit Switches: No
• Pinion: M4 Z18
• Lubrication: Oil
• Operating Temperature: -20°C to +50°C
• Maximum Gate Weight: 1200 kg
• Motor Weight: 17.3 kg
• Kit Weight: 20 kg

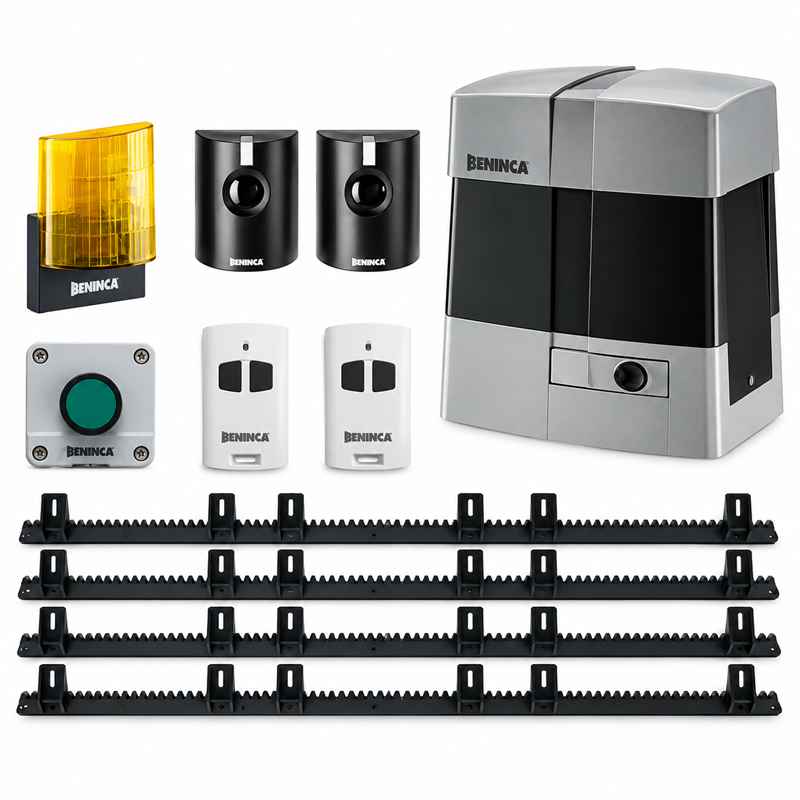

BENINCA BULL1224 TURBO Kit Includes

• 1 × BENINCA BULL1224 TURBO Sliding Gate Motor
• 2 × BENINCA Remote Controls (433.92 MHz)
• 1 × Pair of outdoor photocells
• 1 × Integrated control unit
• 4 × Nylon rack (1 m each)
• 1 × Blinker light
• 1 × Push button

Recommended Applications

• Commercial and industrial sliding gates
• Large condominium entrances
• High-traffic access points
• Industrial warehouses and logistics facilities
• Smart building automation projects

Why Choose BENINCA BULL1224 TURBO in UAE?

• Made in Italy – BENINCA quality
• Turbo gear motor for fast high-capacity gates
• Encoder-based safety and precise torque control
• Perfect for industrial and commercial applications
• High duty cycle (80%) for intensive use
• Complete kit for professional installation
• Reliable performance in UAE climate
