BENINCA BULL624SW 600 KG Sliding Gate Opener in UAE

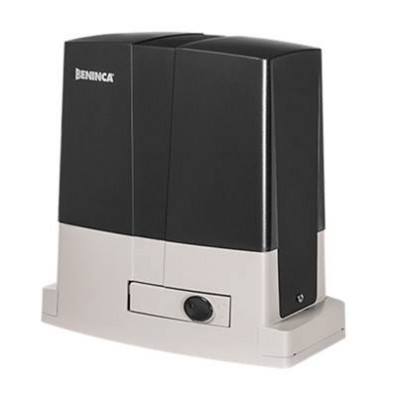

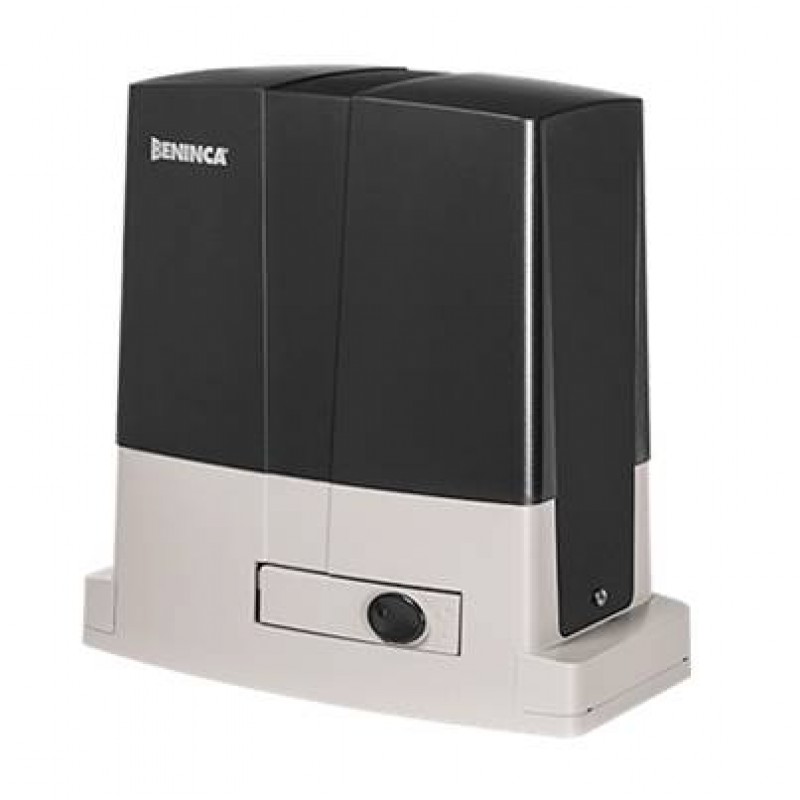

BENINCA BULL624SW 24V Sliding Gate Opener

• The BENINCA BULL624SW Sliding Gate Opener is a premium 24V DC
• automation solution engineered for intensive-use sliding gates up to 600 kg.
• Designed for applications requiring frequent operation, advanced safety, and smart control,
• the BULL624SW is ideal for residential compounds, shared driveways, and high-traffic entrances across the UAE.
• This model features an integrated control unit with virtual encoder,
• enabling intelligent gate movement management through the STC system.
• The virtual encoder optimizes slowing-down phases, tracks movement accurately,
• and manages motor torque according to gate position, ensuring maximum safety and smooth performance.
• The switching power supply (115/230 Vac) reduces energy consumption and extends actuator lifespan.
• In the event of a power failure, operation is guaranteed through integrated making the system highly reliable.
• The BULL624SW also supports amperometry anti-crushing obstacle detection
• and is designed for KNX demotics integration via the X.BE accessory.
• Programming and management can be performed using the Be UP app
• and PRO.UP interface, making it a future-ready smart gate automation solution.

BENINCA BULL624SW Key Features

• 24V DC sliding gate motor for intensive use
• Suitable for gates up to 600 kg
• Virtual encoder with STC system for precise control
• Integrated control unit and receiver (64 transmitters)
• Intelligent slowing-down and torque management
• Battery backup ready (power failure operation)
• Anti-crushing system with amperometry detection
• KNX demotics and smart app compatibility
• Compact, lightweight, and energy-efficient design

BENINCA BULL624SW Technical Specifications

• Power Supply: 230 Vac (50–60 Hz)
• Motor Supply: 24 Vdc
• Max Absorbed Current: 3.2 / 1.7 A
• Maximum Thrust: 715 N
• Opening Speed: 5.5 – 11 m/min
• Duty Cycle: Intensive use
• Protection Level: IP44
• Built-in Control Unit: Yes
• Integrated Receiver: Yes
• Encoder: Virtual encoder
• Magnetic Limit Switches: Yes
• Pinion: M4 Z14
• Lubrication: Grease
• Operating Temperature: -20°C to +50°C
• Maximum Gate Weight: 600 kg
• Motor Weight: 8.0 kg
• Kit Weight: 8.5 kg

BENINCA BULL624SW Complete Kit Includes

• 1 × BENINCA BULL624SW 24V DC gear motor
• 1 × PUPILLA.T adjustable photocells (pair)
• 1 × LAMPY flashing light (12–255 Vac)
• 1 × TO.GO2VA 2-channel remote (433.92 MHz)
• 4 × Nylon rack
• 1 × Push button

Applications

• Residential compounds with frequent gate cycles
• Shared driveways and community entrances
• Smart homes and KNX-integrated properties

Why Choose BENINCA BULL624SW in UAE?

• Made in Italy – premium engineering
• Designed for intensive daily operation
• Advanced safety with virtual encoder & STC system
• Battery backup for uninterrupted access
• Smart control via app & automation systems
• Ideal for UAE climate and high-usage environments
• Available with installation & support across Dubai, Sharjah, Abu Dhabi & all Emirates
