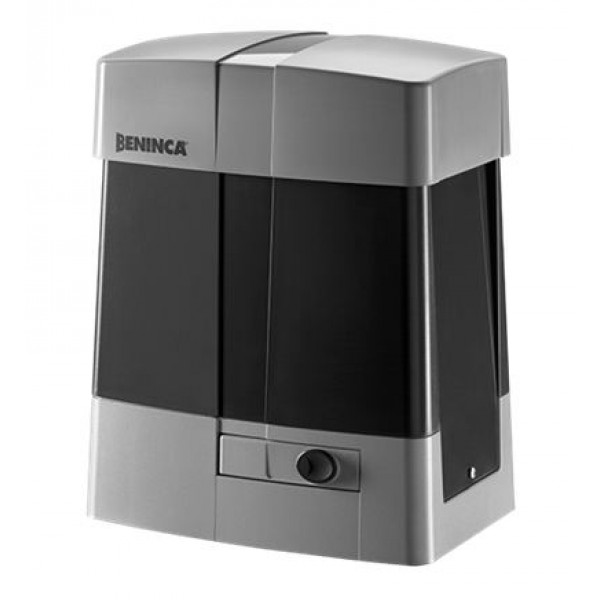

BENINCA BULL20M 2000 KG Sliding Gate Opener in UAE

BENINCA BULL20M 2000 KG Sliding Gate Opener in Dubai

• The BENINCA BULL20M Sliding Gate Opener is a robust and reliable industrial automation solution
• engineered for heavy sliding gates weighing up to 2000 kg. Designed for demanding environments,
• this powerful operator is ideal for industrial facilities, large condominiums,
• commercial entrances, and high-traffic access points across the UAE.
• Powered by a 230V AC motor, the BULL20M features an integrated encoder device
• that guarantees maximum precision during all manoeuvring phases.
• This advanced encoder technology enhances operational safety by constantly monitoring
• gate movement and ensuring smooth, controlled opening and closing cycles.
• The motor includes a built-in control unit and radio receiver,
• capable of storing up to 64 remote transmitters,
• making it perfectly suited for multi-user installations.
• Despite its industrial power, the BENINCA BULL20M delivers quiet and reliable performance,
• ensuring long-term durability and user comfort.
• With its strong mechanical structure, high thrust force, and Italian engineering,
• the BENINCA BULL20M sliding gate motor provides consistent
• and secure operation even under harsh UAE climate conditions.
• Delivered as a complete automation kit, it offers a professional
• and cost-effective solution for heavy sliding gate automation.

BENINCA BULL20M Key Features

• Industrial sliding gate motor for gates up to 2000 kg
• 230V AC power supply
• Built-in encoder for enhanced safety and precision
• Integrated control unit and radio receiver
• Supports up to 64 remote controls
• Quiet, smooth, and reliable gate operation
• Designed for industrial and high-traffic applications
• Heavy-duty Italian construction

BENINCA BULL20M Technical Specifications

• Power Supply: 230 Vac (50–60 Hz)
• Motor Supply: 230 Vac
• Max Absorbed Current: 2.9 A
• Maximum Thrust: 1667 N
• Opening Speed: 10.5 m/min
• Duty Cycle: 40%
• Protection Level: IP44
• Built-in Control Unit: Yes
• Integrated Receiver: Yes
• Encoder: Yes
• Virtual Encoder: No
• Magnetic Limit Switches: No
• Pinion: M4 Z18
• Lubrication: Grease
• Operating Temperature: -20°C to +50°C
• Maximum Gate Weight: 2000 kg
• Motor Weight: 21.1 kg

BENINCA BULL20M Kit Includes

• 1 × BENINCA BULL20M Sliding Gate Opener
• 2 × BENINCA Remote Controls (433.92 MHz)
• 1 × Pair of outdoor photocells
• 1 × Integrated control unit
• 4 × Nylon rack (1 m each)
• 1 × Blinker light
• 1 × Push button

Recommended Applications

• Industrial sliding gates
• Large commercial entrances
• Condominium main gates
• Warehouses & logistics facilities
• High-traffic access control points

Why Choose BENINCA BULL20M in UAE?

• Made in Italy BENINCA reliability
• Designed for very heavy sliding gates
• Encoder-based safety for precise operation
• High thrust force for industrial applications
• Complete kit for professional installation
• Built to withstand UAE weather conditions
• Available across Dubai, Sharjah, Abu Dhabi & all Emirates
