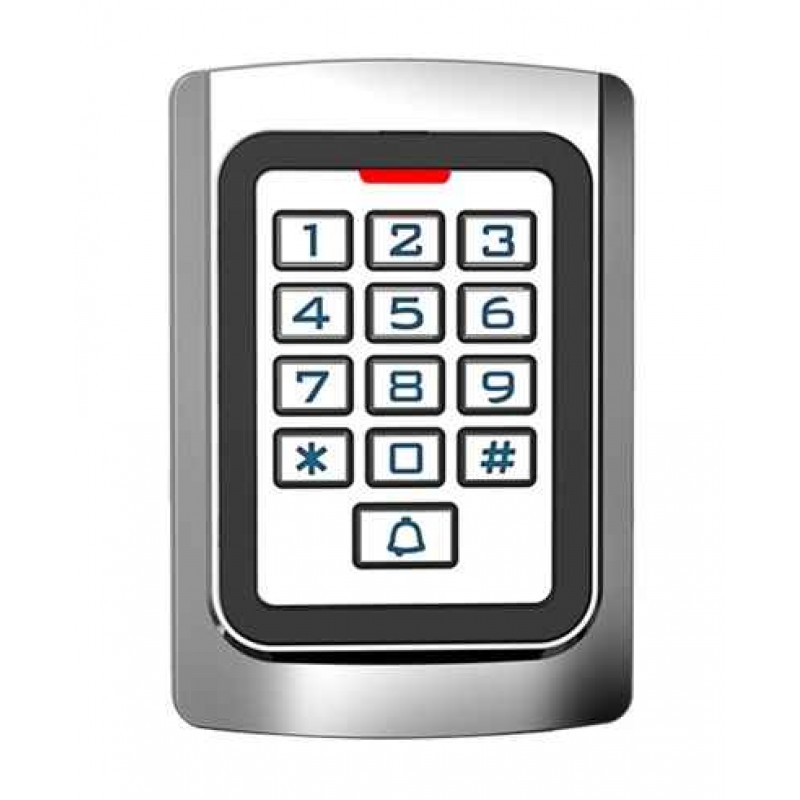

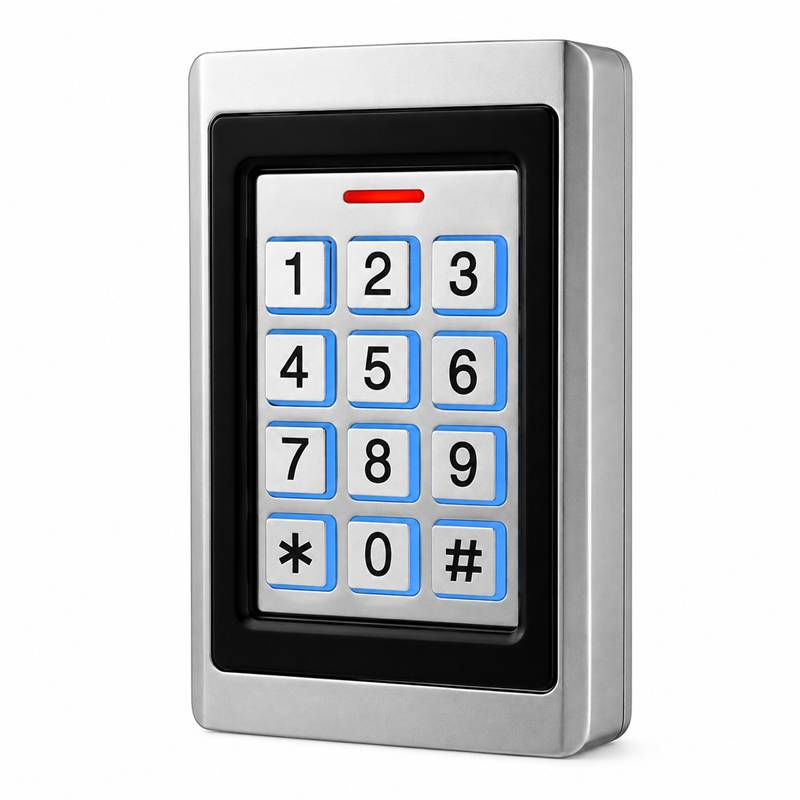

K16EM-W Waterproof RFID Access Control Keypad for Door & Gate Security
The K16EM-W Waterproof IP65 Keyless Access Control Keypad is a professional access control solution designed for residential, commercial, and industrial properties throughout Dubai, Sharjah, Abu Dhabi, and across the UAE. Featuring RFID card access, PIN code authentication, and combined card plus PIN verification, this keypad provides flexible and secure entry management for doors, gates, offices, warehouses, villas, and restricted areas.
With a capacity of up to 2000 users, the K16EM-W supports standalone access control operation as well as reader mode integration with external access control systems. The keypad allows users to select WG26 or WG34 communication protocols, making it compatible with a wide range of security and access management systems.
Built with an IP65 waterproof enclosure, the K16EM-W is designed to withstand harsh outdoor environments, making it ideal for UAE weather conditions including heat, humidity, dust, and rain exposure.
Key Features
- IP65 waterproof access control keypad
- Supports up to 2000 users
- RFID card and PIN code authentication
- Card + PIN dual verification mode
- Standalone access control mode
- WG26 and WG34 reader mode support
- Relay toggle function
- Adjustable door opening time
- Built-in short circuit protection
- Suitable for indoor and outdoor installation
Access Methods
- RFID Card Access
- PIN Password Access
- Card + PIN Combination Access
Technical Specifications
- Model: K16EM-W
- Card Type: EM RFID Card
- User Capacity: 2000 Users
- Reading Distance: 3~6cm
- Working Voltage: DC12V ±10%
- Standby Current: ≤30mA
- Electric Lock Output: ≤1A
- Door Opening Time: 0~99 Seconds Adjustable
- Communication: WG26 / WG34
- Operating Modes: Standalone Mode / Reader Mode
Environmental Specifications
- Protection Rating: IP65 Waterproof
- Operating Temperature: -45°C to +60°C
- Humidity Range: 10% to 90% RH
- Outdoor Installation Supported
- Short Circuit Protection: ≤100us
Physical Specifications

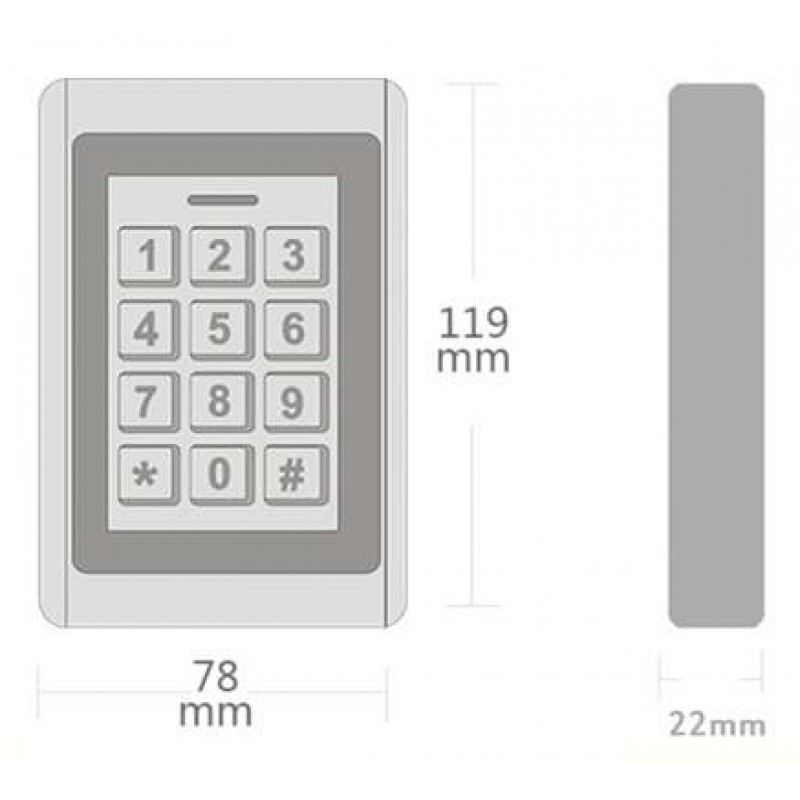

- Dimensions: 119 × 78 × 22 mm
- Compact Keypad Design
- Weatherproof Construction
Operating Modes
- Standalone Access Control Mode
- Pure Reader Mode
- Relay Toggle Mode
- WG26 Communication Mode
- WG34 Communication Mode
Applications
- Villa Access Control Systems
- Apartment Buildings
- Office Entrances
- Commercial Buildings
- Warehouse Security Doors
- Industrial Facilities
- Automatic Gate Systems
- Restricted Access Areas
- Parking Access Control
- Staff Entry Systems
Benefits
- Waterproof outdoor operation
- Flexible authentication methods
- Large user capacity
- Easy installation and programming
- Supports external access control systems
- Reliable long-term performance
- Low power consumption
- Ideal for UAE climate conditions
Package Includes
- 1 × K16EM-W Waterproof Access Control Keypad
- Mounting Accessories
- Installation Guide
- User Manual
Why Choose the K16EM-W Access Control Keypad?
- IP65 waterproof protection
- Supports 2000 users
- Card and PIN access options
- WG26 and WG34 compatibility
- Standalone and reader operating modes
- Adjustable door opening time
- Suitable for residential and commercial projects
- Professional support available across UAE
Frequently Asked Questions
How many users can the keypad store?
The K16EM-W supports up to 2000 users.
Is the keypad waterproof?
Yes. The keypad features an IP65 waterproof enclosure suitable for outdoor installation.
Which access methods are supported?
The keypad supports RFID card access, PIN password access, and card plus PIN combination verification.
Can it operate as a Wiegand reader?
Yes. The device supports both WG26 and WG34 reader modes.
Is it suitable for UAE outdoor environments?
Yes. The IP65 design and operating temperature range of -45°C to +60°C make it suitable for UAE weather conditions.
