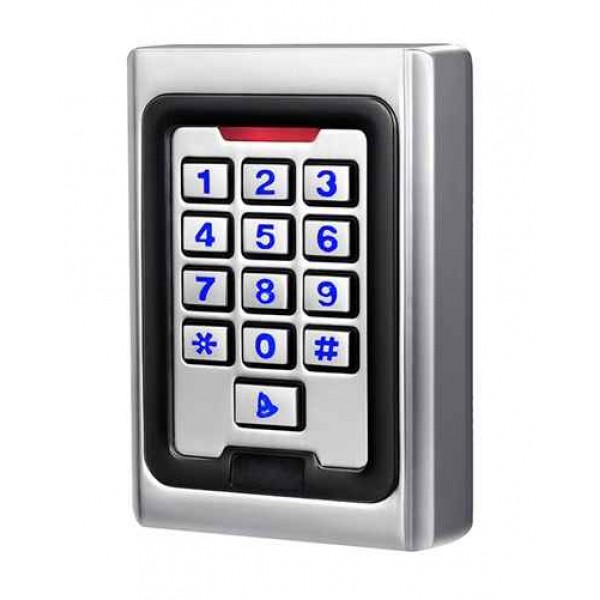

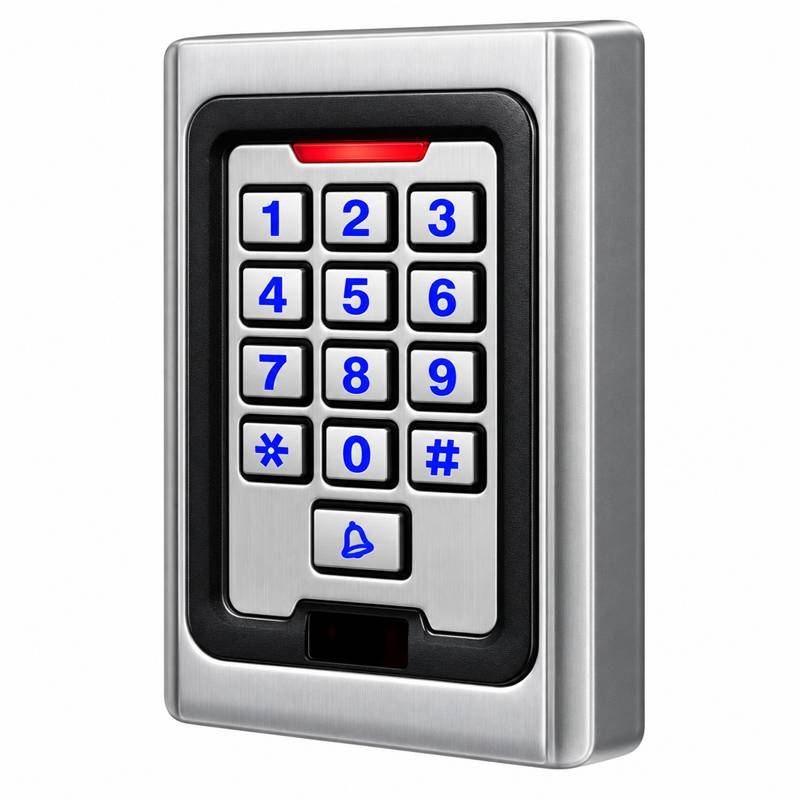

RFID Card & PIN Access Control Keypad for Outdoor Security Systems
The Waterproof IP68 Standalone Access Control Keypad is a professional security solution designed for villas, offices, apartment buildings, warehouses, factories, and commercial properties throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Featuring RFID card authentication, PIN code access, and card plus PIN verification, this standalone access control keypad provides secure and convenient entry management without requiring a separate access controller. Its IP68 waterproof rating makes it ideal for outdoor installations exposed to harsh weather conditions.
The keypad supports up to 2000 users and includes full programming directly from the keypad, making user management simple and efficient. With Wiegand 26-bit input and output support, it can operate as a standalone controller or integrate with larger access control systems.
Built with a digital backlit keypad, status LEDs, alarm output, and multiple wiring options, this access control reader offers advanced security features for residential and commercial access management applications.
Key Features
- IP68 waterproof outdoor design
- Supports 2000 users
- EM 125KHz RFID card reader
- PIN password authentication
- Card + PIN dual verification
- Full programming from keypad
- Wiegand 26-bit input and output
- Digital backlit keypad
- Adjustable relay and alarm time
- Supports external reader and alarm devices
Access Methods
- RFID Card Access
- PIN Code Access
- Card + PIN Combination Access
Technical Specifications
- Card Type: EM 125KHz RFID Card
- User Capacity: 2000 Users
- Card Reading Distance: 3–6 cm
- Operating Voltage: DC 12V ±10%
- Active Current: Less than 60mA
- Idle Current: 25 ±5mA
- Lock Output Load: Maximum 3A
- Alarm Output Load: Maximum 20A
- Operating Temperature: -45°C to +60°C
- Operating Humidity: 10%–90% RH
Wiegand & System Integration
- Wiegand 26-bit Input
- Wiegand 26-bit Output
- External Reader Support
- Standalone Access Control Mode
- Access Control System Integration
Adjustable Functions
- Door Relay Time: 0–99 Seconds
- Alarm Time: 0–3 Minutes
- User Programming via Keypad
- Access Control Configuration
Status Indicators
- Red LED Indicator
- Yellow LED Indicator
- Green LED Indicator
- Digital Backlit Keypad
Wiring Connections
- Electric Lock
- Exit Button
- External Alarm
- External RFID Reader
Applications
- Villa Access Control Systems
- Residential Buildings
- Commercial Offices
- Apartment Complexes
- Warehouse Security Doors
- Industrial Facilities
- Automatic Gates
- Staff Access Management
- Restricted Security Areas
- Building Access Control Systems
Benefits
- IP68 waterproof protection
- Large 2000-user capacity
- Multiple authentication methods
- Simple installation and programming
- Low power consumption
- Reliable outdoor operation
- Flexible system integration
- Ideal for UAE weather conditions
Package Includes
- 1 × Waterproof IP68 Access Control Keypad
- Mounting Accessories
- Connection Guide
- User Manual
Why Choose This Access Control Keypad?
- IP68 waterproof rating
- Supports 2000 users
- Card, PIN, and Card + PIN access
- WG26 input/output support
- Digital backlit keypad
- Built-in alarm functionality
- Suitable for residential and commercial use
- Professional support available across UAE
Frequently Asked Questions
How many users can be stored?
The keypad supports up to 2000 users.
Is the keypad waterproof?
Yes. It conforms to IP68 waterproof standards and is suitable for outdoor installation.
Which card type is supported?
The keypad supports EM 125KHz RFID cards.
Can it operate with an external reader?
Yes. The keypad supports Wiegand 26-bit input and can connect to external RFID readers.
Can users unlock using both card and password?
Yes. The system supports card-only, PIN-only, and card plus PIN authentication modes.
