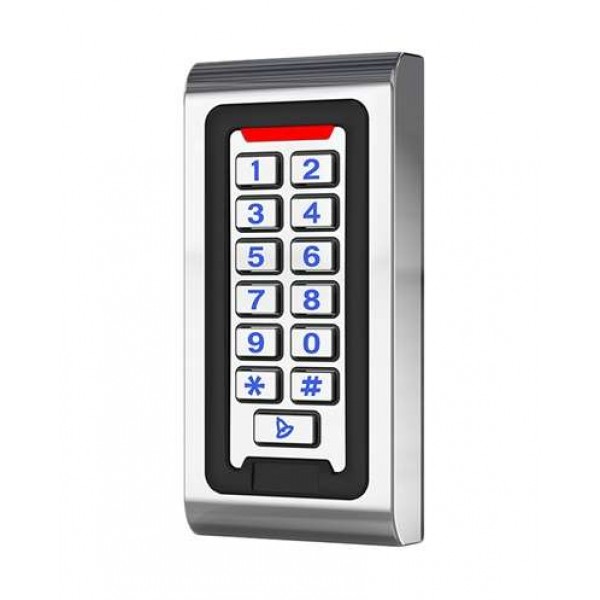

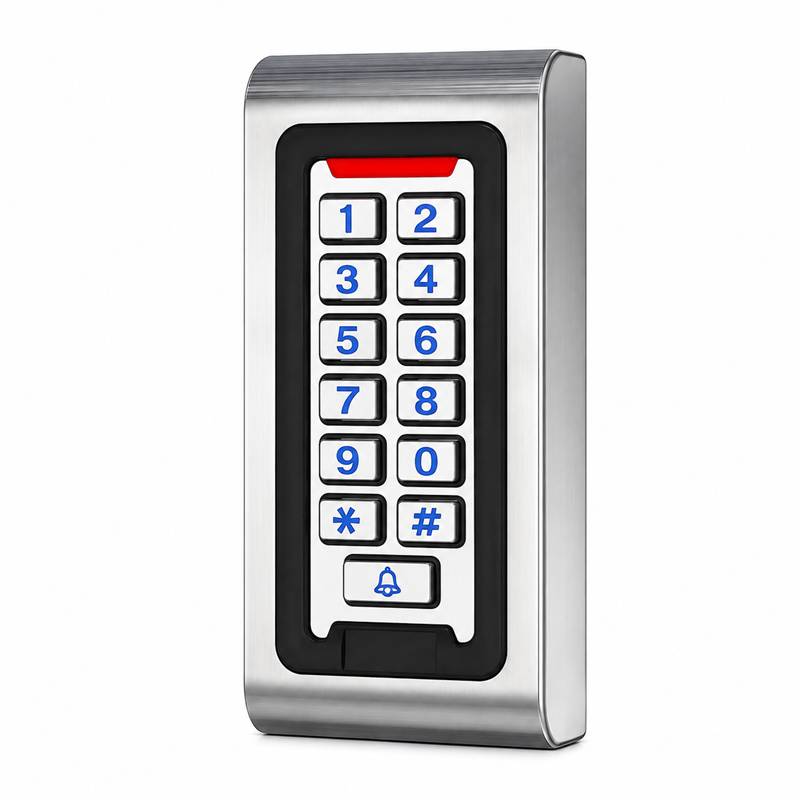

Outdoor Metal RFID Access Control Reader with Card & PIN Authentication
The Metal Waterproof RFID Access Control Keypad is a professional security and access management solution designed for villas, offices, warehouses, apartment buildings, commercial properties, and industrial facilities throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Featuring a durable anti-vandal metal housing, illuminated keypad, and support for RFID cards and PIN codes, this standalone access controller delivers secure and convenient door access management. The system supports EM or MIFARE cards depending on the selected model and offers multiple authentication methods including card only, password only, or card plus password verification.
Designed for high-security applications, the keypad supports up to 2000 card users and 2000 password users while offering advanced features such as door magnetic alarms, anti-tamper protection, exit button connectivity, doorbell integration, short-circuit protection, and Wiegand communication.
The waterproof version (S601-W) is suitable for outdoor installations and provides reliable performance in harsh UAE weather conditions including heat, humidity, and dust.
Key Features
- Heavy-duty metal anti-vandal housing
- Supports EM or MIFARE RFID cards
- RFID card, PIN code, or card + PIN access
- Backlit keypad for night operation
- Standalone access control system
- Wiegand WG26 input and output
- Supports up to 2000 users
- Doorbell button and interface
- Built-in anti-tamper alarm
- Short-circuit protection
Authentication Methods
- RFID Card Access
- Password Access
- Card + Password Combination Access
Technical Specifications
- Card Type: EM Card or MIFARE Card
- User Capacity: 2000 Card Users
- Password Capacity: 2000 Password Users
- Card Reading Distance: 5~8cm
- Working Voltage: DC12V ±10%
- Standby Current: ≤30mA
- Lock Output: ≤3A
- Alarm Output: ≤20A
- Door Opening Time: 0~99 Seconds Adjustable
- Output Short Circuit Protection: ≤100μS
- Communication: WG26 Input / Output
Security Features
- Anti-Tamper Alarm
- Door Magnetic Alarm Function
- Independent User Passwords
- Output Short Circuit Protection
- Security Level Configuration
- Exit Button Support
- External Doorbell Interface
Environmental Specifications
- Operating Temperature: -45°C to +60°C
- Humidity Range: 10% to 90%
- Model S601: Standard Version
- Model S601-W: IP68 Waterproof Version
- Suitable for Indoor & Outdoor Installations
Physical Specifications
- Dimensions: 120 × 56 × 18 mm
- Metal Construction
- Backlit Keypad
- Compact Slim Design
Applications
- Villa Access Control Systems
- Apartment Buildings
- Commercial Offices
- Warehouse Security Doors
- Industrial Facilities
- Automatic Gate Systems
- Restricted Access Areas
- Staff Entry Management
- Residential Compounds
- Building Security Systems
Benefits
- Strong anti-vandal protection
- Multiple authentication options
- Large user capacity
- Reliable outdoor performance
- Enhanced security features
- Easy installation and maintenance
- Suitable for UAE climate conditions
- Professional-grade access control solution
Package Includes
- 1 × Metal RFID Access Control Keypad
- Mounting Accessories
- Installation Guide
- User Manual
Why Choose This Metal Access Control Keypad?
- Anti-vandal metal construction
- Supports 2000 users
- EM and MIFARE card compatibility
- Backlit keypad for easy operation
- WG26 communication support
- Advanced alarm and protection functions
- IP68 waterproof model available
- Professional support available across UAE
Frequently Asked Questions
How many users can be stored?
The system supports up to 2000 card users and 2000 password users.
Which card types are supported?
Depending on the model, the keypad supports EM cards or MIFARE cards.
Is the keypad waterproof?
The S601-W model features IP68 waterproof protection for outdoor installation.
Can users unlock with both card and password?
Yes. The keypad supports card-only, password-only, and card plus password authentication.
Does it support Wiegand communication?
Yes. The keypad supports WG26 input and output for integration with access control systems.
