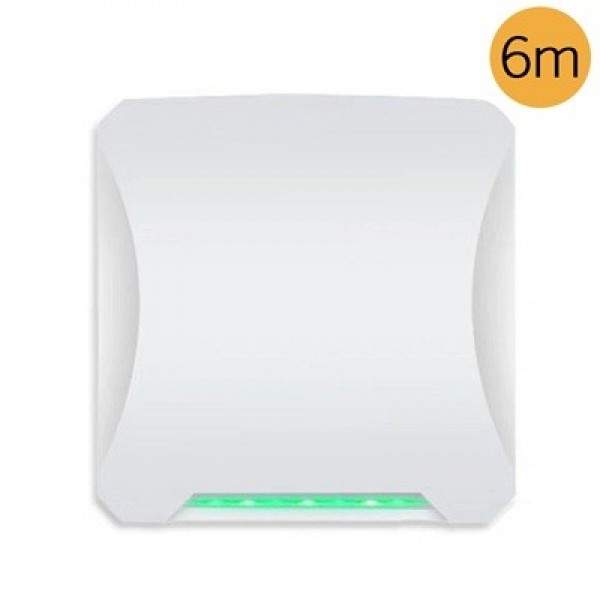

UHF-202406 Long Range RFID Reader for Vehicle Access & Parking Systems
The UHF-202406 UHF RFID Long Distance Reader is a professional integrated RFID reader designed for vehicle access control, parking management systems, gated communities, logistics centers, warehouses, commercial facilities, and industrial applications throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Built with advanced ARM7 processing technology and a high-performance UHF module, the UHF-202406 provides reliable RFID identification at distances of up to 6 meters. Supporting the ISO18000-6C (EPC Gen2) protocol, the reader delivers fast tag recognition, excellent anti-interference performance, and stable long-range operation.
The integrated 8dBi circular polarization antenna ensures accurate tag detection and consistent performance, making it ideal for vehicle access systems, parking barriers, fleet management, warehouse automation, and RFID tracking applications. With support for multiple operating modes and simultaneous reading of up to 50 RFID tags, the reader provides efficient and intelligent access management solutions.
The rugged waterproof housing and wide operating temperature range make the UHF-202406 suitable for outdoor installation in demanding UAE environmental conditions, including heat, humidity, and dust.
Key Features
- Long-range RFID reading up to 6 meters
- Supports ISO18000-6C (EPC Gen2) RFID tags
- Built-in 8dBi circular polarization antenna
- Reads up to 50 tags simultaneously
- Fast RFID data processing
- Low power consumption design
- Multi-tag recognition capability
- Waterproof outdoor housing
- Adjustable RF output power
- Multiple operating modes available
Technical Specifications
- Model: UHF-202406
- Processor: ARM7 + UHF Module
- Technology: Passive UHF RFID
- Frequency: 920~925MHz
- Identification Distance: Up to 6 Meters
- RF Power: 0~30dBm (Software Adjustable)
- Tag Protocol: ISO18000-6C (EPC Gen2)
- Antenna: 8dBi Circular Polarization (Built-in)
- Working Voltage: +12V DC
- Power Consumption: 1W
- Group Reading Capacity: Up to 50 Tags
- Frequency Hopping: Spectrum Hopping Technology
Operating Modes
- Automatic Reading Mode
- Trigger Reading Mode
- Interactive Reading Mode
- Continuous Reading Mode
Environmental Specifications
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +125°C
- Working Humidity: 20% ~ 95%
- Waterproof Outdoor Design
Dimensions & Weight
- Dimensions: 180 × 180 × 60 mm
- Optional Housing: 265 × 185 × 70 mm
- Net Weight: 550g
- Gross Weight: 1100g
Applications
- Vehicle Access Control Systems
- Parking Barrier Systems
- Residential Compounds
- Gated Communities
- Warehouse Management
- Retail Logistics Centers
- Fleet Management Systems
- Industrial Facilities
- RFID Asset Tracking
- Automatic Gate Automation Systems
Benefits
- Hands-free vehicle access control
- Fast and accurate RFID identification
- Supports multiple vehicles simultaneously
- Reliable outdoor performance
- Low power consumption
- Easy integration with access control systems
- Suitable for UAE weather conditions
- Reduces entry and exit congestion
Package Includes
- 1 × UHF-202406 RFID Long Distance Reader
- Mounting Bracket
- Connection Accessories
- User Manual
Why Choose the UHF-202406 RFID Reader?
- Up to 6-meter RFID reading distance
- Professional EPC Gen2 RFID technology
- Supports up to 50 tags simultaneously
- Built-in 8dBi antenna
- Waterproof outdoor design
- Ideal for parking and access control systems
- Reliable operation in UAE conditions
- Professional installation support available
Frequently Asked Questions
What is the maximum reading distance?
The UHF-202406 can identify compatible RFID tags from distances of up to 6 meters depending on tag quality and installation conditions.
How many tags can be read at the same time?
The reader supports simultaneous identification of up to 50 RFID tags.
Which RFID protocol is supported?
The reader supports ISO18000-6C (EPC Gen2) UHF RFID tags.
Is it suitable for parking barrier systems?
Yes. The UHF-202406 is widely used with parking barriers, vehicle access control systems, and automatic gates.
Can the reader be installed outdoors?
Yes. The waterproof housing and industrial-grade design make it suitable for outdoor installation in UAE weather conditions.
