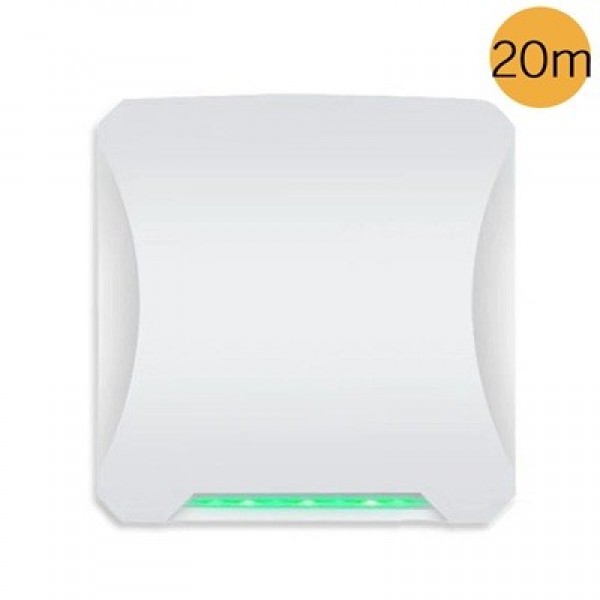

Long Range UHF RFID Reader for Vehicle Access Control, Parking & Logistics Systems
The UHF RFID Long Distance Reader 20 Meter is a professional-grade RFID identification solution designed for vehicle access control, parking management systems, logistics centers, warehouses, industrial facilities, gated communities, and commercial properties throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Built with advanced ARM7 processing technology and high-performance UHF RFID architecture, this integrated reader provides fast, stable, and accurate RFID tag recognition at distances of up to 20 meters. Supporting ISO18000-6C (EPC Gen2) protocol tags, it delivers reliable long-range performance for demanding vehicle and asset identification applications.
The reader features a powerful built-in 9dBi circular polarization antenna and adjustable RF output power up to 33dBm, ensuring excellent reading performance even in challenging environments. With the ability to identify up to 200 RFID tags simultaneously, it is ideal for high-traffic entrances, vehicle tracking systems, parking barriers, and logistics operations.
Its waterproof housing and industrial-grade construction make it suitable for outdoor installations and continuous operation under harsh UAE weather conditions, including heat, dust, humidity, and intensive daily use.
Key Features
- Long-range RFID reading up to 20 meters
- Supports ISO18000-6C (EPC Gen2) RFID tags
- Built-in 9dBi circular polarization antenna
- Reads up to 200 RFID tags simultaneously
- Fast tag wake-up recognition technology
- Adjustable RF output power up to 33dBm
- Multi-tag and multi-region reading support
- Frequency hopping anti-interference technology
- Waterproof outdoor housing
- Low power, stable operation
Technical Specifications
- Technology: Passive UHF RFID
- Processor: ARM7 + UHF Module
- Operating Frequency: 920~925MHz
- Identification Distance: Up to 20 Meters
- RF Output Power: 0~33dBm Adjustable
- Tag Protocol: ISO18000-6C (EPC Gen2)
- Antenna: 9dBi Circular Polarization (Built-in)
- Working Voltage: +12V DC
- Power Consumption: 12W
- Multi-Tag Reading Capacity: Up to 200 Tags
- Frequency Hopping: Spectrum Hopping Technology
Operating Modes
- Automatic Reading Mode
- Trigger Reading Mode
- Interactive Reading Mode
- Continuous Reading Mode
Environmental Specifications
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +125°C
- Working Humidity: 20% to 95%
- Waterproof Outdoor Design
- Industrial Grade Construction
Dimensions & Weight
- Dimensions: 260 × 260 × 70 mm
- Optional Housing: 355 × 260 × 80 mm
- Net Weight: 2400g
- Gross Weight: 3700g
Applications
- Vehicle Access Control Systems
- Parking Barrier Systems
- Gated Communities
- Commercial Buildings
- Warehouses and Distribution Centers
- Logistics Management Systems
- Fleet Management Solutions
- RFID Asset Tracking
- Industrial Automation
- Smart Parking Systems
Benefits
- Hands-free vehicle identification
- High-speed RFID recognition
- Long-distance reading capability
- Supports high-volume traffic environments
- Excellent outdoor performance
- Easy integration with access control systems
- Reduces entrance congestion
- Reliable operation in UAE climate conditions
Package Includes
- 1 × UHF RFID Long Distance Reader
- Mounting Bracket
- Connection Accessories
- User Manual
Why Choose This 20 Meter RFID Reader?
- Extended reading range up to 20 meters
- Professional EPC Gen2 RFID technology
- Supports up to 200 tags simultaneously
- Powerful built-in 9dBi antenna
- Industrial-grade waterproof design
- Ideal for vehicle access and logistics systems
- Reliable operation in UAE environments
- Professional installation and support available
Frequently Asked Questions
What is the maximum reading distance?
The reader can identify compatible UHF RFID tags from distances of up to 20 meters depending on tag quality and installation conditions.
How many RFID tags can be read simultaneously?
The system supports simultaneous identification of up to 200 RFID tags.
Which RFID protocol is supported?
The reader supports ISO18000-6C (EPC Gen2) UHF RFID electronic tags.
Can it be used for parking barrier systems?
Yes. The reader is widely used with parking barriers, automatic gates, vehicle access control systems, and smart parking solutions.
Is it suitable for outdoor installations in the UAE?
Yes. The waterproof design and industrial-grade construction ensure reliable performance in UAE weather conditions.
