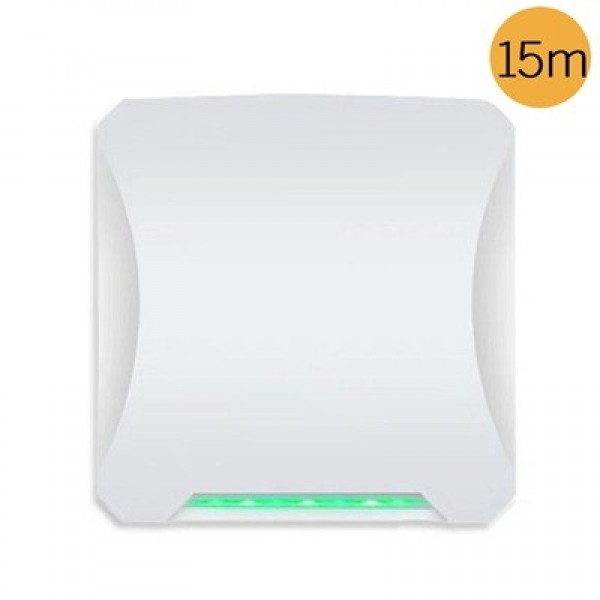

Long Range UHF RFID Reader for Vehicle Access Control & Parking Systems
The UHF RFID Long Distance Reader 15 Meter is a professional-grade RFID access control solution designed for vehicle identification, parking management systems, gated communities, logistics centers, warehouses, industrial facilities, and commercial properties throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Built with advanced ARM7 processing technology and high-performance UHF RFID architecture, this integrated reader delivers stable and accurate tag recognition at distances of up to 15 meters. Supporting the ISO18000-6C (EPC Gen2) standard, it offers outstanding reading performance, fast identification speeds, and reliable operation even in demanding environments.
The integrated 8dBi circular polarization antenna and adjustable RF power up to 33dBm ensure excellent long-range performance. With the ability to identify up to 500 RFID tags simultaneously, this reader is ideal for high-traffic vehicle access control applications, parking barriers, fleet management systems, and logistics operations.
Designed with a waterproof enclosure and industrial-grade components, the reader is suitable for outdoor installations and can withstand harsh UAE weather conditions including heat, dust, and humidity.
Key Features
- Long-range RFID reading up to 15 meters
- Supports ISO18000-6C (EPC Gen2) RFID tags
- Reads up to 500 RFID tags simultaneously
- Built-in 8dBi circular polarization antenna
- Adjustable RF output power up to 33dBm
- Fast and accurate tag recognition
- Frequency hopping technology
- Waterproof outdoor housing
- Low power consumption
- Suitable for vehicle access control systems
Technical Specifications
- Technology: UHF Passive RFID
- Processor: ARM7 + UHF Module
- Operating Frequency: 920~925MHz
- Identification Distance: Up to 15 Meters
- RF Output Power: 0~33dBm Adjustable
- Tag Protocol: ISO18000-6C (EPC Gen2)
- Antenna: 8dBi Circular Polarization (Built-in)
- Working Voltage: +12V DC
- Power Consumption: 5W
- Multi-Tag Reading Capacity: Up to 500 Tags
- Frequency Hopping: Spectrum Hopping Technology
Operating Modes
- Automatic Reading Mode
- Trigger Reading Mode
- Interactive Reading Mode
- Continuous Reading Mode
Environmental Specifications
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +125°C
- Working Humidity: 20% to 95%
- Waterproof Outdoor Design
- Industrial Grade Construction
Dimensions & Weight
- Dimensions: 180 × 180 × 60 mm
- Optional Housing: 265 × 185 × 70 mm
- Net Weight: 550g
- Gross Weight: 1100g
Applications
- Vehicle Access Control Systems
- Parking Gate Barrier Systems
- Residential Communities
- Commercial Buildings
- Warehouses and Logistics Centers
- Industrial Facilities
- Fleet Management Systems
- RFID Vehicle Tracking
- Container Yard Management
- Smart Parking Solutions
Benefits
- Hands-free vehicle identification
- Fast and efficient access control
- Reduces traffic congestion
- Supports high-volume vehicle entry
- Reliable long-distance operation
- Easy integration with access control systems
- Suitable for UAE outdoor environments
- Low maintenance operation
Package Includes
- 1 × UHF RFID Long Distance Reader
- Mounting Bracket
- Connection Accessories
- User Manual
Why Choose This 15 Meter RFID Reader?
- Extended 15-meter reading range
- Supports up to 500 RFID tags simultaneously
- Professional EPC Gen2 RFID technology
- Built-in high-gain antenna
- Waterproof industrial design
- Ideal for parking and vehicle access systems
- Reliable performance in UAE climate
- Professional technical support available
Frequently Asked Questions
What is the maximum reading distance?
The reader can identify compatible UHF RFID tags from distances of up to 15 meters depending on installation conditions and tag quality.
How many tags can be read simultaneously?
The reader supports simultaneous identification of up to 500 RFID tags.
Which RFID standard is supported?
The reader supports ISO18000-6C (EPC Gen2) UHF RFID tags.
Can this reader be used with parking barriers?
Yes. It is widely used for parking management systems, automatic barriers, gated communities, and vehicle access control solutions.
Is it suitable for outdoor installation in the UAE?
Yes. The waterproof design and industrial-grade construction ensure reliable performance in UAE weather conditions.
