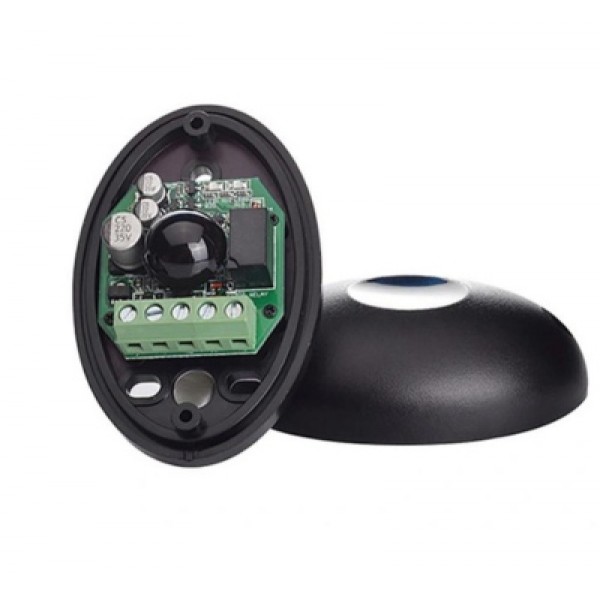

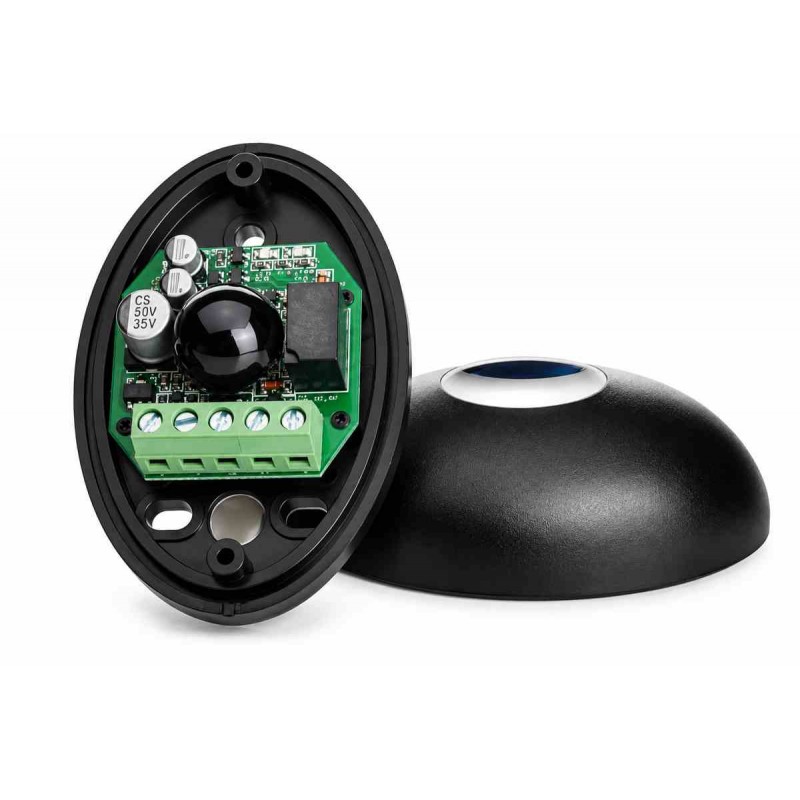

15 Meter Infrared Safety Beam Sensor for Automatic Gates and Barriers
The Automatic Gate Infrared Photocell Sensor is a professional safety device designed for automatic sliding gates, swing gates, garage door openers, parking barriers, rolling shutter systems, and access control applications throughout Dubai, Abu Dhabi, Sharjah, and across the UAE.
Using advanced infrared optical sensing technology, the photocell continuously monitors the gate opening area and instantly detects vehicles, people, or obstacles crossing the infrared beam. When an obstruction is detected, the gate controller can stop or reverse movement to improve safety and prevent accidents.
Featuring a detection range of up to 15 meters, this infrared safety beam sensor delivers reliable performance for residential, commercial, and industrial gate automation systems. Its compact housing and weather-resistant design make it suitable for outdoor installations in harsh UAE environmental conditions.
The sensor operates with AC or DC power supplies from 12V to 24V, allowing easy integration with most automatic gate motors, garage door operators, barrier systems, and access control panels.
Key Features
- Infrared photocell safety sensor
- 15 meter detection range
- Advanced optical sensing technology
- Automatic obstacle detection
- Compact and durable design
- Low power consumption
- Weather-resistant construction
- Suitable for indoor and outdoor installations
- Fast response performance
- Easy installation and alignment
Technical Specifications
- Product Name: Automatic Gate Infrared Photocell Sensor
- Sensor Type: Optical Infrared Sensor
- Usage: Position Sensor
- Theory: Optical Sensor
- Output: Digital Sensor
- Detection Range: 15 Meters
- Infrared Wavelength: 940nm
Electrical Specifications
- Power Supply: AC/DC 12V – 24V
- Working Current: 40mA
- Receiver Current (Rx): 15mA
- Transmitter Current (Tx): 30mA
- Relay Output: 1A Max / 36V
Environmental Specifications
- Operating Temperature: -25°C to +55°C
- Suitable for Outdoor Installations
- Reliable Performance in UAE Climate
- Heat and Weather Resistant Design
Physical Specifications
- Dimensions: 49.2 × 76 × 21.6 mm
- Compact Housing Design
- Wall Mount Installation
Applications
- Automatic Sliding Gates
- Automatic Swing Gates
- Garage Door Openers
- Parking Gate Barriers
- Rolling Shutter Systems
- Industrial Doors
- Access Control Systems
- Warehouse Entrances
- Commercial Buildings
- Security Gate Automation
Benefits
- Protects people and vehicles
- Prevents gate collisions
- Improves automation safety
- Reliable long-range detection
- Fast obstacle recognition
- Compatible with most gate controllers
- Low maintenance operation
- Long service life
Compatible Systems
- BFT Gate Motors
- NICE Gate Motors
- CAME Gate Motors
- FAAC Gate Motors
- BENINCA Gate Motors
- LIFE Gate Motors
- Garage Door Operators
- Parking Barrier Systems
Package Includes
- 1 × Infrared Photocell Sensor Set
- Transmitter Unit
- Receiver Unit
- Mounting Accessories
Why Choose This Infrared Photocell Sensor?
- 15-meter detection distance
- Reliable infrared safety protection
- Compact and durable construction
- Compatible with major gate motor brands
- Suitable for residential and industrial use
- Easy installation and setup
- Low power consumption
- Professional support available across UAE
Frequently Asked Questions
What is the purpose of a gate photocell sensor?
The photocell detects obstacles such as vehicles and pedestrians and signals the gate controller to stop or reverse movement for safety.
What is the maximum detection range?
The sensor provides a maximum detection distance of up to 15 meters.
Can it be installed outdoors?
Yes. The sensor is designed for outdoor gate automation and access control applications.
What power supply does it require?
The photocell operates on AC12V-24V or DC12V-24V power supplies.
Is it compatible with all gate motors?
The sensor is compatible with most automatic gate motors, garage door operators, and barrier control systems that support safety photocell inputs.
