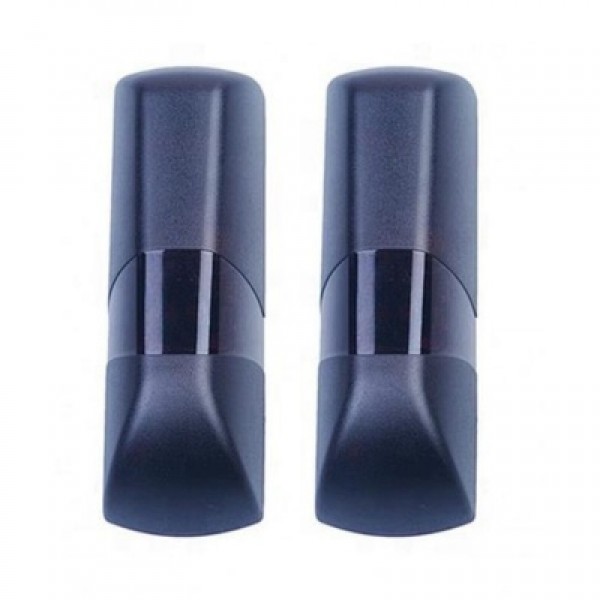

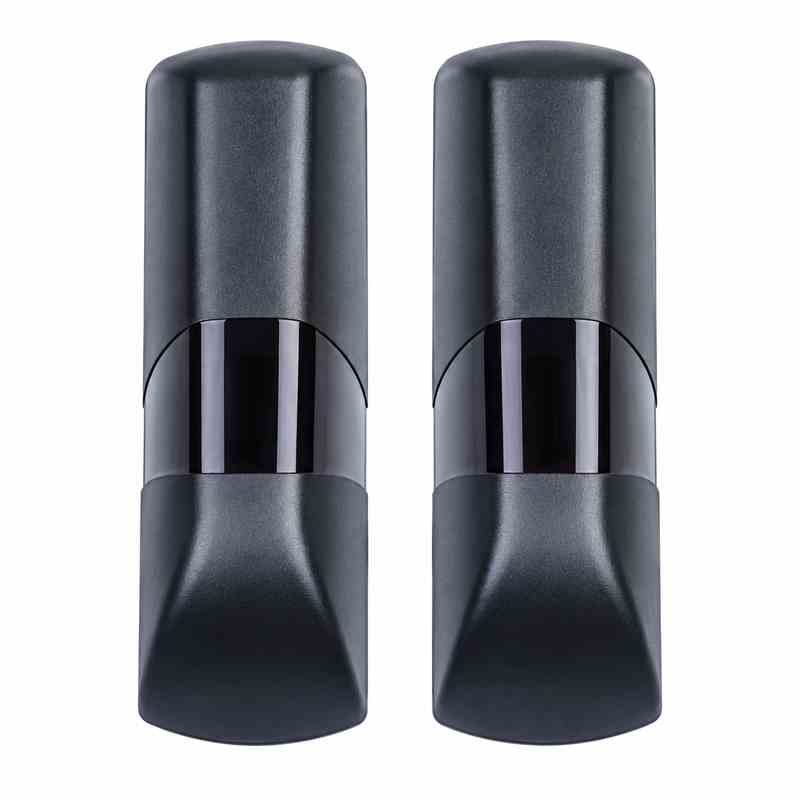

Infrared Safety Beam Sensor for Automatic Gates & Barriers
The Automatic Gates Infrared Photocell Sensor is a professional safety device designed to protect people, vehicles, and property during the operation of automatic gates, garage doors, parking barriers, and access control systems. Suitable for residential, commercial, and industrial installations throughout Dubai, Abu Dhabi, Sharjah, and across the UAE.
Using advanced infrared optical sensing technology, the sensor continuously monitors the gate opening area and immediately detects obstacles crossing the infrared beam. When an object, vehicle, or person interrupts the beam, the control system can stop or reverse gate movement to prevent accidents and damage.
With a detection range of up to 15 meters, this infrared photocell sensor provides reliable and accurate obstacle detection for automatic sliding gates, swing gates, garage door openers, boom barriers, and industrial door systems.
The compact weather-resistant design ensures dependable operation under harsh UAE weather conditions, including heat, humidity, dust, and outdoor exposure.
Key Features
- Infrared photocell safety sensor
- 15-meter detection range
- Advanced optical sensing technology
- Automatic obstacle detection
- Suitable for gate safety protection
- Compact outdoor design
- Low power consumption
- Digital relay output
- Fast response operation
- Easy installation and alignment
Technical Specifications
- Product Type: Infrared Photocell Sensor
- Usage: Position Sensor
- Theory: Optical Sensor
- Output Type: Digital Sensor
- Detection Range: 15 Meters
- Wave Length: 940nm
- Relay Output: 1A Max / 36V
Electrical Specifications
- Power Supply: DC12V-24V / AC12V-24V
- Working Current: 40mA
- Receiver Current (Rx): 15mA
- Transmitter Current (Tx): 30mA
- Relay Output Capacity: 1A Max 36V
Environmental Specifications
- Operating Temperature: -25°C to +55°C
- Suitable for Outdoor Installations
- Weather Resistant Design
- Reliable Performance in UAE Climate
Physical Specifications
- Dimensions: 49.2 × 76 × 21.6 mm
- Compact Installation Design
- Lightweight Construction
Applications
- Automatic Sliding Gates
- Automatic Swing Gates
- Garage Door Openers
- Parking Gate Barriers
- Industrial Doors
- Rolling Shutter Systems
- Warehouse Entrances
- Access Control Systems
- Commercial Buildings
- Security Gate Automation
Benefits
- Improves gate safety
- Protects vehicles and pedestrians
- Prevents gate collisions
- Reliable infrared detection
- Long-range obstacle sensing
- Easy integration with gate controllers
- Low maintenance operation
- Suitable for UAE installations
Compatible Systems
- Sliding Gate Motors
- Swing Gate Motors
- Garage Door Motors
- Boom Barriers
- Automatic Door Operators
- Rolling Shutter Motors
- Access Control Systems
- Industrial Automation Systems
Package Includes
- 1 × Infrared Photocell Sensor Set
- Transmitter Unit
- Receiver Unit
- Mounting Accessories
- Installation Manual
Why Choose This Infrared Photocell Sensor?
- 15-meter detection range
- Reliable infrared beam technology
- Compact and durable design
- Compatible with most gate systems
- Fast obstacle detection response
- Low power consumption
- Easy installation and alignment
- Professional support available across UAE
Frequently Asked Questions
What is an infrared photocell sensor used for?
An infrared photocell sensor detects obstacles in the path of automatic gates and barriers, helping prevent accidents and equipment damage.
What is the maximum sensing distance?
The sensor provides reliable detection at distances of up to 15 meters.
Can it be used outdoors?
Yes. The sensor is designed for outdoor gate automation and access control applications.
What voltage does the sensor require?
The sensor operates on AC12-24V or DC12-24V power supplies.
Which gate systems is it compatible with?
It is compatible with sliding gates, swing gates, garage doors, parking barriers, rolling shutters, and most automatic gate control systems.
