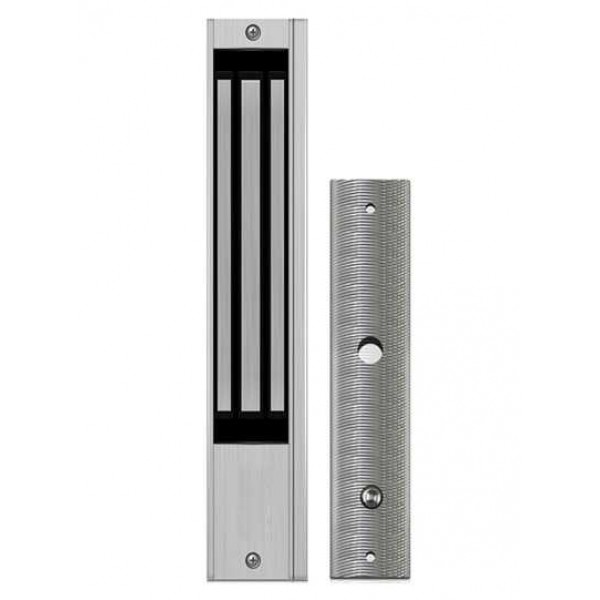

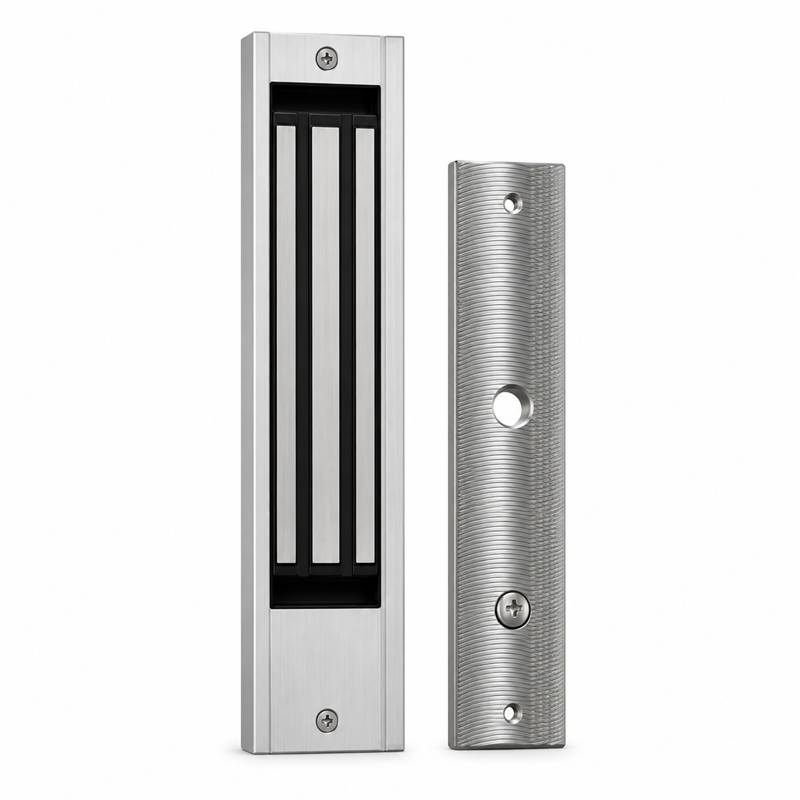

Fail-Safe Magnetic Door Lock with LED Status Indicator & Monitoring Sensor
The Electromagnetic Lock 280KG (600Lbs) with LED and Door Sensor is a professional-grade magnetic locking solution designed for access control systems, commercial buildings, offices, residential properties, hospitals, schools, and industrial facilities throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Providing a powerful holding force of 280KG (600Lbs), this fail-safe electromagnetic lock delivers secure electronic locking while ensuring safe emergency release during power failure. The built-in LED indicator and door status sensor provide real-time monitoring of lock and door conditions, making it ideal for advanced access control installations.
The lock features adjustable DC12V and DC24V operation, dry contact signal output, and durable anodized aluminum construction for long-term reliability. It integrates seamlessly with RFID readers, biometric systems, access control controllers, keypads, push buttons, and building management systems.
Designed for out-swing doors, this electromagnetic lock offers reliable security, intelligent monitoring, and dependable performance for residential and commercial applications.
Key Features
- 280KG (600Lbs) holding force
- Built-in LED lock status indicator
- Integrated door status sensor
- Fail-safe operation
- Dry contact signal output
- DC12V and DC24V operation
- Low power consumption
- Durable anodized aluminum housing
- Suitable for access control integration
- Designed for out-swing doors
Technical Specifications
- Holding Force: 280KG (600Lbs)
- Operating Voltage: DC12V / DC24V Adjustable
- Current Draw: 12V / 500mA
- Current Draw: 24V / 250mA
- Signal Output: Dry Contact
- Maximum Contact Current Rating: 3A
- Built-in LED Indicator: Yes
- Door Status Sensor: Yes
- Fail-Safe Operation: Yes
Physical Specifications
- Lock Size: 250 × 48.5 × 25 mm
- Armature Plate Size: 180 × 38 × 11 mm
- Weight: 2kg
- Heavy-Duty Surface Mount Design
Material & Construction
- Anodized Aluminum Housing
- Zinc-Coated Magnetic Core
- Zinc-Coated Armature Plate
- Corrosion-Resistant Finish
- Industrial-Grade Construction
Environmental Specifications
- Operating Temperature: -10°C to +55°C
- Surface Temperature: ≤20°C
- Humidity Range: 0%–90% Non-Condensing
- Suitable for Indoor Security Applications
Monitoring Features
- LED Lock Status Display
- Door Position Monitoring
- Dry Contact Output Signal
- Access Control System Feedback
- Real-Time Lock Status Reporting
Suitable Applications
- Access Control Systems
- Commercial Buildings
- Office Entrances
- Apartment Buildings
- Schools and Universities
- Hospitals and Clinics
- Banks and Financial Institutions
- Warehouses
- Server Rooms
- Restricted Access Areas
Benefits
- Strong 600Lbs holding force
- Integrated monitoring functions
- Enhanced security management
- Fail-safe emergency release
- Reliable long-term operation
- Easy integration with access control systems
- Low maintenance requirements
- Suitable for UAE commercial and residential projects
Package Includes
- 1 × Electromagnetic Lock 280KG
- 1 × Armature Plate
- Mounting Accessories
- Installation Manual
Why Choose This 280KG Magnetic Lock?
- Powerful 600Lbs holding force
- Built-in LED and door sensor
- Dry contact monitoring output
- DC12V and DC24V compatibility
- Fail-safe safety operation
- Heavy-duty aluminum construction
- Professional access control integration
- Professional support available across UAE
Frequently Asked Questions
What is the holding force of this magnetic lock?
The lock provides a holding force of 280KG (600Lbs).
Does the lock include door monitoring?
Yes. It features a built-in door status sensor and LED status indicator.
Can it work with access control systems?
Yes. It is fully compatible with RFID readers, biometric systems, access controllers, keypads, and push buttons.
What happens during a power failure?
The fail-safe design automatically releases the lock when power is removed, allowing safe emergency exit.
What voltage does the lock support?
The lock supports both DC12V and DC24V operation with adjustable voltage selection.
