Magnetic Door Lock for Access Control & Security Systems
The Electromagnetic Lock 180KG (350Lbs) is a compact and reliable magnetic locking solution designed for access control systems, office doors, apartment entrances, commercial buildings, and residential properties throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Using powerful electromagnetic technology, the lock provides a holding force of up to 180KG (350Lbs), ensuring secure door locking while allowing instant electronic release when authorized access is granted. Its fail-safe design automatically unlocks during power loss, making it suitable for emergency evacuation and fire safety applications.
The lock is compatible with access control systems, RFID readers, biometric devices, push buttons, keypads, and door controllers. Its compact dimensions make it ideal for wooden doors, glass doors, metal doors, and fire-rated doors where reliable electronic locking is required.
Manufactured with anodized aluminum housing and zinc-coated magnetic components, the lock delivers long-term durability and dependable performance even in demanding environments.
Key Features
- 180KG (350Lbs) holding force
- Fail-safe magnetic locking system
- Suitable for access control integration
- DC12V and DC24V operation
- Compact and durable construction
- Low power consumption
- Fast electronic release
- Reliable long-term operation
- Suitable for residential and commercial applications
- Easy installation and maintenance
Technical Specifications
- Holding Force: 180KG (350Lbs)
- Operating Voltage: DC12V Standard
- Optional Voltage: DC24V (Custom Order)
- Current Draw: 12V / 280mA
- Current Draw: 24V / 150mA
- Signal Output: No Signal Output
- Fail-Safe Operation: Yes
Physical Specifications

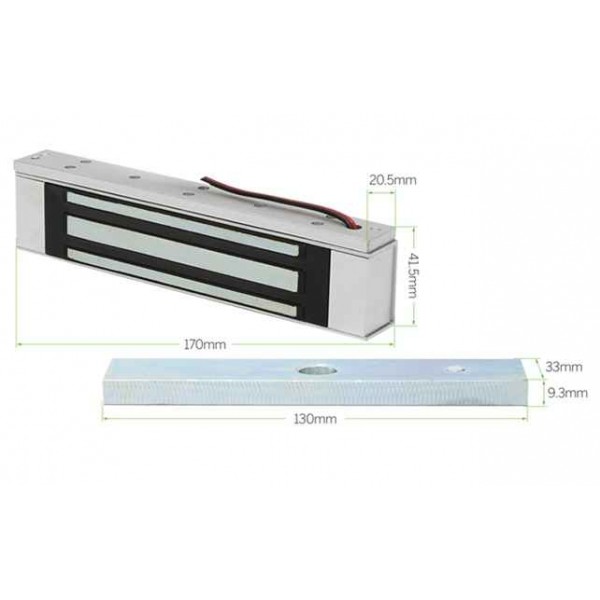

- Lock Size: 170 × 41.5 × 20.5 mm
- Armature Plate Size: 130 × 33 × 9.3 mm
- Weight: 1.2kg
- Compact Surface Mount Design
Construction Materials
- Anodized Aluminum Housing
- Zinc-Coated Magnetic Core
- Zinc-Coated Armature Plate
- Corrosion-Resistant Finish
Environmental Specifications
- Operating Temperature: -10°C to +55°C
- Surface Temperature: ≤20°C
- Humidity Range: 0%–90% Non-Condensing
- Suitable for Indoor Installations
Suitable Door Types
- Wooden Doors
- Glass Doors
- Metal Doors
- Fire-Rated Doors
- Office Entrance Doors
- Access Control Doors
Applications
- Access Control Systems
- Office Buildings
- Apartment Buildings
- Commercial Properties
- Residential Villas
- Schools and Universities
- Hospitals and Clinics
- Warehouses
- Server Rooms
- Restricted Access Areas
Benefits
- Strong 180KG holding force
- Fail-safe emergency release design
- Reliable electronic locking
- Compatible with most access control systems
- Low maintenance requirements
- Long service life
- Easy installation
- Suitable for UAE commercial and residential projects
Package Includes
- 1 × Electromagnetic Lock 180KG
- 1 × Armature Plate
- Mounting Accessories
- Installation Guide
Why Choose This 180KG Magnetic Lock?
- Strong 350Lbs holding force
- Fail-safe operation for safety compliance
- Suitable for multiple door types
- Durable anodized aluminum housing
- Low power consumption
- Reliable access control integration
- Professional-grade security performance
- Professional support available across UAE
Frequently Asked Questions
What is the holding force of this magnetic lock?
The lock provides a holding force of 180KG (350Lbs).
Does the lock unlock during power failure?
Yes. As a fail-safe electromagnetic lock, it automatically unlocks when power is removed.
Which doors can this lock be installed on?
It is suitable for wooden doors, glass doors, metal doors, and fire-rated doors.
Can it work with access control systems?
Yes. The lock is fully compatible with RFID readers, biometric systems, keypads, access controllers, and push buttons.
What voltage does the lock require?
The standard version operates on DC12V, while DC24V versions are available upon request.
