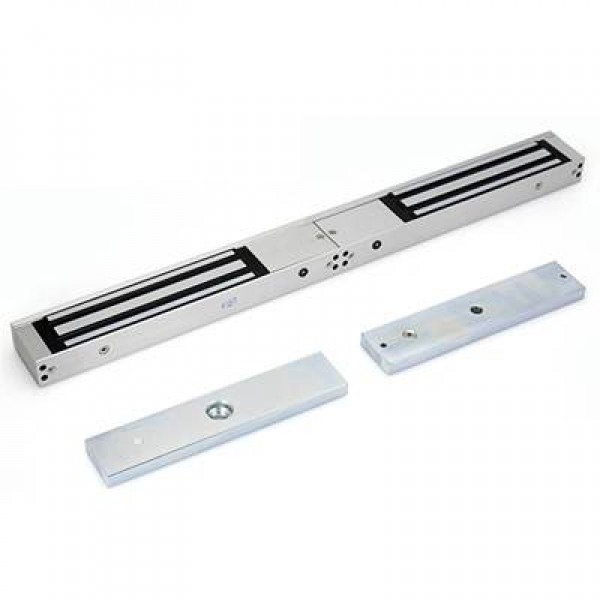

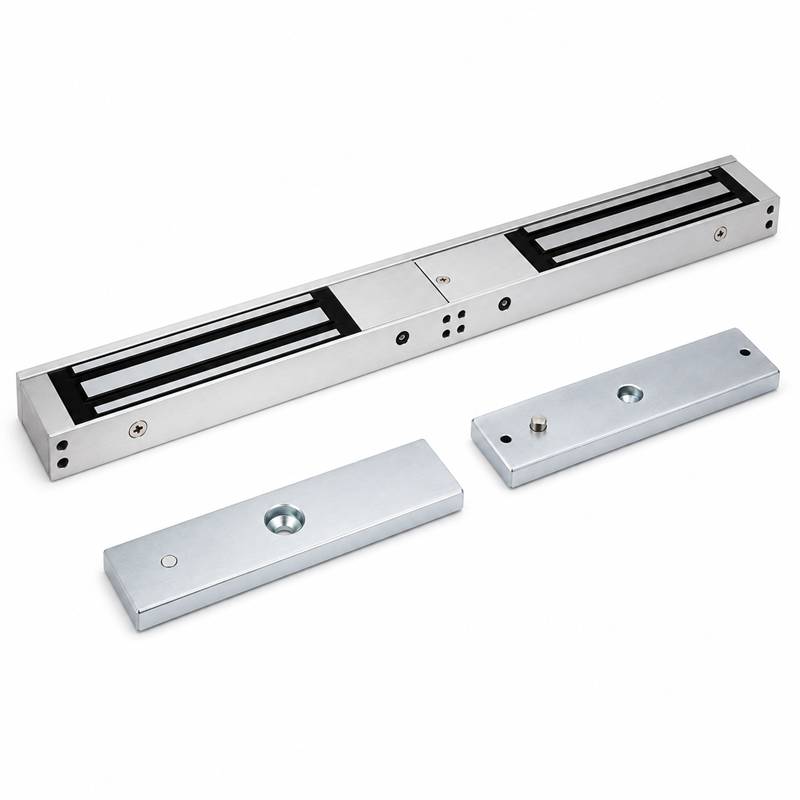

Heavy-Duty Double Door Magnetic Lock with LED & Door Status Sensor
The Double Door Electromagnetic Lock 280KG x 2 is a professional-grade magnetic locking solution designed for double-door access control systems in commercial buildings, offices, hospitals, schools, warehouses, residential complexes, and industrial facilities throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Featuring dual magnetic locks with a holding force of 280KG per door leaf, this system delivers a combined holding force of up to 560KG (1200Lbs), providing exceptional security and reliable door locking performance. Built-in LED indicators and door status sensors allow real-time monitoring of lock and door conditions for enhanced security management.
The lock supports both DC12V and DC24V operation and includes dry contact signal output for integration with access control systems, RFID readers, biometric devices, push buttons, keypads, and building management systems.
Its fail-safe design automatically unlocks during power failure, ensuring safe emergency evacuation and compliance with access control safety requirements.
Key Features
- Double door electromagnetic lock system
- 280KG holding force per lock
- 560KG total holding force
- Built-in LED status indicators
- Integrated door status sensors
- Fail-safe emergency release operation
- Dry contact monitoring output
- DC12V and DC24V operation
- Heavy-duty anodized aluminum construction
- Suitable for access control integration
Technical Specifications
- Holding Force: 280KG × 2
- Total Holding Force: 560KG (1200Lbs)
- Operating Voltage: DC12V or DC24V Adjustable
- Current Draw: 12V / 500mA × 2
- Current Draw: 24V / 250mA × 2
- Signal Output: Dry Contact
- Maximum Contact Rating: 3A
- Built-in LED Indicator: Yes
- Door Status Sensor: Yes
- Fail-Safe Operation: Yes

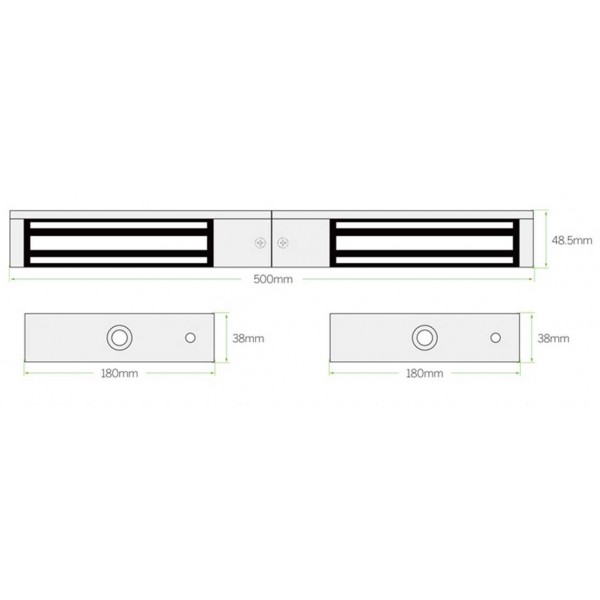

Physical Specifications
- Lock Size: 500 × 48.5 × 25 mm
- Armature Plate Size: 180 × 38 × 11 mm
- Weight: 4kg
- Double Door Surface Mount Design
Construction Materials
- Anodized Aluminum Housing
- Zinc-Coated Magnetic Core
- Zinc-Coated Armature Plate
- Corrosion-Resistant Finish
- Industrial Grade Components
Environmental Specifications
- Operating Temperature: -10°C to +55°C
- Surface Temperature: ≤20°C
- Humidity Range: 0%–90% Non-Condensing
- Suitable for Indoor Security Installations
Monitoring Functions
- LED Lock Status Monitoring
- Door Position Detection
- Access Control System Feedback
- Dry Contact Status Output
- Real-Time Door Monitoring
Suitable Door Types
- Double Wooden Doors
- Double Metal Doors
- Office Entrance Doors
- Glass Door Systems (with brackets)
- Commercial Security Doors
- Emergency Exit Doors
Applications
- Office Buildings
- Commercial Facilities
- Residential Towers
- Schools and Universities
- Hospitals and Clinics
- Warehouses
- Industrial Facilities
- Government Buildings
- Banks and Financial Institutions
- Restricted Access Areas
Benefits
- High-security double door protection
- Integrated lock and door monitoring
- Fail-safe emergency operation
- Compatible with all access control systems
- Reliable long-term performance
- Heavy-duty commercial design
- Low maintenance requirements
- Suitable for UAE commercial projects
Package Includes
- 1 × Double Door Electromagnetic Lock Assembly
- 2 × Armature Plates
- Mounting Accessories
- Installation Manual
Why Choose This Double Door Magnetic Lock?
- 560KG combined holding force
- LED lock status indication
- Built-in door monitoring sensor
- Supports DC12V and DC24V systems
- Fail-safe security operation
- Commercial-grade construction
- Easy integration with access control systems
- Professional support available across UAE
Frequently Asked Questions
What is the holding force of this magnetic lock?
The lock provides 280KG holding force per side, delivering a total holding force of 560KG for double-door applications.
Does it include door monitoring?
Yes. The lock includes built-in LED indicators and door status sensors for monitoring and access control integration.
Can it work with access control systems?
Yes. It is fully compatible with RFID readers, biometric devices, access control panels, keypads, and push buttons.
What happens during a power failure?
The fail-safe design automatically unlocks the doors when power is removed, ensuring safe emergency exit.
What voltage does the lock support?
The lock supports both DC12V and DC24V operation with adjustable voltage selection.
