Heavy Duty Sliding Gate Opener for Commercial & Industrial Gates
The CAME BK 1800 KG Sliding Gate Opener is a powerful and reliable automation solution designed for large sliding gates weighing up to 1800 KG and gate lengths up to 20 meters.
Ideal for villas, gated communities, commercial complexes, warehouses, factories, industrial facilities, and high-security entrances, the CAME BK 1800 delivers smooth, powerful, and dependable gate automation across UAE.
This advanced sliding gate motor features integrated control electronics with storage capacity for up to 250 users, making it suitable for residential compounds, commercial properties, and multi-user access control systems.
The control panel supports self-diagnosing safety devices and direct connection of 8k2Ω resistive safety edges, ensuring enhanced safety and reliable gate operation.
Available with module 4 or module 6 pinion options, the CAME BK 1800 is prepared for magnetic limit switch installation, providing accurate gate positioning and precise opening and closing control.
With a traction force of 1150 N and operating speed of 10.5 meters per minute, this electromechanical gate motor ensures efficient automation while maintaining stable performance under intensive daily use.
Built with IP54 weather protection and thermal motor protection up to 150°C, the CAME BK 1800 is engineered to withstand demanding UAE weather conditions including extreme heat, humidity, and dust.
CAME BK 1800 KG Features
- Suitable for sliding gates up to 1800 KG
- Supports gate lengths up to 20 meters
- Available with module 4 or 6 pinion
- Integrated control board with display
- Storage for up to 250 users
- Self-diagnosing safety devices
- Supports 8k2Ω resistive safety edges
- Prepared for magnetic limit switches
- Smooth and precise electromechanical operation
- Self-locking gate security system
- Heavy-duty commercial and industrial performance
Technical Specifications
- Model: CAME BK 1800
- Maximum Gate Weight: 1800 KG
- Maximum Gate Length: 20 m
- Maximum Leaf Width: 9 m
- Motor Power Supply: 230V
- Motor Type: Electromechanical
- Current Draw: 4.2 A
- Power Consumption: 480 W
- Traction Force: 1150 N
- Operating Speed: 10.5 m/min
- Duty Cycle: 50%
- Protection Rating: IP54
- Operating Temperature: -20°C to +50°C
- Motor Thermal Protection: 150°C
- Self-Locking: Yes
- Limit Switches: Opening and Closing
- Encoder: No

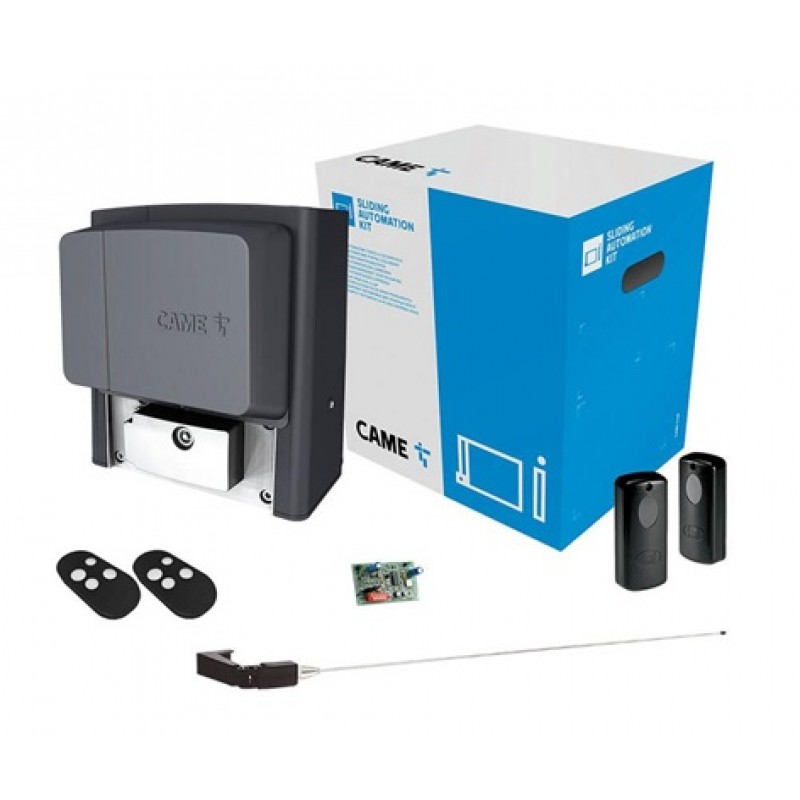

Included in the Kit
- 1 x CAME BK 1800 Sliding Gate Motor
- 1 x Integrated Control Unit
- 2 x Remote Controls
- 1 x Pair of Photocells
- 1 x Remote Receiver
- 1 x Blinker Light
- 1 x 4 Meter Nylon Rack
- 1 x Push Button
Applications
- Industrial sliding gates
- Commercial complexes
- Warehouse entrances
- Factory access gates
- Residential compounds
- Gated communities
- Villa entrances
- High-security access points
Why Choose CAME BK 1800 UAE?
- Heavy-duty automation for gates up to 1800 KG
- Integrated user management for 250 users
- Advanced safety system support
- Reliable operation in UAE climate conditions
- High traction force and smooth operation
- Industrial-grade durability and performance
- Professional installation support across UAE
Frequently Asked Questions
What gate weight can the CAME BK 1800 support?
The CAME BK 1800 is designed for sliding gates weighing up to 1800 KG and gate lengths up to 20 meters.
How many users can be stored in the control unit?
The integrated control board can store up to 250 users for remote access management.
Does the motor support safety edges?
Yes, the CAME BK 1800 supports direct connection of 8k2Ω resistive safety edges and self-diagnosing safety devices.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
