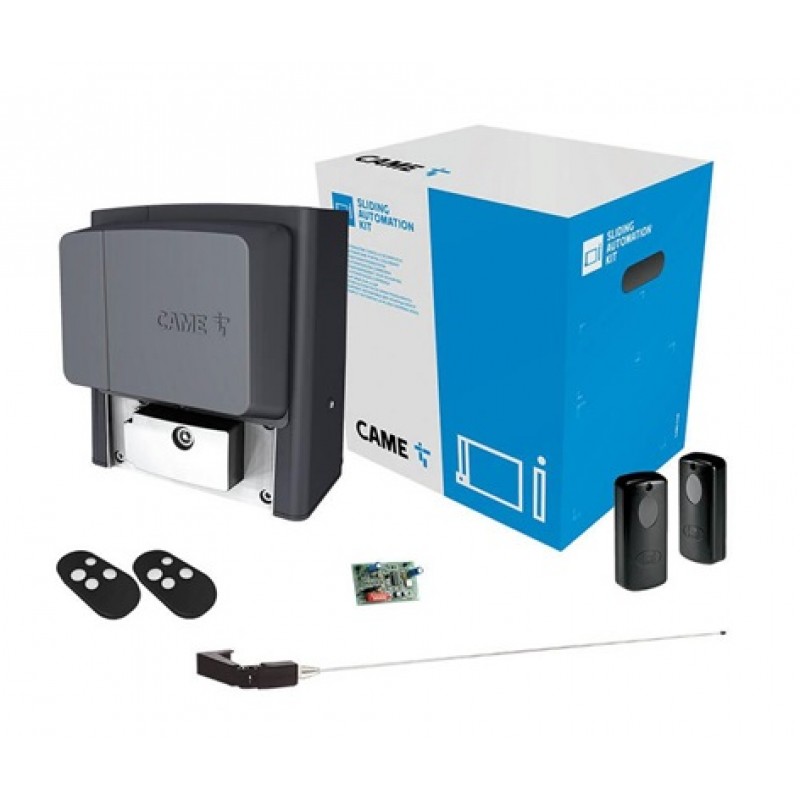

CAME BKS22TLS BK 2200 KG Sliding Gate Motor UAE

Heavy Duty Commercial Sliding Gate Opener for Large Gates

The CAME BKS22TLS BK 2200 KG Sliding Gate Motor is a premium heavy-duty automation solution designed for large commercial, industrial, and residential sliding gates weighing up to 2200 KG and measuring up to 18 meters in length.

Powered by a high-performance 600W 400V motor, the BKS22TLS delivers exceptional dynamic thrust during opening and closing cycles, ensuring smooth, reliable, and efficient movement of very heavy sliding gates.

Designed for intensive commercial applications, this advanced gate motor is equipped with the intelligent ZT6 control panel, which continuously monitors gate movement, inertia, and safety conditions to maximize performance and operational reliability.

The integrated obstacle detection system automatically stops or reverses gate movement when an obstruction is detected, providing enhanced protection for vehicles, pedestrians, and property.

A convenient partial opening function allows pedestrian access without opening the entire gate, helping improve access control efficiency and reduce operating time.

The separate control panel design protects electronic components from insects, vermin, dust, and environmental exposure, increasing long-term reliability and reducing maintenance requirements.

Built with a robust IP54-rated enclosure and designed to operate in temperatures from -20°C to +55°C, the CAME BKS22TLS is perfectly suited for demanding UAE weather conditions including heat, humidity, and dust.

CAME BKS22TLS Features

• Suitable for sliding gates up to 2200 KG
• Supports gate lengths up to 18 meters
• Powerful 600W 400V motor
• High dynamic thrust performance
• ZT6 intelligent control panel
• Obstacle detection with auto stop and reverse
• Pedestrian partial opening function
• Separate protected control panel
• Mechanical limit switches
• IP54 protection rating
• Duty cycle 50%
• 1-year manufacturer warranty

Technical Specifications

• Model: CAME BKS22TLS
• CAME Code: 801MS-0131
• Maximum Gate Weight: 2200 KG
• Maximum Gate Length: 18 m
• Motor Power: 600W
• Motor Voltage: 400V
• Operating Speed: 175 mm/sec
• Optional Speed: 240 mm/sec (with BK25PIN)
• Duty Cycle: 50%
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C
• Limit Switches: Mechanical
• Warranty: 1 Year

Applications

• Large residential sliding gates
• Commercial entrances
• Industrial sliding gates
• Parking lot access systems
• Gated communities
• Office complexes
• Warehouse entrances
• High-traffic automated gate systems

Why Choose CAME BKS22TLS UAE?

• Heavy-duty automation for large gates
• Advanced ZT6 intelligent control system
• Obstacle detection and automatic reversal
• Suitable for intensive daily operation
• Weather-resistant IP54 construction
• Reliable performance in UAE climate
• Professional installation support across UAE

Frequently Asked Questions

What gate weight can the CAME BKS22TLS support?

The CAME BKS22TLS is designed for sliding gates weighing up to 2200 KG and lengths up to 18 meters.

Does the motor include obstacle detection?

Yes, the integrated ZT6 control panel continuously monitors gate movement and automatically stops or reverses when an obstacle is detected.

Can the gate be partially opened for pedestrians?

Yes, the BKS22TLS supports partial opening functionality for convenient pedestrian access.

Is installation available in UAE?

Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
