Automatic Sliding Gate Motor for Residential & Commercial Gates
The CAME BX 800 KG Sliding Gate Motor is a high-performance gate automation solution designed for residential, commercial, and industrial sliding gates across UAE.
Designed to automate gates weighing up to 800 KG and measuring up to 14 meters in length, the CAME BX 800 delivers smooth, reliable, and secure operation for daily gate automation applications.
This powerful sliding gate motor features a 230V motor, integrated electronic control board with programming display, and built-in radio decoding for convenient remote control operation and advanced automation management.
The CAME BX 800 incorporates obstacle detection with mechanical limit switches, providing enhanced safety and protection for gates, vehicles, and users during opening and closing cycles.
Finished with a modern RAL7024 grey housing, the motor is designed to withstand harsh UAE weather conditions including heat, humidity, and dust while maintaining long-term reliability.
Suitable for villas, residential compounds, warehouses, commercial buildings, factories, and industrial entrances, the CAME BX 800 KG sliding gate operator provides dependable automation performance across Dubai, Sharjah, Abu Dhabi, Ajman, Fujairah, Ras Al Khaimah, Al Ain, Umm Al Quwain, and all UAE.
CAME BX 800 KG Features
- Suitable for sliding gates up to 800 KG
- Supports gate lengths up to 14 meters
- 230V motor system
- Integrated electronic control board
- Programming display included
- Built-in radio decoding
- Mechanical limit switch system
- Obstacle detection functionality
- Smooth and reliable gate movement
- Modern RAL7024 grey housing
- Suitable for residential and commercial use
Technical Specifications
- Maximum Gate Weight: 800 KG
- Maximum Gate Length: 14 m
- Protection Rating: IP44
- Power Supply: 230V AC 50/60Hz
- Motor Voltage: 230V
- Current Absorption: 2.5A
- Power Consumption: 520W
- Operating Speed: 10.5 m/min
- Duty Cycle: 30%
- Thrust Force: 800 N
Applications
- Residential sliding gates
- Villa gate automation
- Commercial sliding gates
- Industrial gate systems
- Warehouse entrances
- Private parking gates
- Residential compounds
- Automated gated communities

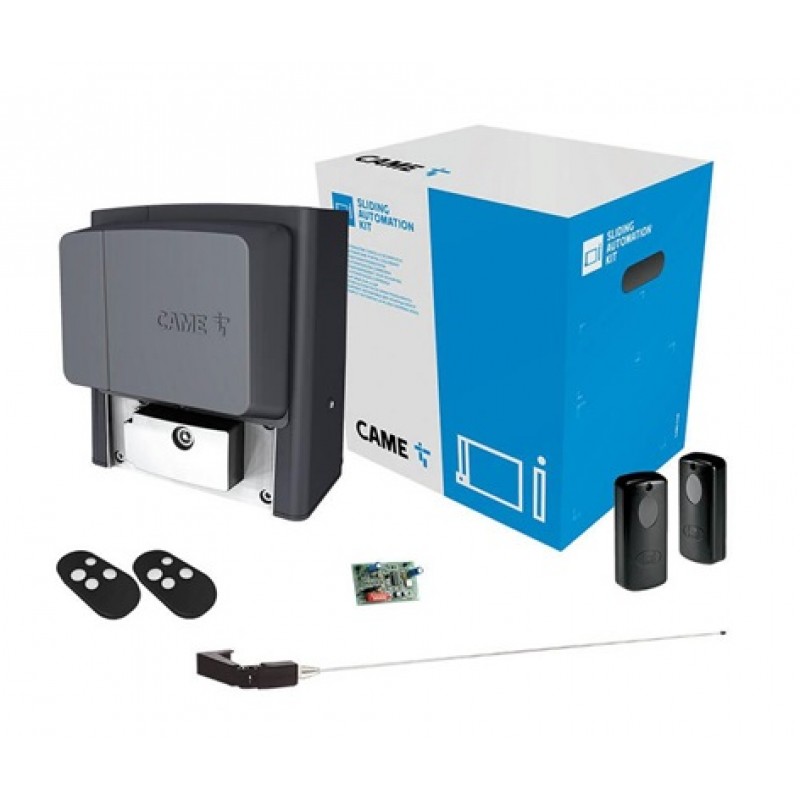

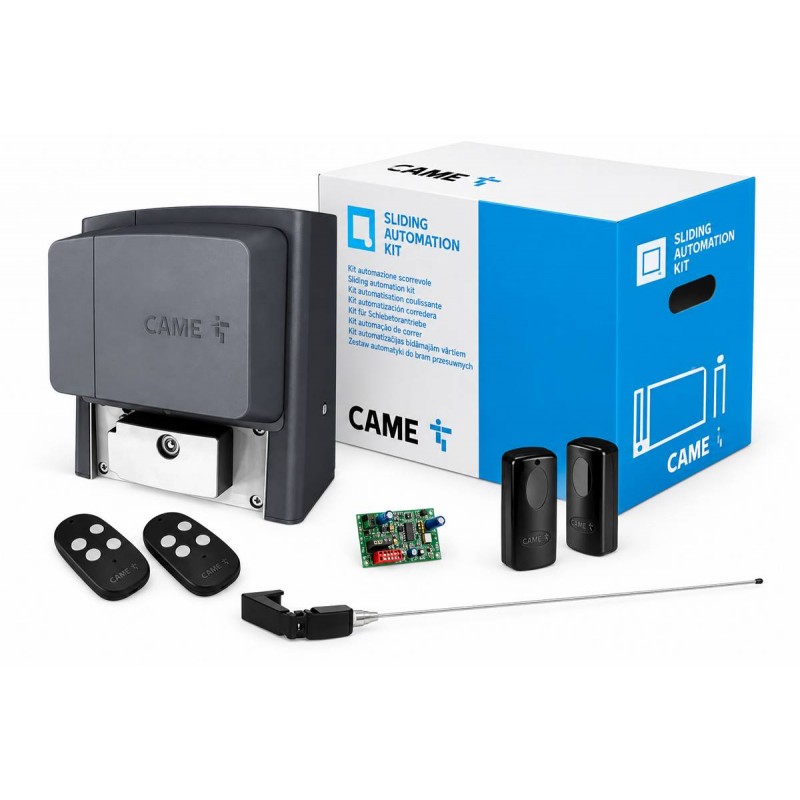

Kit Includes
- 1 x CAME BX 800 KG Sliding Gate Motor
- 1 x Integrated Electronic Control Board
- 1 x Pair of Outdoor Photocells
- 1 x Four Channel Remote Control
- 1 x 433.92 MHz Radio Frequency Card
- 1 x LED Flashing Light
- 1 x 5 Meter Antenna Cable
- 1 x Push Button
- 4 x Nylon Gear Racks
Why Choose CAME BX 800 KG UAE?
- Reliable Italian gate automation technology
- Suitable for gates up to 800 KG
- Integrated programming display
- Built-in radio receiver functionality
- Advanced obstacle detection safety
- Weather-resistant construction
- Professional installation support across UAE
Frequently Asked Questions
What gate weight can the CAME BX 800 support?
The CAME BX 800 is designed for sliding gates weighing up to 800 KG and lengths up to 14 meters.
Does the motor include obstacle detection?
Yes, the motor includes obstacle detection with mechanical limit switches for enhanced gate safety.
Is the control board built into the motor?
Yes, the CAME BX 800 includes an integrated electronic control board with programming display and built-in radio decoding.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
