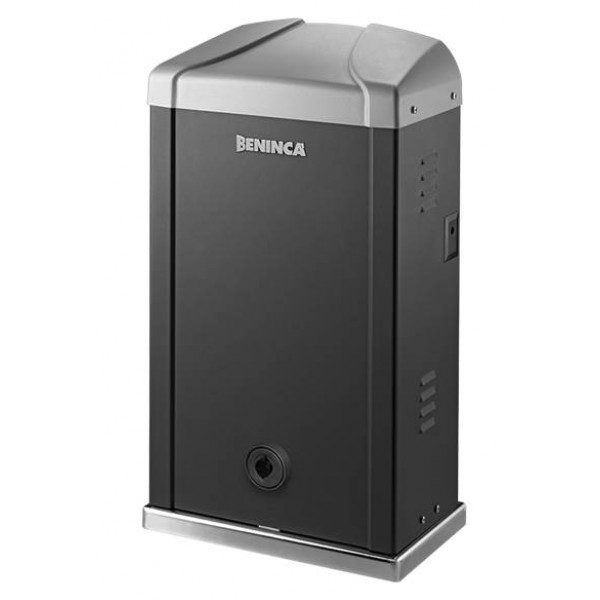

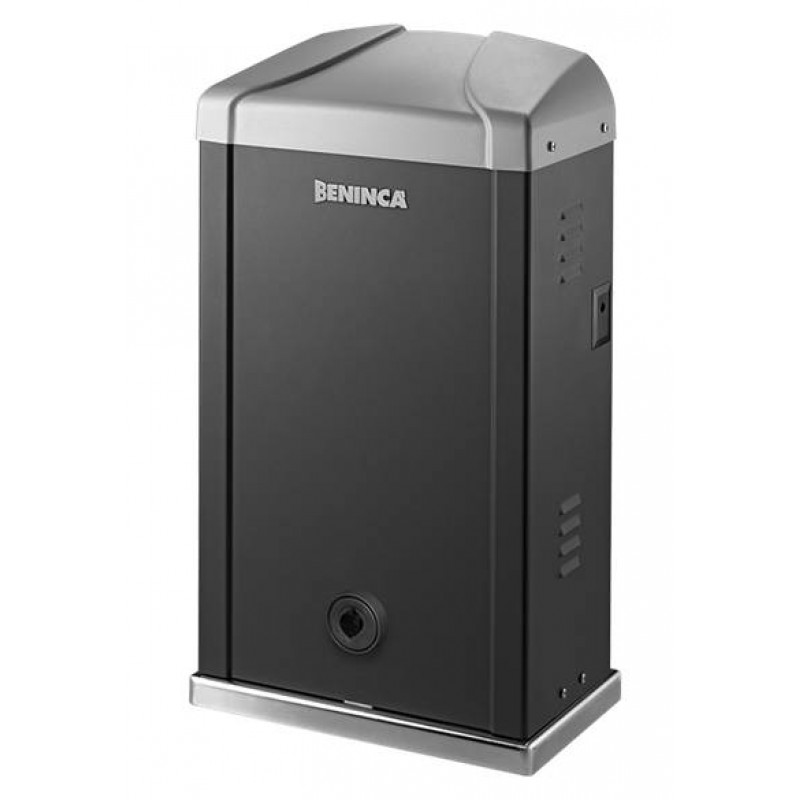

BENINCA BISON45 OTI 4500 KG Sliding Gate Motor in UAE

BENINCA BISON45 OTI 4500 KG Sliding Gate Motor in Dubai

• The BENINCA BISON45 OTI 4500 KG Sliding Gate Motor is a premium industrial automation solution
• designed for extremely heavy sliding gates up to 4500 kg. Ideal for industrial complexes,
• logistics hubs, large commercial entrances, airports, ports, and high-security facilities,
• this motor delivers superior performance, precision, and reliability.
• Built for intensive use, the BISON45 OTI operates on a robust 400 Vac
• three-phase power supply and incorporates advanced inverter technology.
• The inverter allows the motor speed to be gradually varied during both acceleration and deceleration phases,
• ensuring controlled movement, precise positioning, and enhanced anti-crushing protection during operation.
• An integrated encoder system continually monitors gate position and thrust,
• allowing the control unit to dynamically manage torque and movement profiles.
• Combined with an oil-lubricated gearbox and full metal mechanical construction,
• this results in outstanding durability, long service life,
• and smooth operation—even under high load and extreme environmental conditions.
• The built-in control unit includes a 433.92 MHz receiver capable of storing multiple remote transmitters,
• while the inverter itself supports advanced safety logic and multiple input/output configurations.
• The BISON45 OTI is engineered for industrial reliability,
• making it a preferred choice for demanding gate automation projects across the UAE.

Key Features – BENINCA BISON45 OTI

• Industrial sliding gate motor for gates up to 4500 kg
• 400 Vac three-phase power supply with inverter control
• Integrated encoder for precision and safety
• Oil-lubricated gearbox for extended lifespan
• Full metal mechanical structure
• Smooth acceleration and deceleration via inverter
• High thrust and frequent-use capability
• Built-in control unit with programmable logic
• Integrated receiver with multiple transmitter storage
• Technical Specifications – BENINCA BISON45 OTI

Specification Details

• Power Supply 400 Vac (50–60 Hz)
• Motor Supply 400 Vac, Three-Phase
• Maximum Gate Weight 4500 kg
• Maximum Thrust ~>3000 N (Industrial class)
• Opening Speed Approx. 19 m/min (typical)
• Duty Cycle Intensive Use
• Protection Level IP44
• Built-in Control Unit Yes
• Integrated Receiver Yes
• Encoder Yes
• Virtual Encoder No
• Magnetic Limit Switches Optional based on config
• Lubrication Oil
• Pinion M8 Industrial Z-series
• Operating Temperature –20 °C to +50 °C
• Motor Weight ~60+ kg (industrial class)
• Exact thrust and speed figures may vary by configuration and rack choice.

Typical Package / Supply Contents

• BENINCA BISON45 OTI Sliding Gate Motor
• 1 x Integrated control unit & inverter
• 1 x Encoder system
• 1 x Built-in radio receiver
• 2 x Remote controls
• 1 x Piar of Photocells
• 1 x Flashing light
• 1 x Push button

BENINCA BISON45 OTI

• Encoder feedback system
• Industrial lubrication and protective casing
• Industrial & High-Traffic Applications
• Industrial manufacturing facility entrances
• Logistics & distribution warehouses
• Airports and port terminals
• Large commercial compounds
• Security-focused infrastructure projects
• Government and institutional gate automation

Why Choose BENINCA BISON45 OTI in UAE?

• Italian industrial engineering excellence
• Designed for very heavy sliding gates (up to 4500 kg)
• Advanced inverter + encoder safety system
• Oil-lubricated gearbox for extended service life
• Smooth and safe gate motion under heavy load
• Ideal for industrial, commercial & high-frequency use
• Robust performance in UAE heat and dust conditions
• Optional Accessories & Expansion
• FTC.S Photocells – Built-in or external safety sensors
• X.BE Card – KNX integration module (if supported)
• Additional Remote Controls – 433.92 MHz ARC / Rolling / Fixed code
• Safety Edges – Sensitive edge protection
• Loop Detectors & Access Control Interfaces
