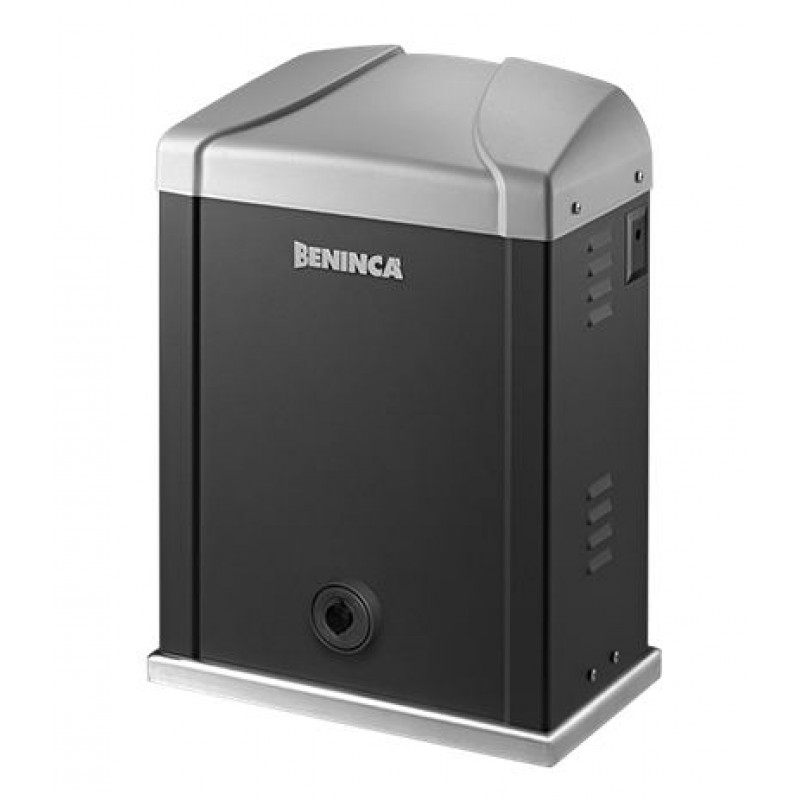

BENINCA BISON35 OTI 3500 KG Sliding Gate Motor in UAE

BENINCA BISON35 OTI 3500 KG Sliding Gate Motor in Dubai

• The BENINCA BISON35 OTI 3500 KG Sliding Gate Motor is a top-tier industrial automation solution
• engineered for very large and extremely heavy sliding gates. Designed for intensive,
• continuous operation, this 400Vac three-phase gear motor is ideal for factories,
• logistics hubs, ports, airports, warehouses, and high-security industrial entrances across the UAE.
• Equipped with an integrated control unit, encoder, and inverter,
• the BISON35 OTI ensures exceptional movement precision and safety.
• The inverter technology allows the motor speed to be smoothly adjusted during acceleration and deceleration,
• resulting in optimal gate control, reduced mechanical stress, and superior anti-crushing protection.
• Its full-metal mechanical structure and oil-lubricated gearbox guarantee maximum efficiency,
• silent operation, and extended service life—even under high loads and extreme temperature conditions.
• The encoder continuously monitors gate movement, enabling accurate slow-down phases,
• obstacle detection, and torque management relative to gate position.
• Built specifically for industrial-grade installations, the BENINCA BISON35 OTI delivers high thrust,
• reliability, and safety, making it the ideal solution for very heavy sliding gates
• requiring uninterrupted performance in demanding UAE environments.

Key Features – BENINCA BISON35 OTI

• Sliding gate motor for gates up to 3500 kg
• 400 Vac three-phase motor for intensive industrial use
• Integrated inverter technology for smooth speed variation
• Encoder-based precision and anti-crushing safety
• Oil-lubricated gearbox for maximum lifespan
• Full metal mechanics with protective casing treatment
• Built-in control unit and integrated radio receiver
• Stores up to 64 remote transmitters
• Self-ventilated motor for continuous operation
• Designed for harsh industrial environments

Technical Specifications – BENINCA BISON35 OTI

• Power Supply: 400 Vac (50–60 Hz)
• Motor Supply: 400 Vac, Three-Phase
• Maximum Gate Weight: 3500 kg
• Maximum Thrust: 3000 N
• Opening Speed: 19 m/min
• Duty Cycle: Intensive Use
• Protection Level: IP44
• Built-in Control Unit: Yes
• Integrated Receiver: Yes (433.92 MHz)
• Encoder: Yes
• Virtual Encoder: No
• Magnetic Limit Switches: No
• Pinion: M6 Z13
• Lubrication: Oil
• Operating Temperature: -20°C to +50°C
• Motor Weight: 50.8 kg

BENINCA BISON35 OTI Sliding Gate Motor

• Integrated control unit with LCD display
• Integrated 433.92 MHz radio receiver
• Encoder & inverter pre-installed
• Foundation plate not included
• Control Unit – Main Functions
• Integrated LCD display
• 433.92 MHz receiver with ARC / Rolling / Fixed Code
• Automatic, semi-automatic & deadman logic
• Encoder-based obstacle detection
• Inputs for pedestrian, step-by-step, stop
• Support for 4 pairs of photocells with photo-test
• Electronic torque control & braking
• Adjustable slow-down phases
• Auto setting of operating parameters
• Maintenance warning & maneuver counter
• Password-protected programming access
• Recommended Applications
• Heavy industrial sliding gates
• Ports, airports & logistics centers
• Factories & warehouses
• High-security commercial entrances
• Infrastructure & government projects

Package Contents

• 1 × BENINCA BISON35 OTI Sliding Gate Motor
• 1 x Integrated control unit & inverter
• 1 x Encoder system
• 1 x Built-in radio receiver
• 2 x Remote controls
• 1 x Piar of Photocells
• 1 x Flashing light
• 1 x Push button

Why Choose BENINCA BISON35 OTI in UAE?

• Italian industrial engineering excellence
• Designed for very heavy sliding gates
• Three-phase inverter technology for smooth control
• Oil-lubricated gearbox for long service life
• Encoder-based safety for high-traffic environments
• Ideal for industrial and large-scale UAE projects
