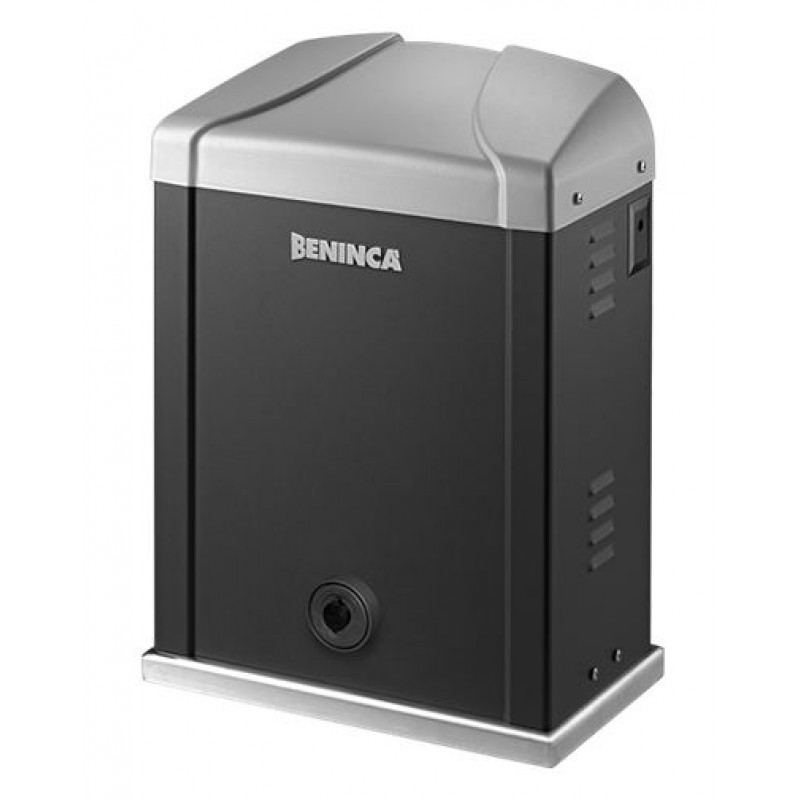

BENINCA BISON35 OTIL 3500 KG Sliding Gate Motor in UAE

BENINCA BISON35 OTIL 3500 KG Sliding Gate Motor in Dubai

• The BENINCA BISON35 OTIL Sliding Gate Motor is an industrial-grade automation solution engineered
• for very heavy sliding gates requiring continuous and reliable operation.
• Designed for commercial and industrial environments,
• this motor operates on a 400Vac three-phase power supply,
• delivering exceptional strength, precision, and durability.
• Equipped with an integrated inverter and encoder, the BISON35 OTIL ensures smooth acceleration
• and deceleration, precise movement control, and advanced anti-crushing safety.
• The inverter dynamically adjusts motor speed and torque based on gate position,
• reducing mechanical stress and improving overall system lifespan.
• Its oil-lubricated gearbox and full-metal internal mechanics provide outstanding performance
• even under high load conditions and extreme UAE temperatures.
• The self-ventilated motor allows intensive, uninterrupted operation,
• making it suitable for industrial facilities, logistics centers,
• factories, ports, and high-security entrances.

Key Features – BENINCA BISON35 OTIL

• Sliding gate automation up to 3500 kg
• 400 Vac three-phase motor for industrial use
• Integrated inverter technology for smooth speed control
• Encoder-based safety and obstacle detection
• Oil-lubricated gearbox for maximum lifespan
• Heavy-duty full-metal mechanical structure
• Built-in control unit with LCD display
• Integrated 433.92 MHz radio receiver
• Stores up to 64 remote controls
• Designed for intensive duty cycles

Technical Specifications – BENINCA BISON35 OTIL

• Power Supply: 400 Vac (50–60 Hz)
• Motor Supply: 400 Vac, Three-Phase
• Maximum Gate Weight: 3500 kg
• Maximum Thrust: 3000 N
• Opening Speed: 19 m/min
• Duty Cycle: Intensive Use
• Protection Class: IP44
• Control Unit: Integrated
• Radio Receiver: Integrated (433.92 MHz)
• Encoder: Yes
• Lubrication: Oil
• Pinion: M6 Z13
• Operating Temperature: -20°C to +50°C
• Motor Weight: Approx. 50 kg

Package Contents

• 1 × BENINCA BISON35 OTIL Sliding Gate Motor
• 1 x Integrated control unit & inverter
• 1 x Encoder system
• 1 x Built-in radio receiver
• 2 x Remote controls
• 1 x Piar of Photocells
• 1 x Flashing light
• 1 x Push button

Applications

• Industrial sliding gates
• Factories & warehouses
• Ports & logistics terminals
• Heavy commercial compounds
• High-security installations

Why Choose BENINCA BISON35 OTIL in UAE?

• Italian industrial engineering
• Designed for very heavy gates
• Three-phase inverter precision
• Long service life with oil lubrication
• Reliable performance in harsh climates
• Ideal for industrial & infrastructure projects
