BENINCA BILL30M Swing Gate Opener Motor in UAE

BENINCA BILL30M Swing Gate Opener Motor in Dubai

• The BENINCA BILL30M Swing Gate Opener Motor is a high-quality Italian-engineered automation solution
• specifically developed for wrought-iron and decorative swing gates.
• Designed for gate leaves up to 2.5 meters,
• the BILL30M combines compact design, powerful thrust, and long-lasting reliability.
• Powered by a 230 Vac irreversible electromechanical geared motor,
• the BENINCA BILL30M ensures secure gate locking without the need for additional electric locks.
• Its neat and compact structure makes it particularly suitable for forged iron gates
• where aesthetics and discreet installation are essential.
• The motor features a stainless-steel stem protected by a scraper ring,
• ensuring excellent resistance against dust, sand,
• and aggressive atmospheric agents—making it highly suitable for UAE climate conditions.
• The easy-access manual release from above allows quick gate operation during power failures,
• while the availability of right-hand and left-hand versions ensures flexible installation.
• With smooth operation, reliable performance, and strong mechanical construction,
• the BENINCA BILL30M is ideal for residential villas, private compounds,
• and light commercial entrances throughout Dubai, Sharjah, Abu Dhabi, and the wider UAE.

Key Features – BENINCA BILL30M

• Swing gate opener for up to 2.5 m per leaf
• 230 Vac irreversible electromechanical motor
• Compact and elegant design for wrought-iron gates
• Stainless steel stem with scraper ring protection
• Resistant to dust, sand, and harsh environments
• Easy manual release from above
• Available in right or left versions
• High thrust for stable and secure operation
• Made in Italy

Technical Specifications – BENINCA BILL30M

• Power Supply 230 Vac (50–60 Hz)
• Motor Supply 230 Vac
• Maximum Thrust 2800 N
• Opening Time 16 seconds
• Standard Stroke 300 mm
• Maximum Stroke 320 mm
• Duty Cycle 30%
• Protection Level IP54
• Built-in Control Unit No
• Lubrication Grease
• Operating Temperature –20 °C to +50 °C
• Maximum Leaf Length 2.5 m
• Motor Weight 6.1 kg
• Kit Weight 14.6 kg

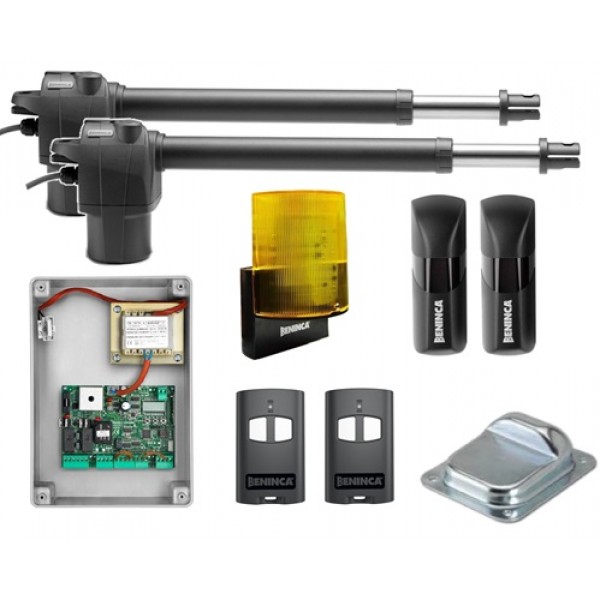

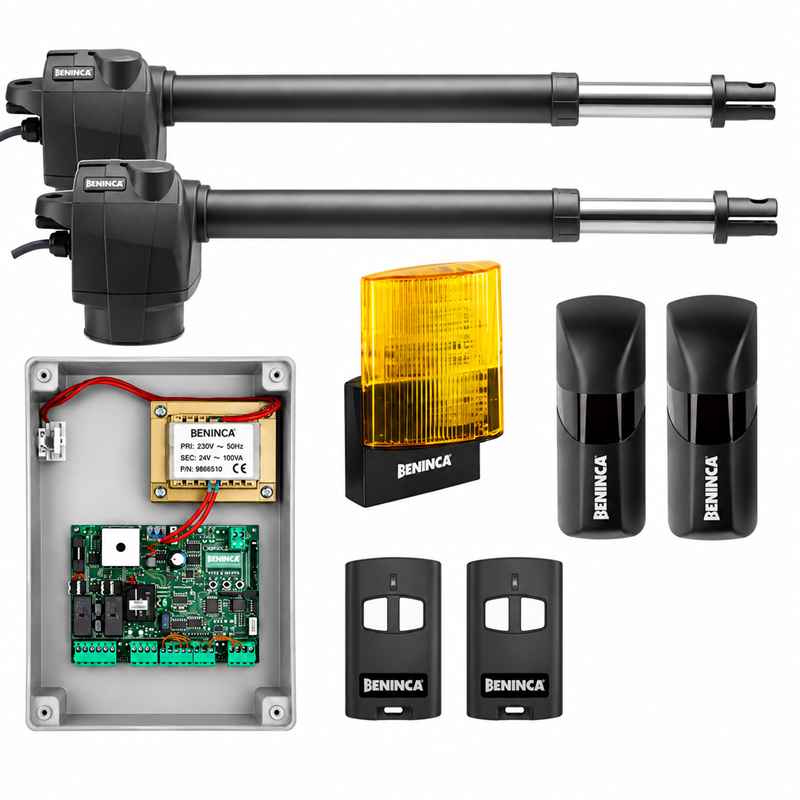

BENINCA BILL30M Kit Includes

• 2 x BILL30M Irreversible 230 Vac electromechanical geared motor
• 1 x HEADY Control unit 230 Vac with integrated receiver
• 1 x PUPILLA.T Pair of adjustable photocells with three positions, power supply 14÷30 Vac / 12÷30 Vdc
• 1 x LAMPY Flashing light 12 ÷ 255 Vac / 14 ÷ 255 Vdc with integrated antenna
• 2 x TO.GO2VA 2-channel 433.92 MHz transmitter with Advanced Rolling Code and Rolling Code
• 2 × Fixing Brackets
• 1 × Exit Push Button
• 2 × Manual Release Keys

Ideal Applications

• Residential villas
• Wrought-iron swing gates
• Private compounds
• Decorative and architectural gates
• Light commercial entrances

Why Choose BENINCA BILL30M in UAE?

• Italian quality and engineering
• Compact design for aesthetic gates
• High resistance to dust and sand
• Reliable performance in UAE climate
• Easy installation and maintenance
• Secure irreversible motor technology
