BENINCA BILL50M Swing Gate Opener Motor in UAE

BENINCA BILL50M Swing Gate Opener Motor in Dubai

• The BENINCA BILL50M Swing Gate Opener Motor is a premium Italian-made automation solution
• designed for wrought-iron and decorative swing gates with leaf lengths of up to 4 meters.
• Combining compact design with high performance,
• the BILL50M is ideal for residential villas, private compounds, and light commercial entrances in the UAE.
• Equipped with a 230 Vac irreversible electromechanical geared motor,
• the BENINCA BILL50M ensures secure gate operation without the need for additional locking mechanisms.
• Its neat and compact design allows for quick and easy installation while preserving the aesthetic appeal of forged iron gates.
• The motor’s stainless-steel stem protected by a scraper ring offers excellent resistance against dust, sand,
• and harsh environmental conditions, making it highly suitable for outdoor installations in Dubai, Sharjah, Abu Dhabi,
• and other Emirates. The manual release system, accessible from above, ensures gate operation even during power failures.
• Available in right-hand and left-hand versions, the BENINCA BILL50M delivers smooth,
• reliable, and long-lasting performance for heavy-duty swing gates.

Key Features – BENINCA BILL50M

• Swing gate opener for up to 4 m per leaf
• 230 Vac irreversible electromechanical motor
• Compact design for wrought-iron gates
• High thrust for secure and stable operation
• Stainless steel stem with scraper ring protection
• Resistant to dust, sand, and harsh environments
• Easy manual release from above
• Available in right or left versions
• Made in Italy

Technical Specifications – BENINCA BILL50M

• Specification Details
• Power Supply 230 Vac (50–60 Hz)
• Motor Supply 230 Vac
• Max Absorbed Current 1.1 A
• Maximum Thrust 2800 N
• Opening Time 21 seconds
• Standard Stroke 500 mm
• Maximum Stroke 520 mm
• Duty Cycle 30%
• Protection Level IP54
• Built-in Control Unit No
• Encoder No
• Lubrication Grease
• Operating Temperature –20 °C to +50 °C
• Maximum Leaf Length 4 m
• Motor Weight 6.9 kg
• Kit Weight 16.2 kg

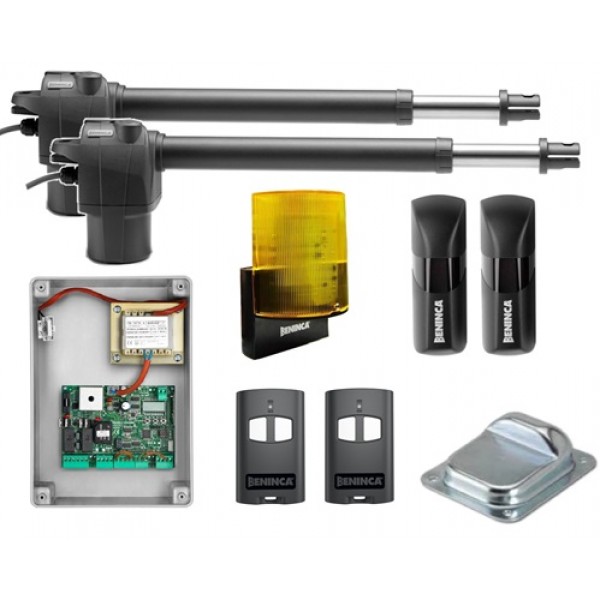

BENINCA BILL50M Kit Includes

• 2 × BENINCA BILL50M 230 Vac Swing Gate Motors
• 1 × HEADY 230 Vac Control Unit
• 1 × LAMPI.LED 230 Vac LED Flashing Light
• 1 × Pair of PUPILLA.R Fixed Photocells
• 2 × BENINCA To.GO Remote Controls
• 2 × Fixing Brackets
• 1 × Exit Push Button
• 2 × Manual Release Keys

Ideal Applications

• Residential villas
• Wrought-iron swing gates
• Private compounds
• Decorative architectural gates
• Light commercial entrances

Why Choose BENINCA BILL50M in UAE?

• Italian-made engineering and quality
• Designed for long swing gate leaves up to 4 m
• Reliable performance in UAE climate conditions
• High resistance to dust, sand, and harsh weather
• Secure irreversible motor technology
• Quick installation and minimal maintenance
