BENINCA BILL40M Swing Gate Opener Motor in UAE

BENINCA BILL40M Swing Gate Opener Motor in Dubai

• The BENINCA BILL40M Swing Gate Opener Motor is a premium Italian-engineered automation solution
• developed specifically for wrought-iron and decorative swing gates with leaf lengths of up to 3.5 meters.
• Combining compact dimensions with powerful performance, the BILL40M is ideal for residential villas,
• private compounds, and light commercial entrances throughout the UAE.
• Powered by an irreversible 230 Vac electromechanical geared motor,
• the BENINCA BILL40M ensures secure gate locking without the need for additional electric locks.
• Its neat design and compact size allow quick
• and easy installation while maintaining the aesthetic appeal of forged iron gates.
• The motor features a stainless-steel stem protected by a scraper ring,
• offering excellent resistance to dust,
• sand, and aggressive atmospheric agents—making it highly suitable for outdoor installations in Dubai, Sharjah, Abu Dhabi,
• and other Emirates. The manual release mechanism, accessible from above,
• ensures easy operation during power failures.
• Available in right-hand and left-hand versions, the BENINCA BILL40M offers installation flexibility
• while delivering smooth, reliable, and long-lasting performance in demanding environmental conditions.

Key Features – BENINCA BILL40M

• Swing gate opener for up to 3.5 m per leaf
• 230 Vac irreversible electromechanical motor
• Compact and elegant design for wrought-iron gates
• High thrust for stable and secure operation
• Stainless steel stem with scraper ring protection
• Resistant to dust, sand, and harsh environments
• Easy manual release from above
• Available in right or left versions
• Made in Italy

Technical Specifications – BENINCA BILL40M

• Power Supply 230 Vac (50–60 Hz)
• Motor Supply 230 Vac
• Max Absorbed Current 1.1 A
• Maximum Thrust 2800 N
• Opening Time 18 seconds
• Standard Stroke 400 mm
• Maximum Stroke 420 mm
• Duty Cycle 30%
• Protection Level IP54
• Built-in Control Unit No
• Encoder No
• Lubrication Grease
• Operating Temperature –20 °C to +50 °C
• Max Leaf Length 3.5 m
• Motor Weight 6.7 kg
• Kit Weight 15.5 kg

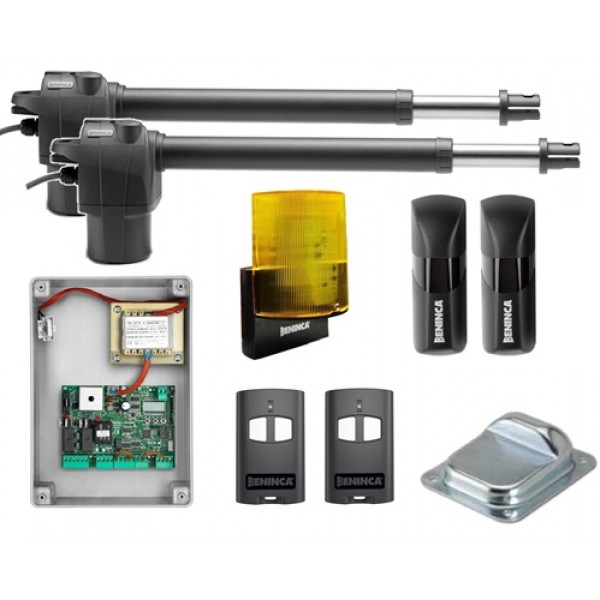

BENINCA BILL40M Kit Includes

• 2 × BENINCA BILL40M 230 Vac Swing Gate Motors
• 1 × HEADY 230 Vac Control Unit
• 1 × LAMPI.LED 230 Vac LED Flashing Light
• 1 × Pair of PUPILLA.R Fixed Photocells
• 2 × BENINCA To.GO Remote Controls
• 2 × Fixing Brackets
• 1 × Exit Push Button
• 2 × Manual Release Keys

Ideal Applications

• Residential villas
• Wrought-iron swing gates
• Private compounds
• Decorative architectural gates
• Light commercial entrances

Why Choose BENINCA BILL40M in UAE?

• Italian quality and engineering
• Designed for long swing gate leaves up to 3.5 m
• Reliable performance in UAE climate conditions
• High resistance to dust and sand
• Secure irreversible motor technology
• Easy installation and low maintenance
