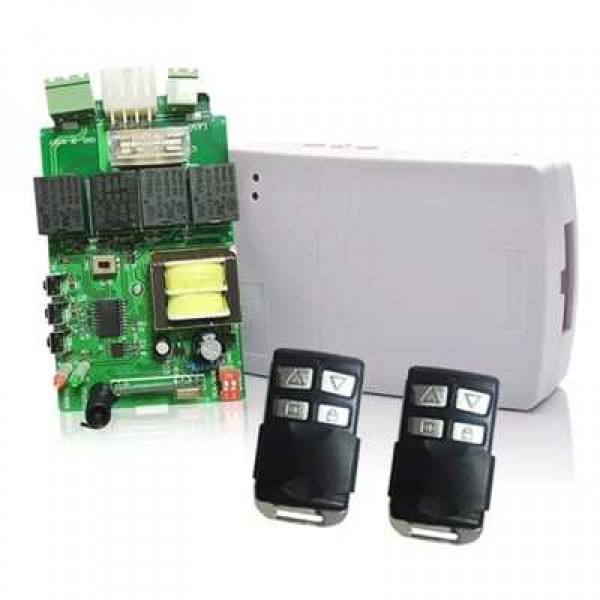

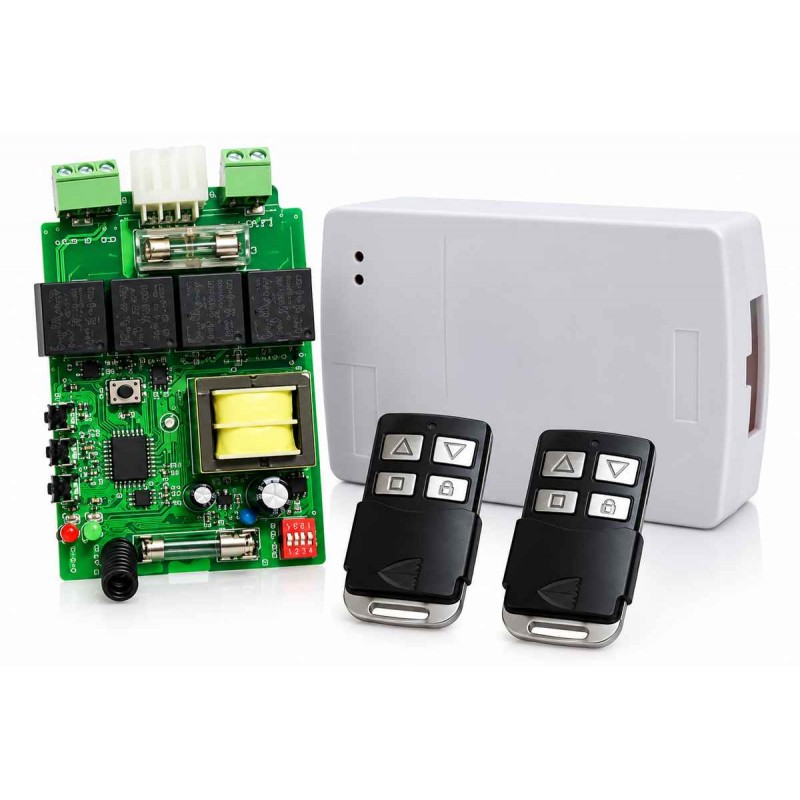

433MHz Wireless Shutter Motor Controller with Safety Photocell System
The Remote Control Photocell with Controller for Shutter Motors is a complete automation and safety solution designed for rolling shutter side motors, electric roller garage doors, and direct drive shutter motors. Featuring integrated safety photocells, wireless remote controls, and advanced motor management functions, this system ensures smooth, secure, and reliable operation for commercial and residential shutter installations across Dubai, Sharjah, Abu Dhabi, and throughout the UAE.
The built-in photocell safety system automatically stops the motor whenever an obstacle is detected during opening or closing, helping prevent accidents and protecting people, vehicles, and property. The controller supports multiple remote control technologies including fixed code, learning code, and rolling code transmitters for maximum compatibility and flexibility.
Designed with an industry-standard CPU and housed in a durable ABS UV-resistant enclosure, the controller provides long-term reliability even under harsh UAE weather conditions. Advanced functions such as auto-close, deadman operation, motor direction reversal, run timer control, and external key switch integration make this one of the most versatile shutter motor control systems available.
Key Features
- Built-in safety photocell obstacle detection
- Wireless remote control system
- Independent Open, Stop, and Close buttons
- Auto-close functionality
- Supports up to 50 remote transmitters
- Motor forward and reverse direction control
- Deadman safety operation mode
- Low-voltage manual switch input
- External key switch compatibility
- Suitable for motors up to 1000W
Technical Specifications
- Product Type: Remote Control Photocell Controller
- Motor Compatibility: Rolling Shutter Side Motors
- Voltage: 220V AC
- Operating Current: ≤10mA
- Frequency: 433MHz
- Transmission Speed: 50–60KHz
- Sensitivity: ≥ -105dBm
- Temperature Range: -40°C to +80°C
- Static Power Consumption: 1W
- Protection Class: IP44
- Transmission Distance: 0–100m
- Channels: 4 Channels
- Remote Code Types: Fixed Code, Learning Code, Rolling Code
- Maximum Motor Load: 1000W
Safety Features
- Photocell obstacle detection system
- Automatic motor stop on obstruction
- Deadman operation mode
- Motor run timer protection
- Secure rolling code compatibility
- Reliable industrial-grade control processor
Applications
- Rolling Shutter Side Motors
- Electric Roller Garage Doors
- Direct Drive Shutter Motors
- Commercial Shop Shutters
- Warehouse Roller Doors
- Industrial Shutter Systems
- Storage Facilities
- Retail Security Shutters
Benefits
- Enhanced safety with photocell protection
- Wireless convenience and easy operation
- Long-range remote control performance
- Supports multiple users and remotes
- Easy installation and setup
- Reliable operation in UAE climate
- Low maintenance requirements
- Suitable for commercial and industrial use
Package Includes
- 1 × Receiver Controller Unit
- 1 × Pair of Safety Photocells
- 2 × Wireless Remote Controls
- Power Cable and Connections
- Installation Instructions
Why Choose This Photocell Controller Kit?
- Integrated safety photocell system
- 433MHz wireless technology
- Supports multiple remote control types
- Suitable for motors up to 1000W
- Long operating range up to 100m
- Industrial-grade reliability
- Easy installation and programming
- Perfect for UAE shutter automation projects
Frequently Asked Questions
What happens if an obstacle is detected?
The photocell sensors automatically stop the motor when an obstacle is detected during shutter movement, helping prevent accidents and damage.
How many remotes can be programmed?
The receiver can store and operate up to 50 compatible remote controls.
What is the maximum remote control range?
The wireless transmission range can reach up to 100 meters depending on installation conditions and surrounding interference.
What motors is this controller compatible with?
The controller is designed for rolling shutter side motors, electric roller garage doors, and direct drive shutter motors up to 1000W.
Is this suitable for UAE weather conditions?
Yes. The controller features an IP44-rated enclosure and operates reliably in temperatures from -40°C to +80°C.
