Wireless Controller for Rolling Shutter Side Chain Motors
The Rolling Shutter Door Remote Controller Receiver Kit is a reliable wireless control solution designed for rolling shutter side chain motors. Operating on a 433MHz frequency, this controller allows convenient remote operation of commercial and residential rolling shutters, garage doors, shop shutters, and warehouse entrances throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
The kit includes a control box, two wireless remote controls, and a wireless wall-mounted push button, providing multiple access methods for daily operation. With a remote control range of up to 50 meters, users can easily open, close, and stop rolling shutters without manual operation.
Designed for easy installation and programming, the controller features learning code technology, allowing quick pairing of new remotes and simple code clearing when required. The system also supports motor direction reversal, making installation and setup easier for technicians and installers.
Note: This controller is designed specifically for rolling shutter side chain motors and is not compatible with tubular motors.
Key Features
- Wireless remote control operation
- 433MHz operating frequency
- Suitable for rolling shutter side chain motors
- Remote operating distance up to 50 meters
- Easy learning code programming
- Motor forward and reverse direction setting
- Wireless wall push button included
- Simple installation and setup
- Reliable signal transmission
- Ideal for commercial and residential shutters
Technical Specifications
- Product Type: Rolling Shutter Controller Receiver
- Working Voltage: AC220V
- Output Current: 2A / 220VAC
- Working Frequency: 433MHz
- Remote Control Distance: ≥ 50m
- Decoding Method: Single Chip Decoding
- Remote Compatibility: Fixed Code & Learning Code
- Operating Temperature: -20°C to +60°C
- Application: Side Chain Rolling Shutter Motors
Applications
- Rolling Shutter Side Chain Motors
- Commercial Shop Shutters
- Warehouse Doors
- Garage Doors
- Industrial Roller Shutters
- Retail Stores
- Storage Facilities
- Commercial Buildings
Programming Functions
- Remote learning and pairing
- Code clearing and reset function
- Motor direction reverse setting
- Multi-remote compatibility
- Easy maintenance and operation
Benefits
- Convenient wireless operation
- No need for manual shutter control
- Reliable long-range performance
- Simple installation and programming
- Supports multiple access methods
- Improves daily convenience
- Suitable for commercial and residential use
- Cost-effective automation upgrade

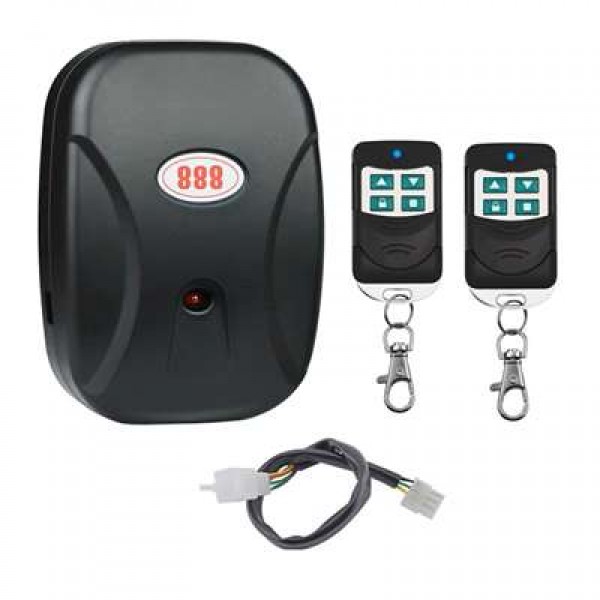

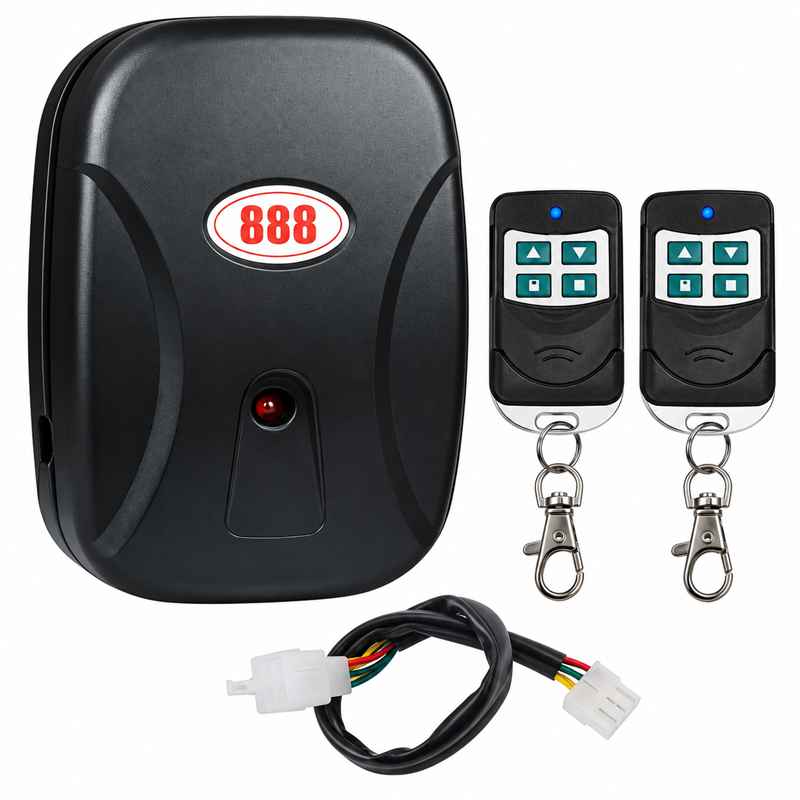

Package Includes
- 1 × Control Box Receiver
- 2 × Wireless Remote Controls
- 1 × Wireless Wall Push Button
- 1 × Instruction Manual
Important Compatibility Notice
This wireless controller kit is designed exclusively for rolling shutter side chain motors. It is not compatible with tubular motors or tubular shutter automation systems.
Why Choose This Rolling Shutter Controller Kit?
- Reliable 433MHz wireless technology
- Up to 50m operating range
- Easy programming and installation
- Includes remotes and wall switch
- Supports motor direction adjustment
- Suitable for UAE commercial applications
- Durable and reliable operation
- Professional support available across UAE
Frequently Asked Questions
Is this controller compatible with tubular motors?
No. This controller is designed only for rolling shutter side chain motors and cannot be used with tubular motors.
What is the remote control range?
The remote control operating distance is approximately 50 meters or more, depending on installation conditions.
How many remotes are included?
The kit includes two wireless remote controls and one wireless wall-mounted push button.
Can I reverse the motor direction?
Yes. The controller includes a motor forward and reverse direction setting function.
Can additional remotes be programmed?
Yes. The receiver supports learning code programming, allowing additional compatible remotes to be paired.
