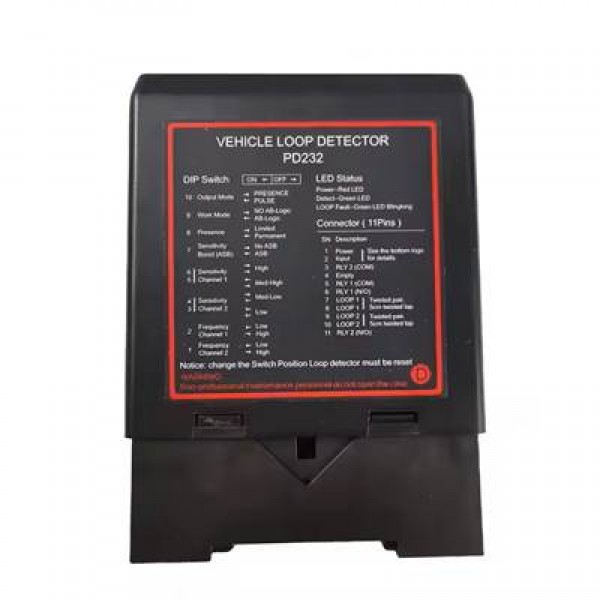

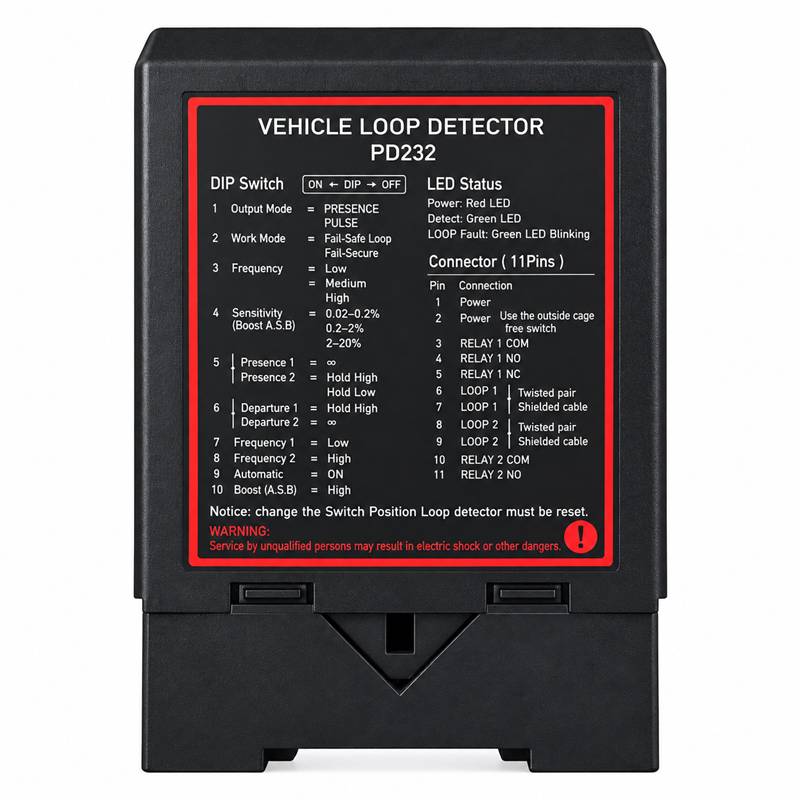

Dual Channel Inductive Vehicle Detection System for Gate Barriers
The PD-232 2 Channel Vehicle Loop Detector is a professional dual-loop vehicle detection system designed for automatic gate barriers, parking management systems, access control installations, industrial entrances, and traffic control applications throughout Dubai, Abu Dhabi, Sharjah, and across the UAE.
Using advanced inductive loop technology, the PD-232 simultaneously monitors two independent vehicle detection loops, making it ideal for installations requiring entry and exit lane control, dual-lane vehicle management, parking barriers, and automated access systems.
The detector accurately identifies vehicle presence by monitoring changes in loop inductance and provides reliable operation with adjustable sensitivity settings. Its fast response time of only 10 milliseconds ensures smooth barrier operation and improved safety for vehicle access control systems.
Designed for commercial and industrial applications, the PD-232 helps prevent barrier arm collisions, improves traffic flow, enhances vehicle safety, and provides dependable performance in demanding environments.
Key Features
- Dual channel vehicle loop detector
- Monitors two independent vehicle loops
- 230V AC operation
- Fast 10ms response time
- Adjustable sensitivity levels
- Reliable inductive vehicle detection
- Unlimited or timed signal holding function
- Compact industrial housing
- Ideal for dual-lane access control systems
- Easy installation and configuration
Technical Specifications
- Model: PD-232
- Product Type: 2 Channel Vehicle Loop Detector
- Supply Voltage: 230V AC
- AC Voltage Tolerance: +10% / -15%
- DC Voltage Tolerance: ±15%
- Power Consumption: 4.5VA
- Output Relay Rating: 240V / 5A
- Reaction Time: 10ms
- Frequency Range: 20kHz – 170kHz
- Sensitivity Levels: 4 Adjustable Settings
Detection Specifications
- Two Independent Loop Channels
- Signal Holding Time: Unlimited
- Limited Mode: 10 Minutes
- Vehicle Presence Detection
- High Accuracy Recognition
- Continuous Monitoring Function
Loop Installation Specifications
- Loop Inductance Range: 100μH – 300μH
- Maximum Loop Cable Length: 20 Meters
- Cable Twist Requirement: Minimum 20 Twists per Meter
- Compatible with Standard Vehicle Detection Loops
Environmental Specifications
- Operating Temperature: -20°C to +65°C
- Storage Temperature: -40°C to +85°C
- Suitable for Indoor and Outdoor Automation Systems
Physical Specifications
- Housing Dimensions: 78 × 40 × 108 mm
- Compact Industrial Design
- DIN Rail Compatible Housing
Applications
- Parking Gate Barriers
- Dual Lane Vehicle Access Control
- Automatic Sliding Gates
- Automatic Swing Gates
- Industrial Entrances
- Warehouse Vehicle Access
- Commercial Parking Facilities
- Toll Collection Systems
- Traffic Management Systems
- RFID Vehicle Entry Systems
Benefits
- Controls two vehicle loops simultaneously
- Improves traffic flow management
- Enhances barrier safety operation
- Prevents accidental gate closure
- Fast vehicle detection response
- Reliable long-term operation
- Easy integration with access control systems
- Ideal for UAE commercial projects
Compatible Systems
- Parking Barrier Systems
- Boom Gate Barriers
- Vehicle Access Control Systems
- RFID Access Systems
- Automatic Gate Operators
- Traffic Control Equipment
- Industrial Automation Systems
- Parking Management Software
Package Includes
- 1 × PD-232 2 Channel Vehicle Loop Detector
- User Manual
Why Choose PD-232 Vehicle Loop Detector?
- Dual-channel vehicle detection capability
- Fast 10ms response time
- 230V AC industrial operation
- Adjustable sensitivity settings
- Reliable inductive loop technology
- Suitable for dual-lane installations
- Easy installation and setup
- Professional support available across UAE
Frequently Asked Questions
What is the difference between PD-132 and PD-232?
The PD-132 supports one vehicle detection loop, while the PD-232 supports two independent vehicle detection loops simultaneously.
What is the power supply requirement?
The PD-232 operates on a 230V AC power supply.
Can the detector control two lanes?
Yes. The dual-channel design makes it ideal for entry and exit lane management or dual-lane vehicle detection systems.
What is the response time?
The detector responds to vehicle presence within approximately 10 milliseconds.
Is it suitable for parking barriers?
Yes. The PD-232 is widely used with parking barriers, automatic gates, access control systems, and traffic management installations.
