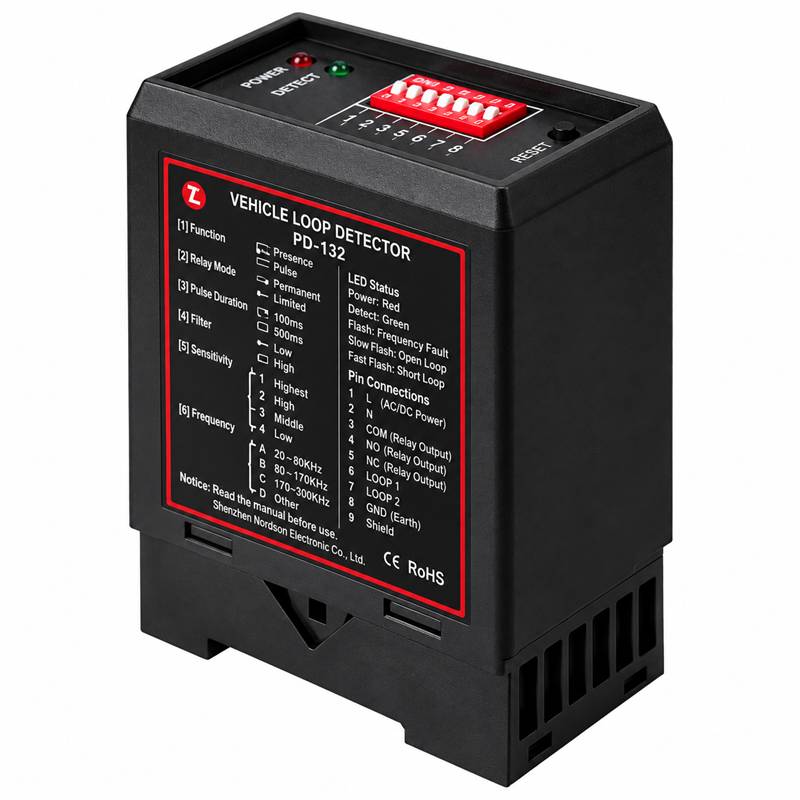

Professional Inductive Vehicle Detection Loop Detector for Gate Barriers
The PD-132 Vehicle Loop Detector is a high-performance inductive vehicle detection system designed for parking barriers, automatic gate systems, access control installations, industrial entrances, and traffic management applications throughout Dubai, Abu Dhabi, Sharjah, and across the UAE.
Using advanced inductive loop technology, the PD-132 accurately detects the presence of vehicles by monitoring changes in loop inductance. The detector is widely used in parking management systems, boom barriers, sliding gate motors, swing gates, toll collection systems, and industrial automation projects.
The detector provides fast response times, adjustable sensitivity settings, and reliable operation in demanding environments. It helps prevent barrier arms from closing on vehicles, improves access control efficiency, and enhances safety in automated vehicle entry and exit systems.
Designed for professional installations, the PD-132 supports unlimited signal holding or automatic release modes and offers stable performance with adjustable frequency and sensitivity settings for optimum vehicle detection accuracy.
Key Features
- Single channel inductive vehicle loop detector
- 230V AC power supply
- Fast 10ms response time
- Adjustable sensitivity levels
- Reliable vehicle presence detection
- Frequency adjustable operation
- Compact DIN-style housing
- Suitable for parking barriers and automatic gates
- Unlimited or timed signal hold function
- Professional industrial-grade design
Technical Specifications
- Model: PD-132
- Product Type: Inductive Vehicle Loop Detector
- Supply Voltage: 230V AC
- AC Voltage Tolerance: +10% / -15%
- DC Voltage Tolerance: ±15%
- Power Consumption: 4.5VA
- Output Relay Rating: 240V / 5A
- Reaction Time: 10ms
- Operating Frequency Range: 20kHz to 170kHz
- Sensitivity Levels: 4 Adjustable Settings
Detection Specifications
- Signal Hold Time: Unlimited or 10 Minutes Limited Mode
- Loop Inductance Range: 100μH – 300μH
- Vehicle Presence Detection
- Automatic Frequency Adjustment
- High Accuracy Vehicle Recognition
Loop Installation Specifications
- Maximum Loop Cable Length: 20 Meters
- Cable Twist Requirement: Minimum 20 Twists per Meter
- Recommended Loop Inductance: 100μH – 300μH
- Compatible with Standard Vehicle Detection Loops
Environmental Specifications
- Operating Temperature: -20°C to +65°C
- Storage Temperature: -40°C to +85°C
- Suitable for Outdoor Gate Automation Systems
Physical Specifications
- Housing Dimensions: 78 × 40 × 108 mm
- Compact Installation Design
- Industrial Grade Housing
Applications
- Parking Gate Barriers
- Vehicle Access Control Systems
- Automatic Sliding Gates
- Automatic Swing Gates
- Industrial Entrances
- Warehouse Access Systems
- Commercial Parking Facilities
- Toll Collection Systems
- Traffic Management Systems
- Security Vehicle Detection Systems
Benefits
- Accurate vehicle detection
- Prevents barrier arm collisions
- Improves gate automation safety
- Fast response performance
- Adjustable sensitivity settings
- Reliable long-term operation
- Easy integration with automation systems
- Ideal for UAE access control projects
Compatible Systems
- Boom Barrier Systems
- Automatic Gate Operators
- Parking Management Systems
- RFID Vehicle Access Systems
- Access Control Controllers
- Industrial Automation Systems
- Traffic Control Equipment
- Vehicle Security Systems
Package Includes
- 1 × PD-132 Vehicle Loop Detector
- User Manual
- Product Brochure
Why Choose PD-132 Vehicle Loop Detector?
- Professional vehicle detection technology
- Fast 10ms response time
- 230V AC operation
- Adjustable sensitivity and frequency
- Reliable industrial-grade performance
- Compatible with most gate barriers
- Easy installation and configuration
- Professional support available across UAE
Frequently Asked Questions
What is the PD-132 used for?
The PD-132 detects vehicle presence in parking barriers, automatic gates, access control systems, and traffic management applications.
What power supply does the detector require?
The PD-132 operates on a 230V AC power supply.
Can the sensitivity be adjusted?
Yes. The detector provides four adjustable sensitivity levels for different vehicle detection requirements.
What is the response time?
The detector responds to vehicle presence within approximately 10 milliseconds.
Is it suitable for gate barrier systems?
Yes. The PD-132 is specifically designed for parking barriers, automatic gates, and vehicle access control systems.
