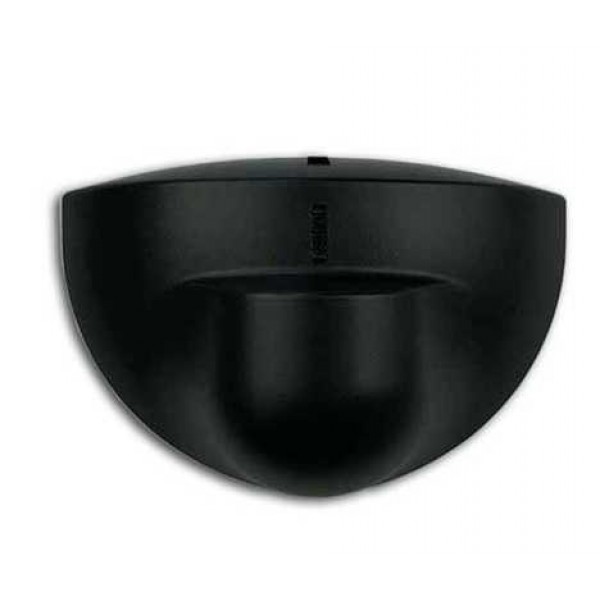

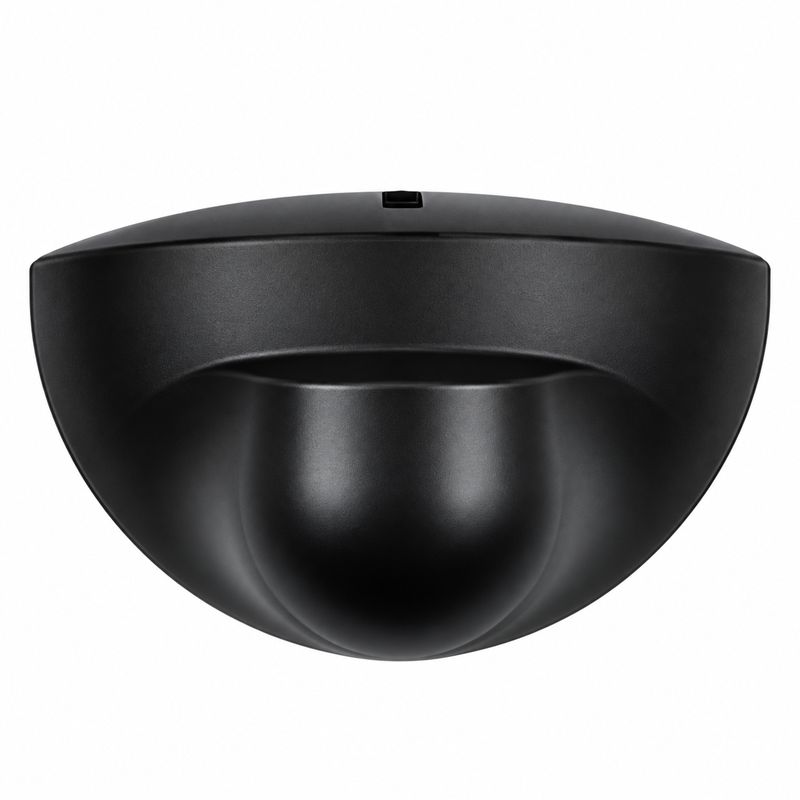

Automatic Door Microwave Radar Motion Detection Sensor
The Microwave Radar Sensor for Automatic Door Openers is a professional motion detection device designed for automatic sliding doors, automatic swing doors, access control systems, and commercial entrance automation. Utilizing advanced microwave radar technology, the sensor provides accurate motion detection and fast activation for automatic door systems.
The sensor works by transmitting microwave signals and analyzing the reflected waves. When a person or object moves within the detection area, the reflected signal changes, allowing the radar sensor to instantly activate the connected automatic door operator. This technology offers reliable performance, excellent sensitivity, and stable operation in high-traffic environments.
Designed for commercial, healthcare, hospitality, and public access applications throughout Dubai, Sharjah, Abu Dhabi, and across the UAE, the sensor ensures hands-free access, improved convenience, and smooth door automation.
Main Features
- Advanced microwave radar motion detection
- Suitable for automatic sliding and swing doors
- Fast and reliable motion activation
- Adjustable detection angle settings
- Wide voltage input support
- Low power consumption
- High sensitivity and accuracy
- Stable performance in commercial environments
- Easy installation and setup
- Compatible with most automatic door operators
Technical Specifications
- Product Type: Microwave Radar Sensor
- Operating Voltage: AC/DC 12V–24V ±10%
- Frequency: 50–60Hz
- Power Consumption: Less than 2W
- Launch Power: Less than 20 dBm EIRP
- Launch Frequency Density: Less than 5mW/cm²
- Detection Mode: Motion Detection
- Installation Height: 3–4 Meters
- Maximum Detection Area: 4 × 2 Meters
- Detection Speed: 5 cm/s
- Dimensions: 115 × 73 mm
Adjustable Detection Angles
- 15° Detection Angle
- 30° Detection Angle
- 45° Detection Angle
- 60° Detection Angle
Applications
- Automatic Sliding Doors
- Automatic Swing Doors
- Hospitals and Clinics
- Hotels and Restaurants
- Shopping Malls
- Office Buildings
- Airports and Public Buildings
- Banks and Financial Institutions
- Commercial Entrances
- Access Control Systems
Benefits
- Hands-free automatic door activation
- Reliable motion detection technology
- Suitable for high-traffic entrances
- Improves accessibility and convenience
- Low power consumption
- Professional commercial-grade performance
- Minimal maintenance requirements
- Long operational lifespan
Package Includes
- 1 × Microwave Radar Sensor
- Mounting Accessories
- User Manual
Why Choose This Microwave Radar Sensor UAE?
- Reliable microwave radar technology
- Compatible with automatic door systems
- Fast and accurate motion detection
- Easy installation and adjustment
- Suitable for commercial applications
- Stable performance in UAE environments
- Energy-efficient operation
- Professional automatic door accessory
Frequently Asked Questions
How does the microwave radar sensor work?
The sensor transmits microwave signals and detects movement by analyzing changes in reflected waves from moving objects.
Can it be used with automatic swing doors?
Yes. It is compatible with both automatic swing door operators and automatic sliding door systems.
What is the recommended installation height?
The sensor should be installed between 3 and 4 meters for optimal performance.
What is the maximum detection range?
The maximum detection area is approximately 4 × 2 meters depending on installation height and adjustment angle.
Where is this sensor commonly installed?
It is widely used in hospitals, offices, hotels, shopping malls, airports, banks, and commercial buildings.
