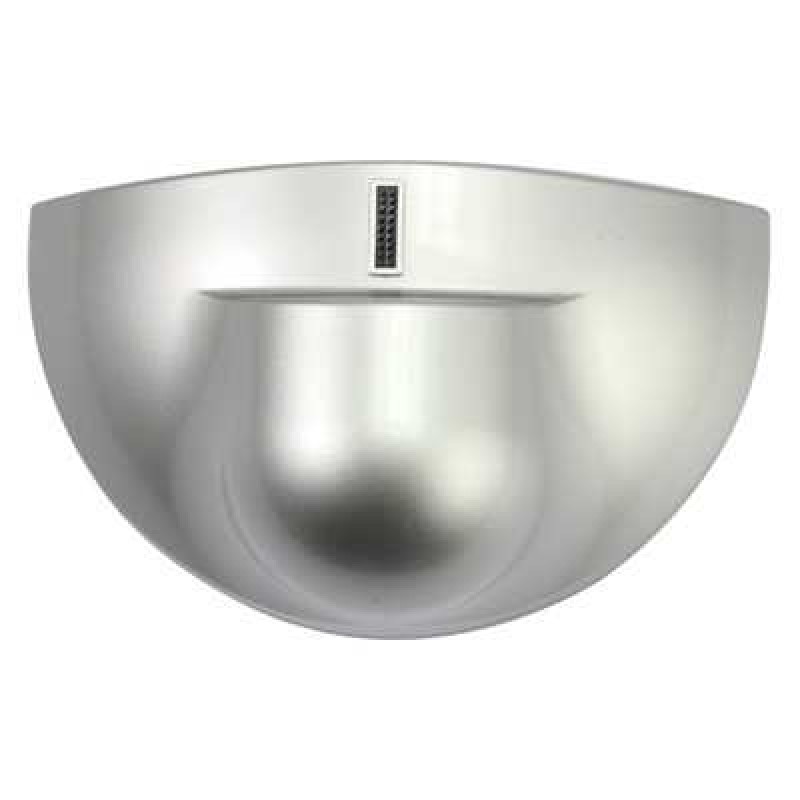

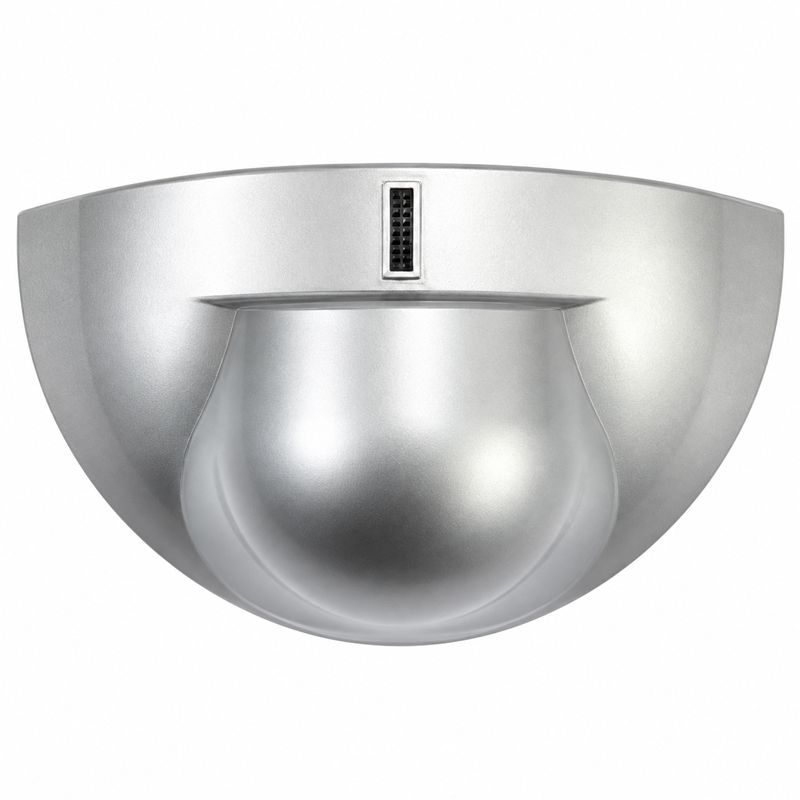

Automatic Door Activation Sensor for Sliding & Swing Doors
The Microwave Motion Sensor for Automatic Door Openers is a high-performance activation sensor designed for automatic sliding doors, automatic swing doors, access control systems, and commercial entrance automation. Using advanced microwave detection technology, the sensor accurately detects movement and activates the automatic door system quickly and reliably.
The sensor works by transmitting microwave signals and analyzing the reflected waves. When a moving object enters the detection area, the reflected signal changes and the sensor immediately triggers the automatic door operator. This technology provides highly reliable detection and excellent performance in commercial, healthcare, hospitality, and public access environments.
Designed for use in offices, hospitals, hotels, shopping malls, airports, banks, restaurants, and commercial buildings throughout Dubai, Sharjah, Abu Dhabi, and across the UAE, the sensor offers stable operation, low power consumption, and easy installation.
Main Features
- Microwave motion detection technology
- Suitable for automatic sliding and swing doors
- Fast and reliable movement detection
- Adjustable detection angle
- Wide voltage input support
- Low power consumption
- High detection accuracy
- Easy installation and setup
- Stable performance in commercial environments
- Suitable for indoor automatic door systems
Technical Specifications
- Product Type: Microwave Motion Sensor
- Operating Voltage: AC/DC 12V–24V ±10%
- Frequency: 50–60Hz
- Power Consumption: Less than 2W
- Launch Power: Less than 20 dBm EIRP
- Launch Frequency Density: Less than 5mW/cm²
- Detection Mode: Motion Detection
- Installation Height: 3–4 Meters
- Detection Area: Up to 4 × 2 m (W × H)
- Detection Speed: 5 cm/s
- Sensor Dimensions: 115 × 73 mm
Adjustable Installation Angles
- 15° Detection Angle
- 30° Detection Angle
- 45° Detection Angle
- 60° Detection Angle
Applications
- Automatic Sliding Doors
- Automatic Swing Doors
- Hospitals and Clinics
- Shopping Centers
- Hotels and Restaurants
- Office Buildings
- Banks and Financial Institutions
- Airports and Public Buildings
- Commercial Entrances
- Access Control Systems
Benefits
- Hands-free door activation
- Improves accessibility and convenience
- Reliable movement detection
- Suitable for high-traffic entrances
- Energy-efficient operation
- Low maintenance requirements
- Professional commercial-grade performance
- Compatible with most automatic door systems
Package Includes

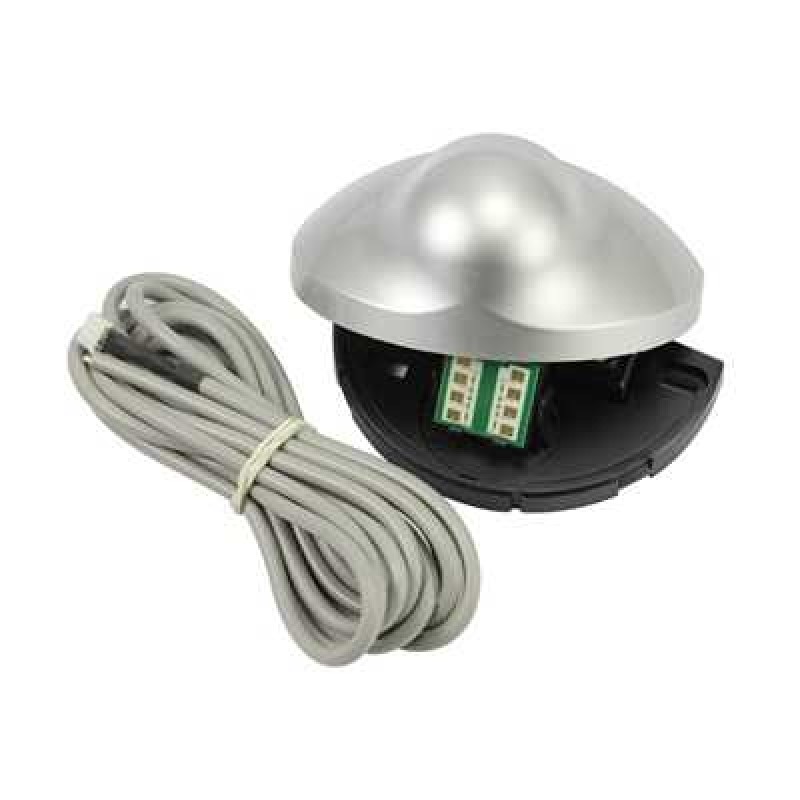

- 1 × Microwave Motion Sensor
- Mounting Accessories
- User Manual
Why Choose This Microwave Motion Sensor UAE?
- Reliable microwave detection technology
- Compatible with automatic door operators
- Fast response and accurate activation
- Suitable for commercial installations
- Low power consumption
- Easy installation and adjustment
- Designed for continuous operation
- Professional solution for automatic doors
Frequently Asked Questions
How does the microwave sensor work?
The sensor emits microwave signals and detects movement by analyzing changes in reflected waves from moving objects.
Can it be used with automatic swing doors?
Yes. It is compatible with both automatic swing doors and automatic sliding doors.
What is the installation height?
The recommended installation height is between 3 and 4 meters.
What is the maximum detection area?
The maximum detection range is approximately 4 × 2 meters depending on installation height and angle.
Where is this sensor commonly used?
It is widely used in hospitals, offices, hotels, shopping malls, airports, banks, and commercial buildings.
