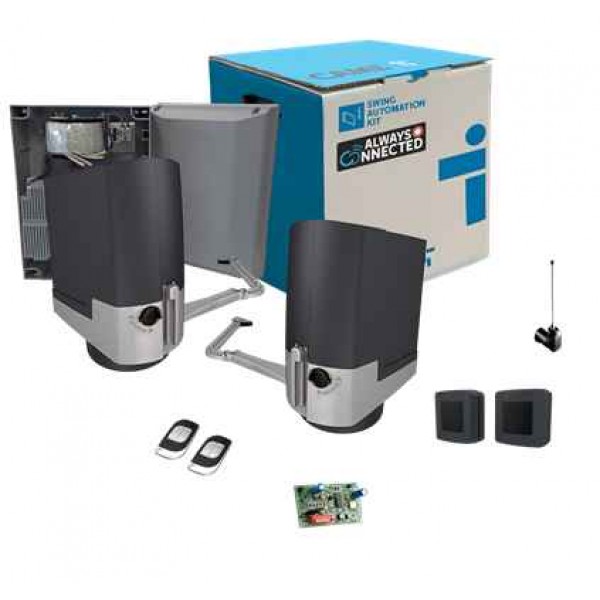

24V Articulated Arm Swing Gate Opener for Residential & Commercial Gates
The CAME FTX20DGC Swing Gate Motor is a fast and reliable automation solution designed for residential and light commercial swing gates across UAE.
Powered by an advanced 24V DC irreversible gearmotor, the FTX20DGC is ideal for gates with limited installation space, thanks to its articulated transmission arm and maximum rear mounting distance (C-max) of 150 mm.
This compact swing gate opener provides smooth, safe, and efficient operation for gate leaves up to 2 meters long and weighing up to 200 KG.
The integrated electronic control board features a function display and built-in radio decoder, allowing simple programming, remote control integration, and convenient automation management.
Its fast operating speed improves access convenience while maintaining smooth and controlled gate movement, making it ideal for villas, residential compounds, private entrances, and small commercial properties.
The durable RAL7024 grey housing and IP44 protection rating ensure reliable operation in harsh UAE weather conditions including heat, humidity, dust, and outdoor exposure.
Designed for intensive daily operation, the FTX20DGC supports up to 40 cycles per hour, making it an excellent solution for frequent-use gate automation systems.
CAME FTX20DGC Features
- 24V DC irreversible gearmotor
- Fast operation articulated arm system
- Suitable for gate leaves up to 2 meters
- Supports gate weights up to 200 KG
- Integrated electronic control board
- Built-in function display
- Integrated radio decoder
- Articulated arm for compact installations
- Maximum rear space (C-max) 150 mm
- Smooth and safe gate movement
- Suitable for residential and light commercial use
Technical Specifications
- Product Code: 801MB-0130
- Model: FTX20DGC
- Power Supply: 230V AC 50/60Hz
- Motor Voltage: 24V DC
- Maximum Current Absorption: 4A
- Power Consumption: 140W
- Opening Time at 90°: 13–30 Seconds
- Duty Cycle: 40 Cycles Per Hour
- Thrust Force: 180 N
- Operating Temperature: -20°C to +55°C
- Protection Rating: IP44
- Maximum Gate Leaf Length: 2 m
- Maximum Gate Weight: 200 KG
- Maximum Rear Space (C-max): 150 mm
Applications
- Residential villa swing gates
- Private home entrances
- Small compound gates
- Light commercial swing gates
- Apartment entrances
- Remote-controlled gate systems
- Gates with limited rear installation space
- Automatic access control systems
Why Choose CAME FTX20DGC UAE?
- Compact articulated arm design
- Perfect for limited installation space
- Integrated control board and radio decoder
- Fast and smooth gate operation
- Reliable performance for daily use
- Weather-resistant IP44 protection
- Professional installation support across UAE
Frequently Asked Questions
What gate size can the CAME FTX20DGC support?
The CAME FTX20DGC is suitable for swing gate leaves up to 2 meters long and weighing up to 200 KG.
What is the advantage of the articulated arm design?
The articulated arm system is ideal for installations with limited rear space and provides smooth gate movement without requiring large mounting distances.
Does the motor include a built-in control board?
Yes, the FTX20DGC includes an integrated electronic control board, function display, and built-in radio decoder.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
