230V Articulated Arm Swing Gate Opener for Residential & Commercial Gates

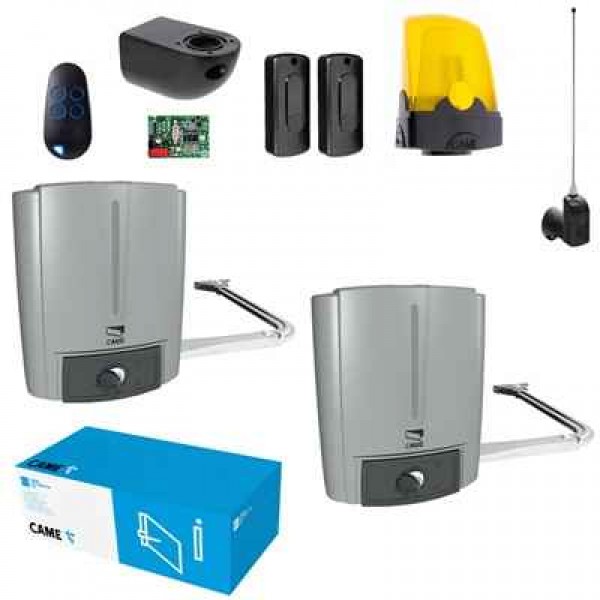

The CAME FAST FA70230 Swing Gate Motor is a powerful and reliable automation solution designed for residential and light commercial swing gates across UAE.
Powered by a robust 230V irreversible gearmotor, the FA70230 delivers smooth, secure, and efficient gate operation for gate leaves up to 2.3 meters long and weighing up to 200 KG.
The articulated hinged transmission arm is specifically designed for installations with limited mounting space, supporting a maximum C dimension of 200 mm while maintaining smooth and consistent gate movement.
With a fast opening time of approximately 15 seconds at 90°, the CAME FAST FA70230 provides convenient access and reliable daily operation for villas, residential compounds, private entrances, and small commercial properties.
The heavy-duty aluminum housing offers excellent strength and durability while protecting internal components from harsh outdoor environments.
Designed to withstand UAE weather conditions including heat, dust, humidity, and outdoor exposure, the motor features an IP54 protection rating and built-in thermal protection for dependable long-term performance.
The strong internal mechanical system provides excellent resistance against wind loads, daily wear, and intensive gate operation.
CAME FAST FA70230 Features
- 230V irreversible gearmotor
- Articulated hinged transmission arm
- Suitable for gate leaves up to 2.3 meters
- Supports gate weights up to 200 KG
- Maximum C dimension of 200 mm
- Fast opening time of 15 seconds
- Heavy-duty aluminum housing
- Smooth and reliable gate movement
- Built-in thermal motor protection
- IP54 weather-resistant protection
- Suitable for residential and light commercial use
Technical Specifications
- Product Code: 001FA70230
- Model: FAST FA70230
- Power Supply: 230V AC 50/60Hz
- Motor Voltage: 230V AC
- Current Absorption: 1.4 A
- Power Consumption: 160 W
- Opening Time at 90°: 15 Seconds
- Duty Cycle: 30%
- Operating Temperature: -20°C to +55°C
- Motor Thermal Protection: 150°C
- Protection Rating: IP54
- Maximum Gate Leaf Length: 2.3 m
- Maximum Gate Weight: 200 KG
- Maximum C Dimension: 200 mm
Applications
- Residential villa swing gates
- Compound entrance gates
- Private home entrances
- Small commercial gate automation
- Apartment building gates
- Light industrial swing gates
- Remote-controlled access systems
- Automatic swing gate installations
Why Choose CAME FAST FA70230 UAE?
- Fast and smooth gate operation
- Ideal for limited installation spaces
- Reliable articulated arm technology
- Strong aluminum housing construction
- Weather-resistant IP54 protection
- Designed for UAE climate conditions
- Professional installation support across UAE
Frequently Asked Questions
What gate size can the CAME FAST FA70230 support?
The CAME FAST FA70230 is suitable for swing gate leaves up to 2.3 meters long and weighing up to 200 KG.
What is the advantage of the articulated arm system?
The articulated arm design allows installation in locations with limited mounting space while maintaining smooth and reliable gate movement.
Is this motor suitable for outdoor use in UAE?
Yes, the motor features IP54 protection and is designed to withstand UAE heat, dust, and outdoor weather conditions.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
