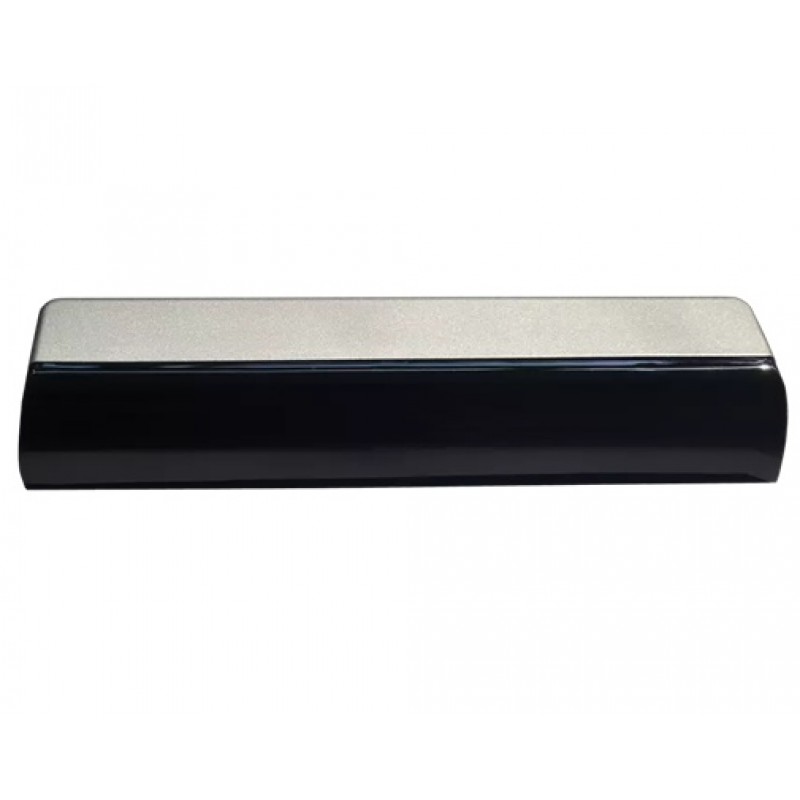

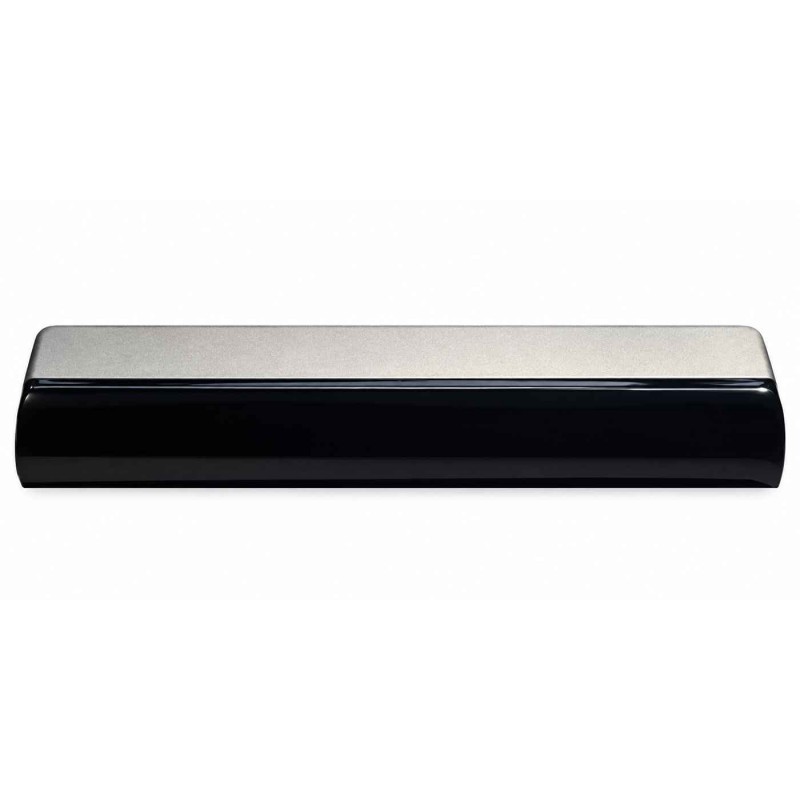

2-in-1 Radar & Infrared Sensor for Automatic Sliding Doors
BEA ZENSAFE Opening & Safety Sensor is a professional dual-technology automatic door sensor designed for sliding glass doors, commercial entrances, industrial automatic doors, and pedestrian access systems across UAE.
The BEA ZENSAFE combines microwave radar motion detection and active infrared safety technology into one compact device, delivering both automatic door activation and pedestrian safety protection.
This advanced 2-in-1 sensor provides smooth and reliable door opening while ensuring user protection through intelligent infrared safety curtain monitoring.
The integrated microwave radar technology supports bidirectional motion detection for accurate automatic door activation and smooth pedestrian traffic management.
The active infrared safety system includes one safety curtain with 24 infrared spots, providing reliable presence detection and enhanced safety around automatic sliding doors.
The adjustable infrared curtain angle allows flexible installation and precise safety field configuration according to entrance size and environmental conditions.
Designed with high-stability planar antenna technology, the BEA ZENSAFE delivers reliable motion detection and stable daily operation in commercial and industrial environments.
The intelligent detection system helps reduce unnecessary door openings, improving energy efficiency and minimizing heat loss in high-traffic buildings.
This professional automatic door sensor eliminates the need for separate opening and safety sensors, helping reduce installation cost and simplifying automation system integration.
Built with compact and durable ABS housing and IP54 protection rating, the BEA ZENSAFE provides dependable indoor and outdoor operation in demanding environments.
The BEA ZENSAFE is ideal for automatic sliding glass doors, shopping malls, retail stores, hospitals, clinics, office buildings, commercial entrances, hotels, airports, and industrial automatic door systems.
Suitable for commercial entrances, healthcare facilities, retail stores, office buildings, industrial doors, and high-traffic pedestrian access systems, the BEA ZENSAFE combines intelligent radar activation, infrared safety protection, and professional automatic door performance for installations across Dubai, Sharjah, Abu Dhabi, Ajman, Fujairah, Ras Al Khaimah, Umm Al Quwain, Al Ain, and all UAE.
BEA ZENSAFE Features
- Opening and safety combined in one sensor
- Microwave radar + active infrared technology
- Bidirectional motion detection
- 24 infrared safety spots
- Adjustable infrared safety curtain
- Reliable motion and presence detection
- Energy-efficient automatic door operation
- Compact and durable ABS housing
- Easy installation and configuration
- Suitable for automatic sliding doors
- High stability planar antenna technology
- IP54 protection rating
Applications
- Automatic sliding glass doors
- Commercial building entrances
- Shopping malls and retail stores
- Hospitals and clinics
- Office buildings
- Industrial automatic doors
- Hotel entrance systems
- Pedestrian access systems
Technical Specifications
- Model: ZENSAFE
- Brand: BEA
- Technology: Microwave + Active Infrared
- Frequency: 24.150 GHz
- Detection Mode: Motion & Presence
- Minimum Detection Speed: 5 cm/s
- Power Supply: 12–24V AC / 12–30V DC
- Power Consumption: Less than 3W
- Output Type: Relay (NO/NC/COM)
- Maximum Voltage: 42V AC/DC
- Maximum Current: 1A
- Mounting Height: 1.8m to 3m
- Protection Rating: IP54
- Operating Temperature: -25°C to +55°C
- Detection Field: Up to 4m × 2m
- Material: ABS
- Weight: 215g
Package Includes
- 1 x BEA ZENSAFE Sensor
- Mounting Accessories
- User Manual
Why Choose BEA ZENSAFE UAE?
- Opening and safety combined in one device
- Reduces installation cost
- Reliable dual-technology detection
- Energy-efficient automatic door operation
- Ideal for high-traffic entrances
- Compact and professional design
- Professional installation support across UAE
