Laser Safety Sensor for Automatic Swing Door Protection

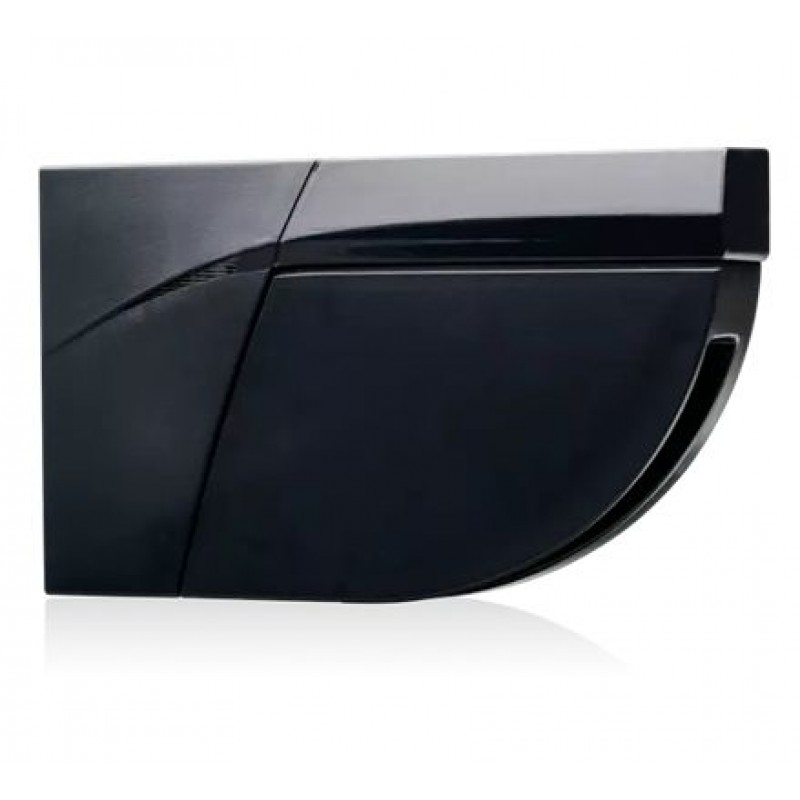

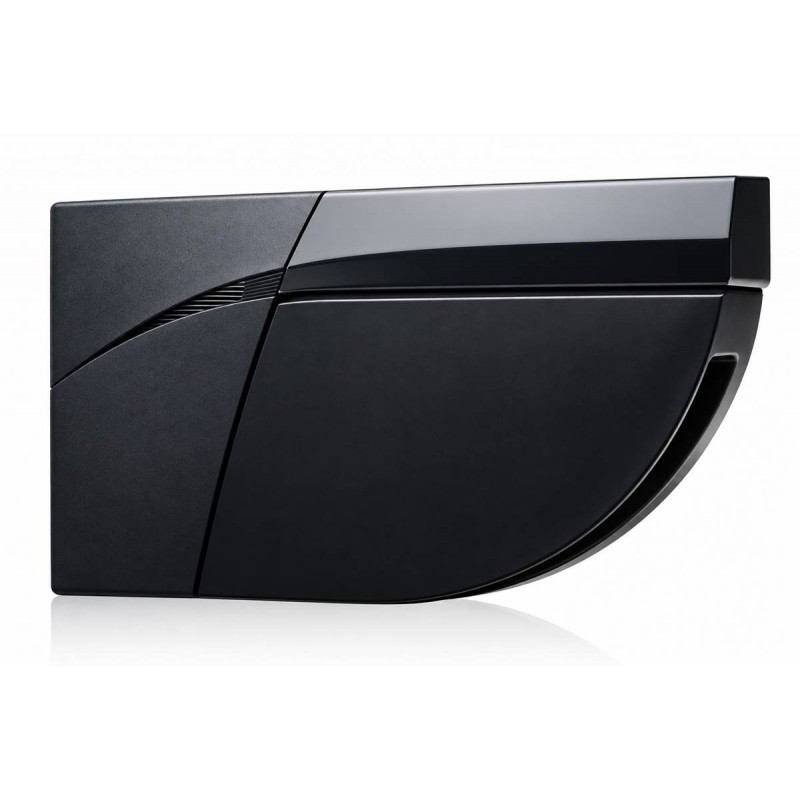

BEA LZR-FLATSCAN SW Safety Sensor is an advanced laser-based protection sensor designed for automatic swing doors, commercial entrances, healthcare facilities, industrial access systems, and controlled access automation across UAE.
The BEA LZR-FLATSCAN SW uses Time-of-Flight laser technology to provide highly accurate presence detection and complete safety coverage for automatic swing door systems.
This professional swing door safety sensor generates up to 170 detection points, ensuring reliable monitoring of the door leaf and hinge area to help prevent accidents and improve user safety.
The BEA LZR-FLATSCAN SW features advanced Finger Detection Technology™ for pinch-zone protection, helping reduce the risk of finger injuries and improving operational safety around automatic swing doors.
Designed for high-traffic commercial and healthcare environments, the sensor delivers fast response times and dependable safety performance for automatic entrance systems.
The BEA LZR-FLATSCAN SW can operate as a standalone safety sensor or as a reactivation sensor, providing flexible integration with automatic swing door automation systems.
Unlike conventional safety sensors, the FLATSCAN SW operates independently of floor type, lighting conditions, and surrounding environments, ensuring stable and reliable performance in different installation conditions.
The compact sensor design allows professional and discreet installation while maintaining accurate door leaf and hinge-area safety monitoring.
Built with durable housing and IP54 protection rating, the BEA LZR-FLATSCAN SW provides dependable indoor and outdoor performance in commercial and industrial environments.
This laser safety sensor is ideal for hospitals, healthcare facilities, shopping malls, office buildings, retail stores, airports, industrial entrances, and controlled access areas where safety and reliability are critical.
Suitable for commercial automatic swing doors, hospital entrances, office access systems, industrial doors, and retail automation applications, the BEA LZR-FLATSCAN SW combines advanced laser detection technology, high-speed safety response, and professional swing door protection performance for installations across Dubai, Sharjah, Abu Dhabi, Ajman, Fujairah, Ras Al Khaimah, Umm Al Quwain, Al Ain, and all UAE.
BEA LZR-FLATSCAN SW Features
- Laser Time-of-Flight safety detection
- 170 detection points
- Complete door leaf coverage
- Hinge-area protection
- Advanced Finger Detection Technology™
- Standalone safety sensor operation
- Reactivation sensor functionality
- Independent of floor type and surroundings
- Fast response time
- Compact and professional design
- Reliable commercial safety performance
- IP54 protection rating
- Suitable for automatic swing doors
Applications
- Automatic swing doors
- Hospitals and healthcare facilities
- Commercial entrances
- Office buildings
- Shopping malls and retail stores
- Industrial doors
- Controlled access systems
- Automatic entrance automation
Technical Specifications
- Model: LZR-FLATSCAN SW
- Brand: BEA
- Technology: Laser Time-of-Flight
- Detection Points: 170
- Detection Mode: Presence Detection
- Power Supply: 12–24V DC ±15%
- Power Consumption: ≤ 2W
- Door Wing Safety Response Time: ≤ 50 ms
- Pinch Zone Safety Response Time: ≤ 90 ms
- Output: 2 Electronic Relays (NO/NC)
- Maximum Voltage: 42V AC/DC
- Maximum Current: 100mA
- Detection Range: Up to 4 Meters
- Protection Rating: IP54
- Operating Temperature: -30°C to +60°C
- Dimensions: Approx. 85 × 142 mm
- Connector Type: Standard Interface
Package Includes
- 1 x BEA LZR-FLATSCAN SW Safety Sensor
- 1 x Mounting Base
- 1 x Connection Cable
- 1 x User Manual
Why Choose BEA LZR-FLATSCAN SW UAE?
- Complete swing door safety coverage
- Advanced finger protection technology
- Fast and accurate laser detection
- Reliable operation in all environments
- Compact and easy installation
- Professional commercial safety solution
- Professional installation support across UAE
