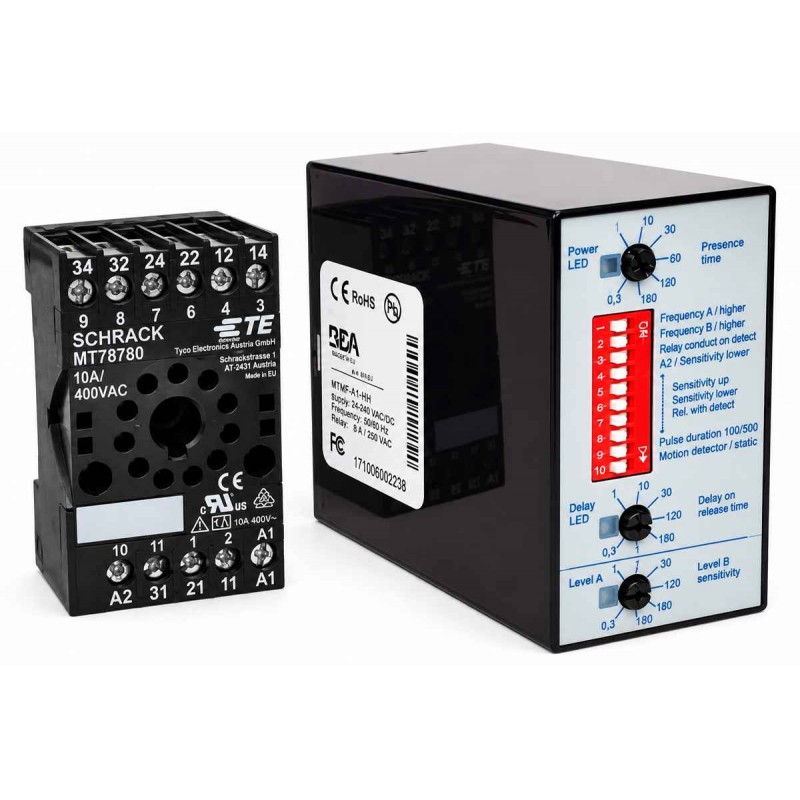

220V Single Channel Vehicle Detection Loop Detector for Parking Barriers & Gate Automation
BEA MATRIX-S220 Loop Detector is a professional inductive vehicle detection controller designed for parking barriers, automatic sliding gates, swing gate systems, industrial doors, and vehicle access automation applications across UAE.
The BEA MATRIX-S220 provides accurate and reliable vehicle detection using advanced single-loop inductive technology for residential, commercial, and industrial automation systems.
This professional loop detector supports one independent detection loop and is ideal for parking barrier systems, automatic gate automation, industrial access control, and traffic management applications.
The BEA MATRIX-S220 operates directly on 220–240V AC power supply, eliminating the need for additional transformers and simplifying installation for parking barriers and gate automation systems.
Designed with automatic tuning functionality, the detector simplifies setup while maintaining stable long-term vehicle detection performance in demanding environments.
The loop detector supports both presence detection mode and pulse detection mode for flexible automation control and vehicle management applications.
Built with adjustable presence timing from 1 minute to infinite hold time, the MATRIX-S220 provides configurable vehicle detection according to traffic management and automation requirements.
The detector supports pulse output timing options of 100 ms and 500 ms for integration with parking barriers, automatic gates, industrial automation systems, and access control equipment.
Automatic Sensitivity Boost (ASB) technology improves vehicle detection reliability for different vehicle types and challenging industrial environments.
The fast 25 ms reaction time ensures responsive and accurate vehicle detection performance for high-traffic parking and gate automation systems.
LED indicators provide clear operational diagnostics with dedicated power and loop status monitoring for simple installation and troubleshooting.
Designed with high immunity against electrical interference, the BEA MATRIX-S220 delivers dependable operation and stable performance in UAE outdoor and industrial environments.
The standard 11-pin plug-in base allows easy integration with parking barriers, boom gates, sliding gate motors, industrial doors, and traffic management systems.
Suitable for parking barriers, boom gates, sliding gate systems, swing gate automation, industrial doors, loading bays, access control systems, and traffic management applications, the BEA MATRIX-S220 combines stable vehicle sensing, reliable automation control, and professional industrial performance for installations across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and all UAE.
BEA MATRIX-S220 Features
- Single channel vehicle loop detector
- Direct 220–240V AC power supply
- Automatic tuning functionality
- Presence and pulse detection modes
- Adjustable presence timing
- 100 ms and 500 ms pulse outputs
- Automatic Sensitivity Boost (ASB)
- Fast reaction time
- LED status indicators
- High interference immunity
- Standard 11-pin plug-in connection
- Reliable long-term vehicle detection
- Compatible with major automation brands
Applications
- Parking barrier systems
- Boom gate automation
- Automatic sliding gate systems
- Swing gate automation
- Industrial doors and loading bays
- Access control systems
- Traffic management systems
- Vehicle detection automation
Technical Specifications
- Model: MATRIX-S220
- Brand: BEA
- Technology: Inductive Loop Detection
- Channels: Single Channel
- Power Supply: 230V AC ±10%
- Detection Modes: Presence / Pulse
- Presence Time: 1 Minute to Infinite
- Pulse Output Timing: 100 ms / 500 ms
- Inductance Range: 20 µH – 1000 µH
- Frequency Range: 20 kHz – 130 kHz
- Sensitivity Adjustment: 0.005% – 0.5%
- Reaction Time: Approx. 25 ms
- Power Consumption: Less than 2.5W
- Outputs: 2 Relay Outputs (5A Max)
- Protection Rating: IP40
- Operating Temperature: -30°C to +40°C
- Storage Temperature: -30°C to +70°C
- Connector Type: 11-pin Round Base
- Dimensions: 77 × 40 × 75 mm
- Weight: Less than 200g
Package Includes
- 1 x BEA MATRIX-S220 Loop Detector
- 1 x User Manual
- 1 x 11-pin Base
Why Choose BEA MATRIX-S220 UAE?
- Direct 220V AC operation
- Stable and reliable vehicle detection
- High sensitivity for all vehicle types
- Easy installation with automatic tuning
- Reliable performance in UAE conditions
- Compatible with major automation brands
- Professional installation support across UAE
