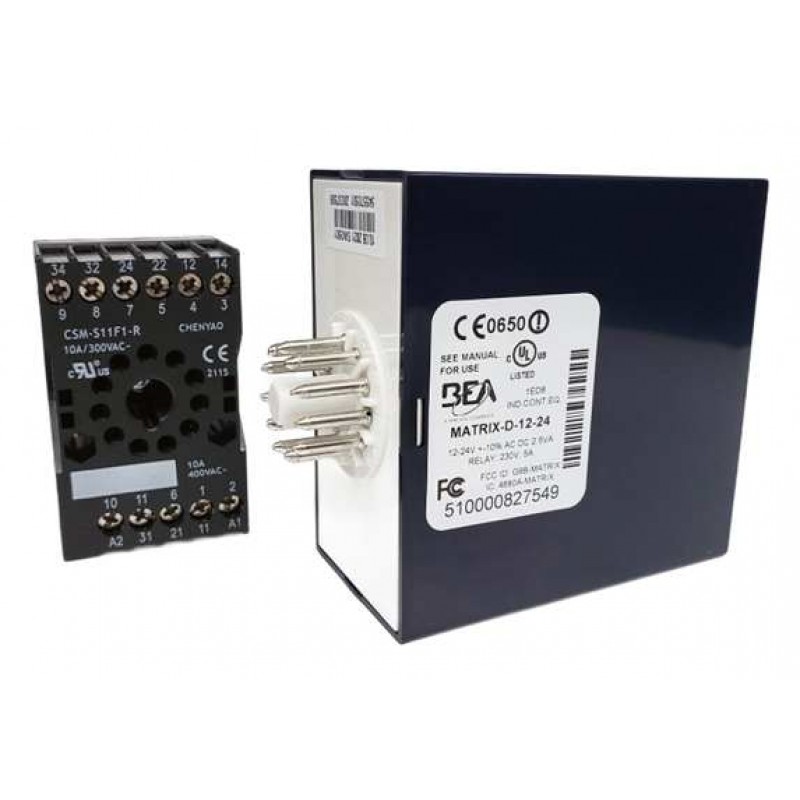

Single Channel Vehicle Detection Loop Detector for Parking Barriers & Gate Automation
BEA MATRIX-S12-24 Single Channel Loop Detector is a professional inductive vehicle detection controller designed for parking barriers, automatic sliding gates, swing gate systems, industrial doors, and vehicle access automation applications across UAE.
The BEA MATRIX-S12-24 provides accurate and stable vehicle detection using advanced single-loop inductive technology for residential, commercial, and industrial automation systems.
This professional loop detector supports one independent detection loop and is ideal for parking barrier systems, automatic gate automation, industrial access control, and commercial vehicle detection applications.
The BEA MATRIX-S12-24 operates with universal 12–24V AC/DC power supply compatibility for flexible installation with parking barriers, boom gates, sliding gates, and automation systems.
Designed with automatic tuning functionality, the detector simplifies installation and setup while maintaining reliable long-term detection performance in demanding environments.
The loop detector supports both presence detection mode and pulse detection mode for flexible vehicle control and automation management.
Built with adjustable presence timing from 1 minute to infinite hold time, the MATRIX-S12-24 provides configurable vehicle management according to project requirements.
The detector supports pulse output timing options of 100 ms and 500 ms for integration with parking barriers, access systems, and traffic automation equipment.
Automatic Sensitivity Boost technology improves vehicle detection reliability for different vehicle types and demanding industrial environments.
The fast 25 ms reaction time ensures responsive and accurate vehicle detection performance for high-traffic automation systems.
LED indicators provide simple operational diagnostics with green power indication and red loop status monitoring for easy installation and troubleshooting.
Designed with advanced protection systems including loop insulation transformer, Zener diodes, and gas discharge clamping, the MATRIX-S12-24 delivers reliable protection against electrical interference and voltage surges.
Built with compact and durable construction, the BEA MATRIX-S12-24 provides dependable operation in UAE outdoor and industrial environments.
Suitable for parking barriers, boom gates, sliding gate systems, swing gate automation, industrial doors, loading bays, commercial access systems, and vehicle detection automation, the BEA MATRIX-S12-24 combines stable vehicle sensing, reliable automation control, and professional industrial performance for installations across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and all UAE.
BEA MATRIX-S12-24 Features
- Single channel vehicle loop detector
- 12–24V AC/DC universal power supply
- Automatic tuning functionality
- Presence and pulse detection modes
- Adjustable presence timing
- 100 ms and 500 ms pulse outputs
- Automatic Sensitivity Boost
- Fast 25 ms reaction time
- LED status indicators
- Strong surge and interference protection
- Compact and durable design
- Reliable long-term detection performance
- Compatible with major automation brands
Applications
- Parking barrier systems
- Boom gate automation
- Automatic sliding gates
- Swing gate systems
- Industrial doors and loading bays
- Commercial access control
- Vehicle detection systems
- Parking automation systems
Technical Specifications
- Model: MATRIX-S12-24
- Brand: BEA
- Technology: Inductive Loop Detection
- Channels: Single Channel
- Tuning: Automatic
- Detection Modes: Presence / Pulse
- Presence Time: 1 Minute to Infinite
- Pulse Output Timing: 100 ms / 500 ms
- Inductance Range: 20 µH – 1000 µH
- Frequency Range: 20 kHz – 130 kHz
- Frequency Steps: 4
- Sensitivity Adjustment: 0.005% – 0.5%
- Reaction Time: 25 ms
- Power Supply: 12–24V AC/DC
- Mains Frequency: 48 – 62 Hz
- Power Consumption: Less than 2.5W
- Protection Rating: IP40
- Operating Temperature: -30°C to +40°C
- Storage Temperature: -30°C to +70°C
- Connector Type: 11-pin Round (86CP11)
- Dimensions: 77 × 40 × 75 mm
- Weight: Less than 200g
Package Includes
- 1 x BEA MATRIX-S12-24 Loop Detector
- 1 x User Manual
- 1 x 11-pin Base Connector
Why Choose BEA MATRIX-S12-24 UAE?
- Stable long-term vehicle detection
- High sensitivity for all vehicle types
- Reliable operation in UAE conditions
- Easy installation with automatic tuning
- Strong surge protection system
- Compatible with major automation brands
- Professional installation support across UAE
