Advanced 3D Laser Vehicle Detection Sensor for Barriers & Gate Automation

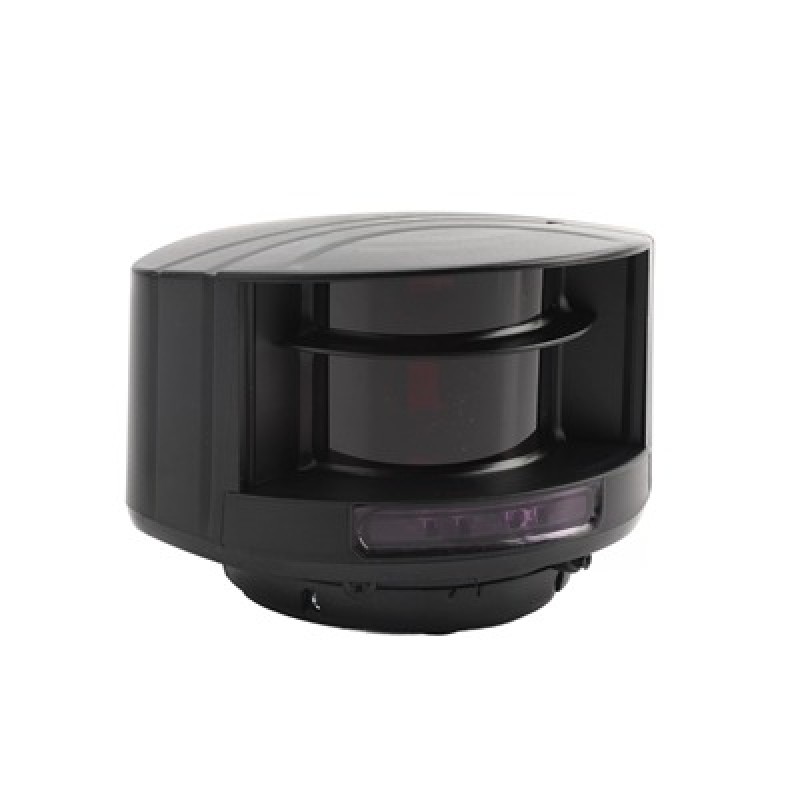

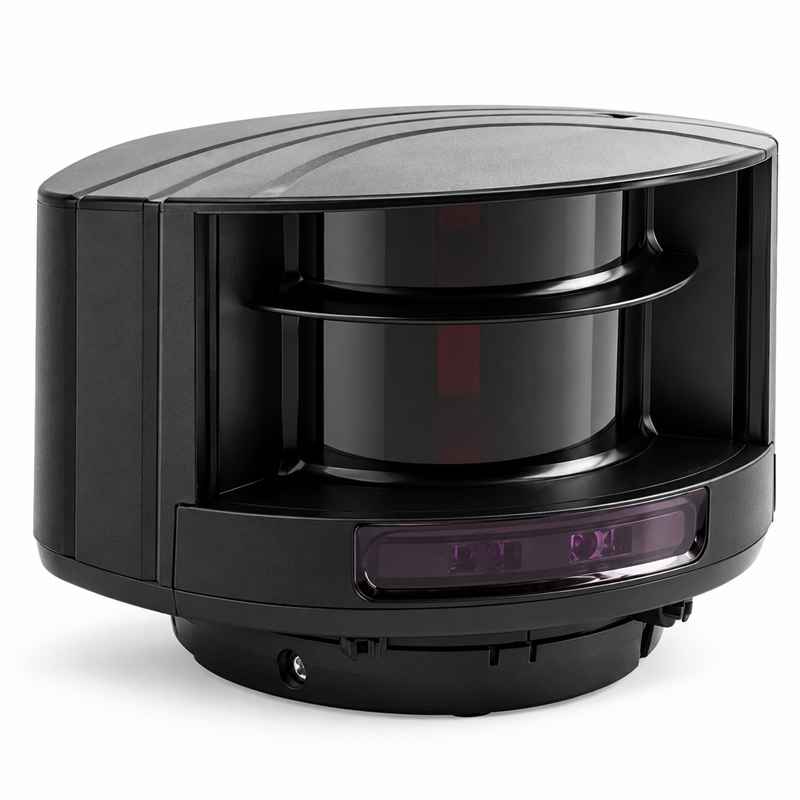

BEA LZR-H100 3D Laser Scanner is a professional vehicle detection sensor designed for rising boom barriers, automatic sliding gates, industrial gate systems, parking automation, and vehicle access control applications across UAE.
The BEA LZR-H100 uses advanced Time-of-Flight laser technology to create four laser detection curtains, providing accurate 3D motion and presence detection for vehicles and automation systems.
This high-performance laser scanner is an excellent replacement for traditional inductive loop detectors, eliminating the need for ground cutting and simplifying installation for parking barriers and automatic gate systems.
The BEA LZR-H100 provides large-area detection coverage up to 9.9 meters × 9.9 meters, making it suitable for commercial parking systems, industrial vehicle entrances, toll systems, logistics facilities, and high-security automation environments.
Designed for reliable detection of all vehicle types including cars, trucks, vans, and electric vehicles, the LZR-H100 ensures stable and accurate vehicle presence monitoring.
The integrated direction and trajectory detection functionality improves traffic flow management and automation efficiency in high-traffic vehicle access systems.
The BEA LZR-H100 features intelligent pedestrian and cross-traffic filtering technology, helping reduce false triggering and improving overall automation reliability.
Built with dual electronic relay outputs, the scanner supports integration with parking barriers, gate motors, industrial automation systems, and access control management systems.
The compact and durable design allows easy installation without cutting concrete or asphalt, reducing installation time, maintenance requirements, and overall project costs.
Designed for harsh outdoor environments, the BEA LZR-H100 features IP65 protection rating and reliable operation in extreme temperatures and demanding UAE weather conditions.
This professional laser scanner is ideal for rising boom barriers, parking management systems, industrial gate automation, toll systems, logistics centers, vehicle access control, and high-security commercial installations.
Suitable for parking barriers, industrial sliding gates, toll systems, logistics facilities, commercial parking systems, warehouses, factories, and smart vehicle access automation, the BEA LZR-H100 combines advanced 3D laser detection technology, accurate vehicle sensing, and professional automation performance for installations across Dubai, Sharjah, Abu Dhabi, Ajman, Fujairah, Ras Al Khaimah, Umm Al Quwain, Al Ain, and all UAE.
BEA LZR-H100 Features
- 3D laser vehicle detection scanner
- Time-of-Flight laser technology
- 4 laser detection curtains
- Motion and presence detection
- Large detection area up to 9.9m × 9.9m
- Replacement for loop detectors
- No ground cutting required
- Vehicle trajectory and direction detection
- Pedestrian and cross-traffic filtering
- Dual relay outputs
- Easy installation and retrofit
- Reliable outdoor operation
- IP65 weather protection
- Suitable for industrial vehicle access systems
Applications
- Rising boom barriers
- Parking barrier systems
- Automatic sliding gate systems
- Industrial gate automation
- Toll systems and traffic control
- Commercial parking systems
- High-security vehicle detection zones
- Smart parking automation
Technical Specifications
- Model: LZR-H100
- Brand: BEA
- Technology: Laser Scanner (Time-of-Flight)
- Detection Mode: Motion & Presence
- Detection Area: Up to 9.9m × 9.9m
- Angular Resolution: 0.3516°
- IR Laser Type: 905 nm (Class 1)
- Visible Laser Type: 635 nm (Class 2)
- Power Supply: 10–35V DC
- Power Consumption: Less than 5W
- Motion Response Time: Approx. 200 ms
- Presence Response Time: Approx. 20 ms
- Output: 2 Electronic Relays (NO/NC)
- Protection Rating: IP65
- Operating Temperature: -30°C to +60°C
- Dimensions: 125 × 93 × 70 mm
- Housing Material: PC/ASA
Package Includes
- 1 x BEA LZR-H100 3D Laser Scanner
- 1 x Mounting Bracket
- 1 x Connection Cable
- Installation Accessories
Why Choose BEA LZR-H100 UAE?
- No concrete or asphalt cutting required
- Advanced 3D vehicle detection technology
- Reliable detection for all vehicle types
- Suitable for harsh UAE outdoor conditions
- Advanced traffic filtering functionality
- Fast and easy installation
- Professional installation support across UAE
