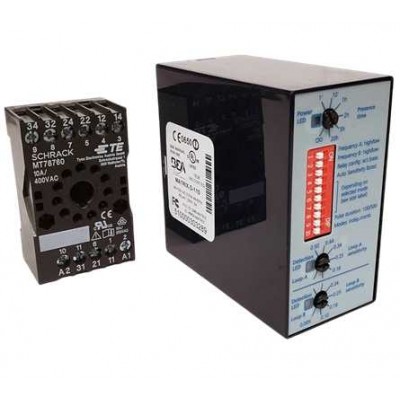

BEA MATRIX-S220 Loop Detector 220V Supplier in UAE Dubai

BEA MATRIX-S220 Loop Detector 220V Supplier in UAE

• The BEA MATRIX-S220 is a single loop inductive detector powered by 220–240V AC,
• designed for detecting vehicles and metallic objects in automation systems.
• It is widely used in parking barriers, industrial doors, and gate automation,
• offering stable long-term detection performance even in high-traffic environments.

Key Features:

• Single channel loop detector (1 loop)
• Power supply: 220–240V AC
• Automatic tuning for easy setup
• Presence & pulse detection modes
• Adjustable presence time (1 min to infinite)
• Pulse output: 100 ms / 500 ms
• Automatic sensitivity boost (ASB)
• Fast reaction time (~25 ms)
• LED indicators (power & loop status)
• High immunity against interference
• Standard 11-pin plug-in connection

Technical Specifications:

• Technology: Inductive loop
• Power Supply: 230V AC ±10%
• Detection Mode: Presence / Pulse
• Presence Time: 1 minute to infinite
• Pulse Time: 100 ms / 500 ms
• Inductance Range: 20 µH – 1000 µH
• Frequency Range: 20 kHz – 130 kHz
• Sensitivity: 0.005% – 0.5% adjustable
• Reaction Time: ~25 ms
• Power Consumption: < 2.5 W
• Output: 2 relay outputs (5A max)
• Protection Rating: IP40
• Operating Temperature: -30°C to +40°C
• Storage Temperature: -30°C to +70°C
• Connector: 11-pin round base
• Dimensions: 77 × 40 × 75 mm
• Weight: < 200 g

Applications in UAE:

• Parking barrier / boom gate systems
• Automatic sliding gate systems
• Swing gate automation
• Industrial doors & loading bays
• Access control systems
• Traffic management systems

Why Choose BEA MATRIX-S220?

• Direct 220V AC operation (no transformer required)
• Stable and reliable vehicle detection
• High sensitivity for all vehicle types
• Easy installation with automatic tuning
• Compatible with all major automation brands

Package Includes:

• BEA MATRIX-S220 Loop Detector
• User Manual
• 11-pin Base
