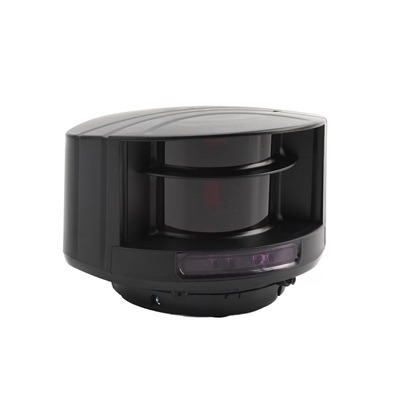

BEA LZR-H100 3D Laser Scanner for Rising Barriers & Gates in UAE

• The BEA LZR-H100 is a high-performance 3D laser scanner specifically
• designed for rising barriers and gate automation systems.
• Using time-of-flight laser technology, it creates four laser curtains
• forming a precise 3D detection field for vehicle detection,
• presence sensing, and safety protection.
• It is an excellent alternative to traditional loop detectors,
• eliminating the need for ground cutting and simplifying installation.

Key Features:

• 3D laser scanner with 4 detection curtains
• Motion & presence detection
• Large detection area up to 9.9 m × 9.9 m
• Ideal replacement for loop detectors
• Detects all vehicle types (cars, trucks, EVs)
• Direction & trajectory detection
• Pedestrian and cross-traffic filtering
• Dual relay outputs for control systems
• Easy installation (no ground cutting required)
• High outdoor durability (IP65 rated)

Technical Specifications:

• Technology: Laser scanner (Time-of-Flight)
• Detection Mode: Motion & Presence
• Detection Range: Up to 9.9 m × 9.9 m
• Angular Resolution: 0.3516°
• Laser Type:
• IR Laser: 905 nm (Class 1)
• Visible Laser: 635 nm (Class 2)
• Power Supply: 10–35V DC
• Power Consumption: < 5 W
• Response Time:
• Motion: ~200 ms
• Presence: ~20 ms
• Output: 2 electronic relays (NO/NC)
• Protection Rating: IP65 (outdoor use)
• Operating Temperature: -30°C to +60°C
• Dimensions: 125 × 93 × 70 mm
• Material: PC/ASA

Applications in UAE:

• Rising boom barriers
• Parking barrier systems
• Automatic sliding gate systems
• Industrial gate automation
• Toll systems & traffic control
• High-security vehicle detection zones
• Why Choose BEA LZR-H100?
• No need for loop cutting (faster installation)
• 3D detection for maximum safety
• Accurate detection of all vehicle types
• Reliable in UAE outdoor conditions
• Advanced filtering (pedestrians & cross traffic)

Package Includes:

• BEA LZR-H100 Laser Scanner
• Mounting Bracket
• Connection Cable
• Installation Accessories
