BEA LZR-FLATSCAN SW Sensor Supplier in UAE Swing Door

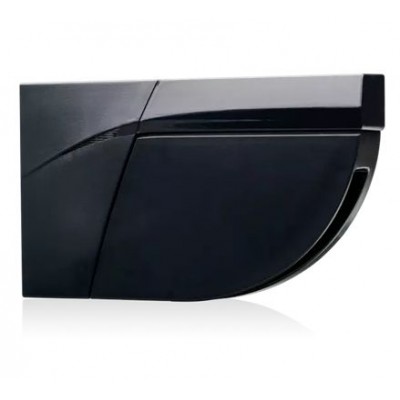

BEA LZR-FLATSCAN SW Safety Sensor for Swing Doors in UAE

• The BEA LZR-FLATSCAN SW is an advanced laser safety sensor
• using time-of-flight technology to protect automatic swing doors.
• It generates up to 170 detection points,
• ensuring complete coverage of the door leaf and hinge area,
• preventing accidents and improving user safety.
• This sensor is ideal for high-traffic
• environments where safety and reliability are critical.

Key Features:

• Laser-based Time-of-Flight detection
• Single detection curtain with 170 detection points
• Full coverage of door leaf and hinge area
• Advanced Finger Detection Technology™ for pinch protection
• Works as standalone safety sensor or reactivation sensor
• Independent of floor type and surroundings
• Compact design for easy installation
• Reliable performance in all environments

Technical Specifications:

• Technology: Laser (Time-of-Flight)
• Detection Points: 170 points
• Detection Mode: Presence detection
• Power Supply: 12–24V DC ±15%
• Power Consumption: ≤ 2 W
• Response Time:
• Door wing safety: ≤ 50 ms
• Pinch zone safety: ≤ 90 ms
• Output: 2 electronic relays (NO/NC)
• Max Voltage: 42V AC/DC
• Max Current: 100 mA
• Detection Range: Up to 4 m (diagonal)
• Protection Rating: IP54
• Operating Temperature: -30°C to +60°C
• Dimensions: Approx. 85 × 142 mm
• Connector: Standard interface

Applications in UAE:

• Automatic swing doors
• Hospitals & healthcare facilities
• Commercial entrances & office buildings
• Shopping malls & retail stores
• Industrial doors & controlled access areas

Why Choose BEA LZR-FLATSCAN SW?

• Complete door leaf + hinge safety coverage
• Prevents accidents and finger injuries
• No dependency on floor type or environment
• Fast response and high accuracy
• Compact and easy to install

Package Includes:

• BEA LZR-FLATSCAN SW Sensor
• Mounting Base
• Connection Cable
• User Manual
