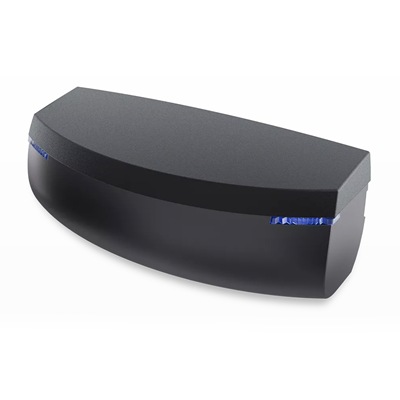

BEA EAGLE ARTEK Sensor Supplier in UAE Automatic Door

BEA EAGLE ARTEK Automatic Door Opener Sensor in UAE

• The BEA EAGLE ARTEK is a universal microwave opening sensor designed
• for all types of automatic doors, including sliding, swing, and revolving doors.
• It features a compact and slim design, allowing discreet installation even in tight spaces,
• while delivering high stability and reliable motion detection.
• With ARTEK radar technology, the sensor offers improved detection accuracy
• and better filtering of unwanted movements, ensuring efficient door operation.

Key Features:

• Microwave radar motion detection (24.15 GHz)
• Unidirectional detection (approaching motion only)
• Compact & slim design for easy integration
• Adjustable detection field (electronically controlled)
• Push-button configuration (no manual antenna adjustment)
• Cross-traffic rejection (filters unwanted movement)
• Energy-efficient operation (reduces unnecessary openings)
• Easy retrofit with existing BEA systems

Technical Specifications:

• Technology: Microwave radar
• Frequency: 24.15 GHz
• Detection Mode: Motion
• Detection Range:
• Wide: 4 m × 2 m
• Narrow: 2 m × 2.2 m
• Minimum Detection Speed: 5 cm/s
• Power Supply:
• 12–24V AC ±10%
• 12–24V DC +30% / -10%
• Power Consumption: < 1 W
• Output: Solid-state relay (NO/NC equivalent)
• Mounting Height: 1.8 m to 4 m
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C
• Dimensions: 120 × 50 × 50 mm
• Material: ABS
• Weight: ~120 g

Applications in UAE:

• The BEA EAGLE ARTEK Sensor is ideal for:
• Automatic sliding glass doors
• Swing door automation systems
• Revolving doors
• Retail shops & malls
• Office buildings
• Hospitals & commercial entrances

Why Choose BEA EAGLE ARTEK?

• Compact and modern design
• High detection accuracy with fewer false triggers
• Easy setup with push-button control
• Energy-efficient operation
• Compatible with all automatic door systems

Package Includes:

• BEA EAGLE ARTEK Sensor
• Mounting Accessories
• User Manual
