Automatic Swing Door Opener 150 KG UAE

Automatic Swing Door Operator for Offices, Hospitals & Commercial Buildings

The Automatic Swing Door Opener 150 KG is a professional low-energy automatic door automation system designed for smooth, safe, and reliable operation of swing doors weighing up to 150 kg. Suitable for offices, hospitals, clinics, banks, shopping centers, elderly care facilities, hotels, and commercial buildings across Dubai, Sharjah, Abu Dhabi, and throughout the UAE.

Powered by an advanced microprocessor controller and a high-performance brushless motor, this automatic swing door operator delivers quiet operation, energy efficiency, and long service life. The system supports both automatic and manual modes and is compatible with a wide range of access control systems including RFID readers, fingerprint devices, face recognition terminals, PIN code keypads, push buttons, and microwave sensors.

Designed for convenience and safety, the operator features adjustable opening and closing speeds, hold-open functionality, automatic locking modes, obstacle detection, and auto-reverse protection. Its durable construction and voltage adaptability make it suitable for continuous operation in demanding commercial environments.

Main Features

• Suitable for swing doors up to 150 KG
• Automatic and manual operating modes
• Advanced microprocessor controller
• Brushless motor with self-locking technology
• Smooth and quiet operation
• Adjustable opening and closing speed
• Auto-Reverse safety function
• Electric lock support
• Fire alarm system integration
• Compatible with multiple access control systems
• Energy-efficient and low maintenance

Working Modes

• Standalone automatic operation
• Remote control operation
• RFID card access control
• Fingerprint access control
• Face recognition access control
• PIN code access control
• Microwave sensor activation
• Exit button operation

Technical Specifications

• Product Name: Automatic Swing Door Operator
• Maximum Door Weight: 150 KG
• Power Supply: 110V / 220V AC
• Voltage Tolerance: ±10%
• Opening Direction: Pull (Open Inside) / Push (Open Outside)
• Opening Time: 3–7 Seconds / 90°
• Hold Open Time: 1–30 Seconds Adjustable
• Operating Temperature: -20°C to +55°C
• Protection Level: IP12D
• Product Dimensions: 450 × 85 × 100 mm
• Unit Weight: 9.0 KG

Door Status Functions

• Automatic Mode
• Lock Mode
• One-Way Traffic Mode
• Half Open Mode
• Hold Open Mode

Applications

• Office Buildings
• Hospitals and Clinics
• Banks
• Hotels
• Shopping Malls
• Commercial Buildings
• Government Facilities
• Educational Institutions
• Elderly Care Centers
• Healthcare Facilities

Access Control Compatibility

• RFID Card Readers
• Fingerprint Access Systems
• Face Recognition Systems
• PIN Code Keypads
• Microwave Motion Sensors
• Push Buttons
• Non-Touch Exit Buttons
• Fire Alarm Systems

Package Includes

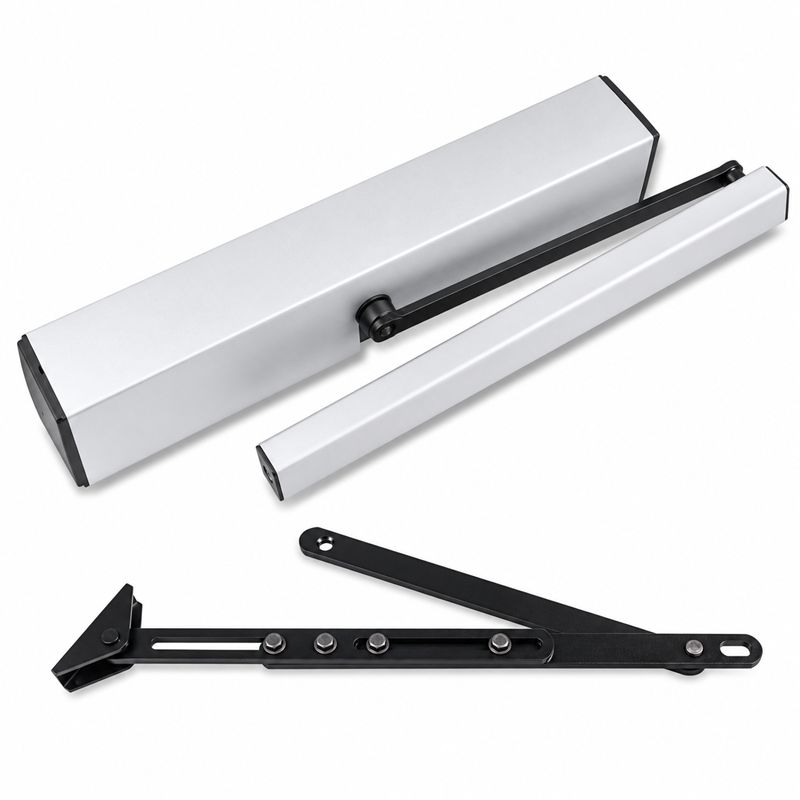

• 1 × Automatic Swing Door Opener 220V
• 1 × Pull Arm / Push Arm
• 1 × Microwave Sensor
• 2 × Remote Controls
• 1 × English User Manual

Benefits

• Improves accessibility and convenience
• Reduces physical contact with doors
• Ideal for disabled and elderly users
• Supports modern access control systems
• Quiet and reliable operation
• Energy-efficient brushless motor
• Suitable for high-traffic environments
• Low maintenance requirements

Why Choose Automatic Swing Door Opener 150 KG UAE?

• Suitable for doors up to 150 KG
• Advanced safety and automation features
• Compatible with access control systems
• Reliable performance in UAE conditions
• Easy installation and operation
• Supports commercial and healthcare applications
• Smooth and quiet operation
• Professional installation available across UAE

Frequently Asked Questions

What is the maximum door weight supported?

The operator is designed for swing doors weighing up to 150 KG.

Can it work with access control systems?

Yes. It supports RFID, fingerprint, face recognition, keypad access, push buttons, and microwave sensors.

Does it include safety protection?

Yes. The system features obstacle detection and auto-reverse safety functionality.

Can it operate during voltage fluctuations?

Yes. The operator supports both 110V and 220V power supplies with ±10% voltage tolerance.

Where can this automatic door opener be installed?

It is suitable for offices, hospitals, banks, hotels, commercial buildings, clinics, and public facilities.
