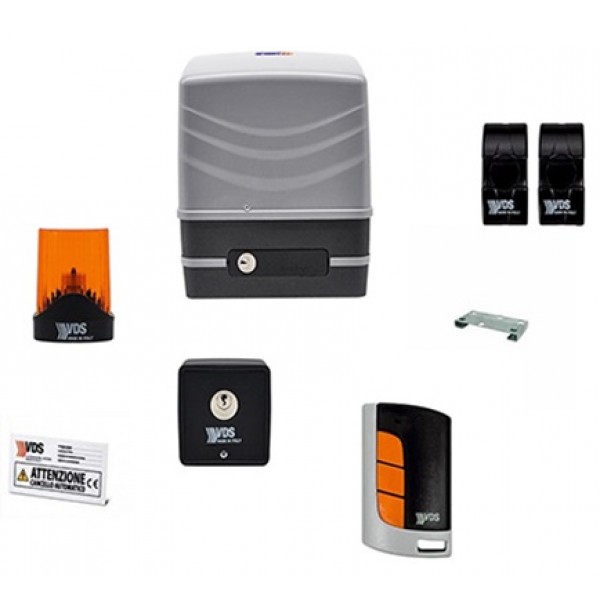

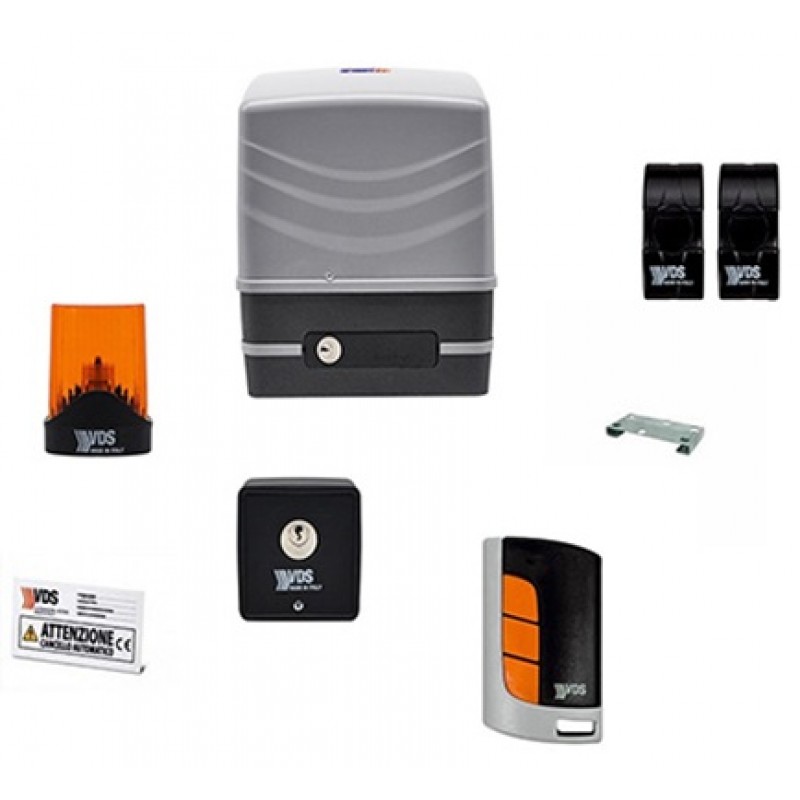

VDS CARRERA 1000 KG Sliding Gate Motor UAE

Italian Automatic Sliding Gate Opener for Residential & Commercial Gates

VDS CARRERA 1000 KG Sliding Gate Motor is a premium Italian automatic gate opener designed for residential, commercial, and industrial sliding gate automation systems across UAE.

The VDS CARRERA 1000 sliding gate motor is engineered for smooth, secure, and reliable automatic gate operation with advanced automation technology and durable heavy-duty construction.

Designed for sliding gates weighing up to 1000 KG, the VDS CARRERA gate opener delivers powerful and stable gate movement for villas, warehouses, commercial buildings, parking entrances, factories, and industrial gate systems.

This VDS sliding gate motor features a strong die-cast aluminium structure with powder-coated finishing for excellent durability, corrosion resistance, and long-lasting outdoor operation.

The internal steel and cast gears are manufactured from solid materials and lubricated using lithium grease technology for smooth movement, quiet operation, and protection against corrosion and wear.

The VDS CARRERA 1000 motor supports both 230Vac and 24Vcc operation with optional encoder versions for advanced automation control and improved gate management functionality.

Built with anti-squashing safety technology and slowdown functionality according to EN12453 standards, the VDS CARRERA sliding gate motor provides secure and smooth automatic gate operation.

The control unit box includes air-stop sealing technology to protect internal electronic components from moisture, dust, and insects, ensuring reliable long-term automation performance.

The VDS CARRERA 1000 gate opener includes electronic torque control, pre-wired connection systems, and easy programming software for professional installation and efficient automation setup.

This sliding gate motor also supports optional battery backup functionality for uninterrupted operation during power failure situations.

Suitable for villas, residential compounds, commercial facilities, industrial warehouses, parking entrances, and heavy-duty gate systems, the VDS CARRERA 1000 combines Italian engineering, reliable automation technology, quiet operation, and powerful gate performance for professional installations across Dubai, Sharjah, Abu Dhabi, Ajman, Fujairah, Ras Al Khaimah, Umm Al Quwain, Al Ain, and all UAE.

VDS CARRERA 1000 KG Features

• 1000 KG automatic sliding gate motor
• Italian sliding gate automation system
• Die-cast aluminium motor structure
• Powder-coated corrosion-resistant finish
• Steel and cast solid gears
• Lithium grease mechanical lubrication
• Very quiet gate operation
• Electronic torque control system
• Anti-squashing safety technology
• Slowdown function according to EN12453
• Optional encoder support
• Optional battery backup system
• Easy programming software
• Moisture-protected control unit box
• Suitable for residential and industrial gates

Applications

• Residential sliding gates
• Villa gate automation
• Commercial sliding gates
• Warehouse entrances
• Industrial gate systems
• Parking entrance automation
• Factory gate automation
• Heavy-duty automatic gates

Technical Specifications

• Model: VDS CARRERA 1000
• Maximum Gate Weight: 1000 KG
• Power Supply: 230Vac – 24Vcc
• Motor RPM: 1400 RPM
• Absorbed Power: 330W
• Average Absorption: 2A
• Pinion: M4-Z16
• Condenser: 12.5 UF
• Operator Weight: 9 KG
• Noise Level: Less than 30 DBA
• Protection Rating: IP44
• Operating Temperature: -20°C to +55°C
• Speed: 10 m/min (230Vac) – 12 m/min (24Vcc)
• Frequency of Use: 50% (230Vac) – 80% (24Vcc)
• Operating Cycle: Semi-Intensive / Intensive

Why Choose VDS CARRERA 1000 KG UAE?

• Premium Italian automation quality
• Powerful 1000 KG gate automation performance
• Very quiet and smooth operation
• Advanced anti-crushing safety system
• Corrosion-resistant aluminium construction
• Reliable industrial-grade automation technology
• Professional installation support across UAE

Frequently Asked Questions

What is VDS CARRERA 1000 used for?

VDS CARRERA 1000 is used for automatic sliding gate automation systems in villas, warehouses, commercial buildings, industrial facilities, and parking entrances.

What is the maximum gate weight supported?

The VDS CARRERA sliding gate motor supports automatic gates weighing up to 1000 KG.

Does the motor include safety functionality?

Yes, the VDS CARRERA 1000 includes anti-squashing safety technology, electronic torque control, and slowdown functionality according to EN12453 safety standards.

Is installation available in UAE?

Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Al Ain, Fujairah, Umm Al Quwain, and across UAE.
