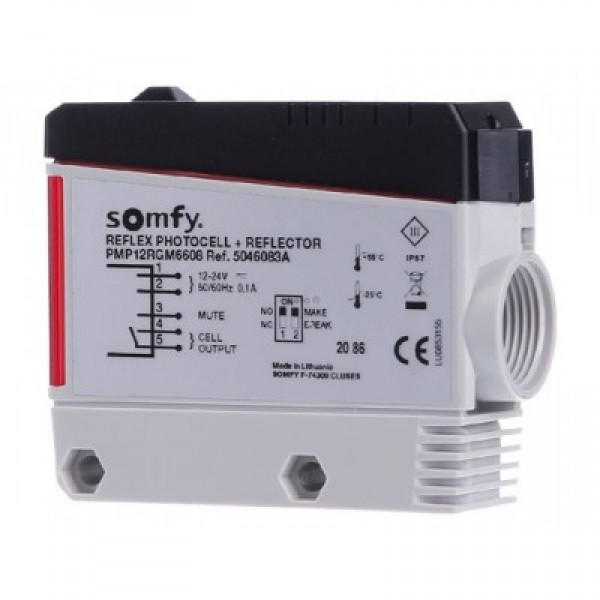

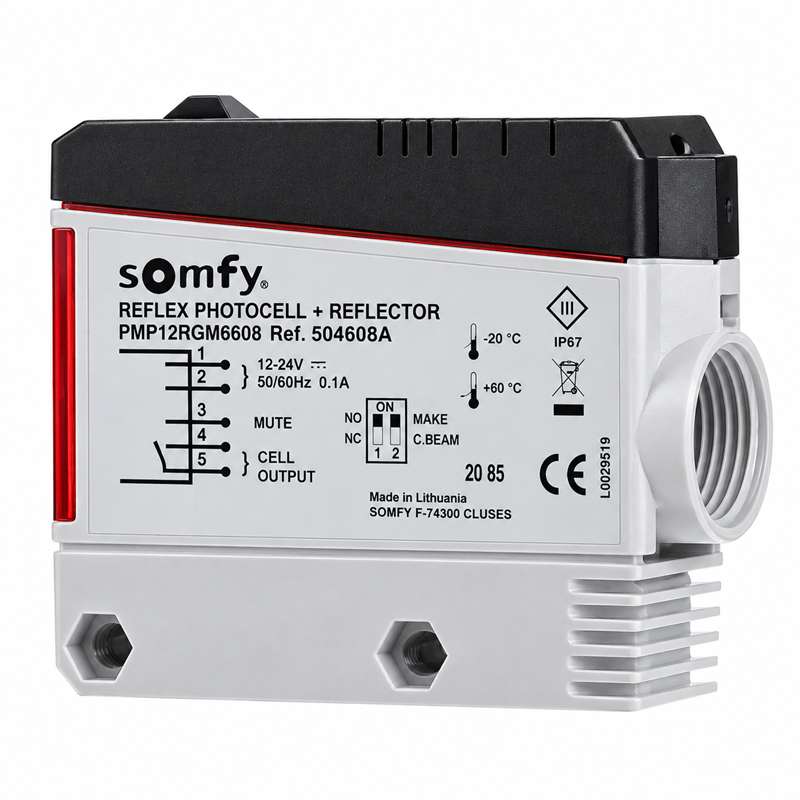

Heavy Duty Reflective Safety Sensor for Gate & Garage Automation
The SOMFY REFLEX Reflector Photocell Sensor is a premium reflective safety device designed for automatic gate, garage door, and industrial automation systems across UAE.
The advanced reflective photocell sensor detects obstacles during automation movement, improving operational safety and helping prevent accidents or damage.
Developed using reliable SOMFY automation technology, the REFLEX reflector sensor delivers stable long-range obstacle detection with dependable performance in residential, commercial, and industrial environments.
The reflective safety system provides a detection range of up to 12 meters in open areas, making it suitable for wide entrances, industrial access systems, parking automation, and large gate installations.
The photocell sensor supports normally open and normally closed contact configurations for flexible integration with different automation control systems.
The compact and professional housing design allows easy installation on gates, barriers, garage systems, and industrial automation applications.
The integrated signal output testing function improves installation diagnostics and operational monitoring.
Manufactured using durable industrial-grade materials, the REFLEX photocell features IP67 protection for maximum resistance against dust, rain, humidity, and harsh outdoor environments.
The safety sensor is designed to operate reliably under extreme UAE weather conditions including heat, dust, humidity, and continuous outdoor exposure.
Ideal for sliding gates, swing gates, garage doors, parking barriers, industrial entrances, warehouses, factories, and automation systems across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and across UAE.
SOMFY REFLEX Reflector Photocell Features
- Reflective obstacle detection system
- Long detection range up to 12 meters
- Industrial-grade IP67 protection
- Suitable for outdoor automation systems
- Compact professional design
- Signal output testing function
- Supports NO/NC contact operation
- Reliable obstacle detection performance
- Suitable for industrial and commercial use
- Professional SOMFY safety technology
Applications
- Sliding gate automation
- Swing gate systems
- Garage door automation
- Parking barriers
- Industrial entrances
- Warehouse automation
- Commercial access systems
- Automatic security systems
SOMFY REFLEX Reflector Photocell Technical Specifications
- Model: PMP12RGM6608
- Brand: SOMFY
- Device Type: Reflective Photocell Sensor
- Detection Range: 12 Meters
- Range in Open Areas: 12 Meters
- Power Supply: 24V AC/DC
- Rated Voltage/Frequency: 24 Vac/DC
- Output Contact Type: NF
- Contacts: NO/NC
- Load Current: 3A
- Electrical Protection Class: II Double Insulation
- Dust & Moisture Protection: IP67
- Operating Temperature: -25°C to +60°C
- Signal Test Output: Yes
- Cable Type: H05 RR-F 4 × 0.75 mm²
- Dimensions (H × W × D): 68 × 25 × 81 mm
- Application: Gate & Garage Automation Safety
- Country of Origin: SOMFY Technology
Compatible Systems
- SOMFY Sliding Gate Motors
- SOMFY Swing Gate Motors
- SOMFY Garage Door Motors
- Automatic Parking Barriers
- Industrial Automation Systems
- Access Control Systems
Why Choose SOMFY REFLEX Photocell UAE?
- Reliable SOMFY safety technology
- Long-range obstacle detection
- Heavy-duty IP67 protection
- Suitable for harsh outdoor environments
- Supports industrial automation systems
- Easy installation and integration
- Available across UAE with technical support
Frequently Asked Questions
What is the SOMFY REFLEX Reflector Photocell used for?
The SOMFY REFLEX Reflector Photocell is used for obstacle detection and automation safety in gate, garage, and industrial systems.
What is the detection range of this photocell?
The REFLEX photocell provides a detection range of up to 12 meters in open areas.
Is the photocell suitable for outdoor use?
Yes, the sensor features IP67 protection for reliable outdoor and industrial operation.
Which systems are compatible with this safety sensor?
The sensor is compatible with sliding gates, swing gates, garage doors, parking barriers, and industrial automation systems.
Is installation available in UAE?
Yes, professional installation, programming, and automation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Al Ain, Fujairah, Umm Al Quwain, and across UAE.
