Heavy Duty Swing Gate Automation System for Residential Gates
The SOMFY IXENGO JL 230V Swing Gate Opener is a premium automation solution designed for residential and light commercial swing gate systems across UAE.
The IXENGO JL 230V delivers powerful, secure, and reliable automation performance for swing gates weighing up to 300 KG and gate leaf lengths up to 4 meters.
Developed using advanced SOMFY automation technology, the system provides smooth gate movement, intelligent control, adjustable operating parameters, and high resistance against wind pressure and forced opening attempts.
The non-retractable electromechanical mechanism ensures exceptional durability and increased resistance under demanding operating conditions.
The automation system allows customizable operating parameter settings for flexible installation and optimized gate performance.
The adjustable torque control system enables precise movement management and improved operational safety for residential gate automation.
The IXENGO JL 230V provides fast gate operation with opening times to 90° ranging from 7 to 22 seconds depending on installation configuration.
The secure manual release system with individual key allows safe emergency gate operation during maintenance or power failure situations.
The intelligent control system supports up to 128 programmable remote control channels, making it suitable for villas, compounds, and residential communities.
The included SOMFY CB 230 RTS control board provides advanced automation management, reliable RTS radio communication, and intelligent safety functionality.
Manufactured using durable outdoor-grade materials, the IXENGO JL system is designed to withstand harsh UAE weather conditions including heat, dust, humidity, and outdoor exposure.
The complete automation package includes motors, control board, remote controls, photocells, warning light, and push button for professional installation.
Ideal for villas, private compounds, residential communities, smart home systems, and automatic swing gate automation projects across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and across UAE.
SOMFY IXENGO JL 230V Features
- Heavy-duty swing gate automation system
- Suitable for gates up to 300 KG
- Supports gate leaf lengths up to 4 meters
- Non-retractable durable mechanism
- Adjustable operating parameters
- Adjustable motor torque control
- Fast opening performance
- Secure manual release system
- Advanced RTS automation technology
- Supports up to 128 remote channels
- High resistance to wind pressure and forced opening
SOMFY IXENGO JL 230V Technical Specifications
- Model: IXENGO JL 230V
- Brand: SOMFY
- Device Type: Swing Gate Opener
- Maximum Gate Weight: 300 KG
- Maximum Gate Leaf Length: 4 Meters
- Main Power Supply: 220-230V AC
- Motor Power Supply: 230V
- External Lighting Output: 230V / 60W
- Accessory Power Supply: 24V DC / 350mA
- Drive Force: 3000N
- Opening Time to 90°: 7-22 Seconds
- Remote Control Memory Capacity: Max 128 Channels
- Operating Temperature: -20°C to +60°C
- Protection Class: IP54
- Technology: RTS Radio Technology
- Application: Residential & Light Commercial
- Country of Origin: SOMFY Technology

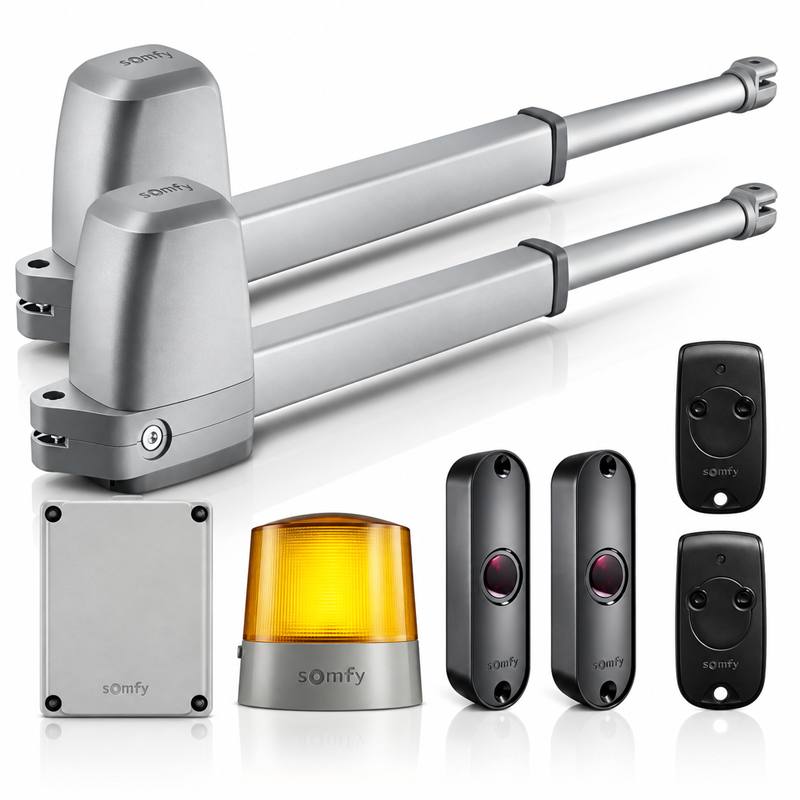

SOMFY IXENGO JL 230V Package Contains
- 2 x SOMFY IXENGO JL Swing Gate Motors
- 1 x SOMFY CB 230 RTS Control Board
- 2 x SOMFY KEYTIS RTS Remote Controls
- 1 x SOMFY Warning Light
- 1 x SOMFY Pair of Master Pro Bitech Photocells
- 1 x Push Button
Applications
- Residential villa swing gates
- Private compound entrances
- Automatic security gates
- Residential communities
- Smart home gate automation
- Commercial swing gates
- Access control systems
- Outdoor gate automation systems
Why Choose SOMFY IXENGO JL 230V UAE?
- Advanced SOMFY automation technology
- High resistance heavy-duty mechanism
- Smooth and reliable gate movement
- Adjustable intelligent control system
- Complete professional installation package
- Secure and safe automation performance
- Available across UAE with installation support
Frequently Asked Questions
What is the SOMFY IXENGO JL 230V used for?
The SOMFY IXENGO JL 230V is used for automating residential and light commercial swing gate systems.
What is the maximum gate size supported?
The IXENGO JL supports swing gates weighing up to 300 KG and gate leaf lengths up to 4 meters.
Does the system support remote controls?
Yes, the system supports up to 128 programmable RTS remote control channels.
What safety features are included?
The system includes adjustable torque control, secure manual release, photocells, and advanced RTS automation safety functions.
Is installation available in UAE?
Yes, professional installation, programming, and automation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Al Ain, Fujairah, Umm Al Quwain, and across UAE.
