• SOMFY AXROLL RTS RECEIVER
• Ref: SO1841034
• SOMFY AXROLL RTS RECEIVER

Description:

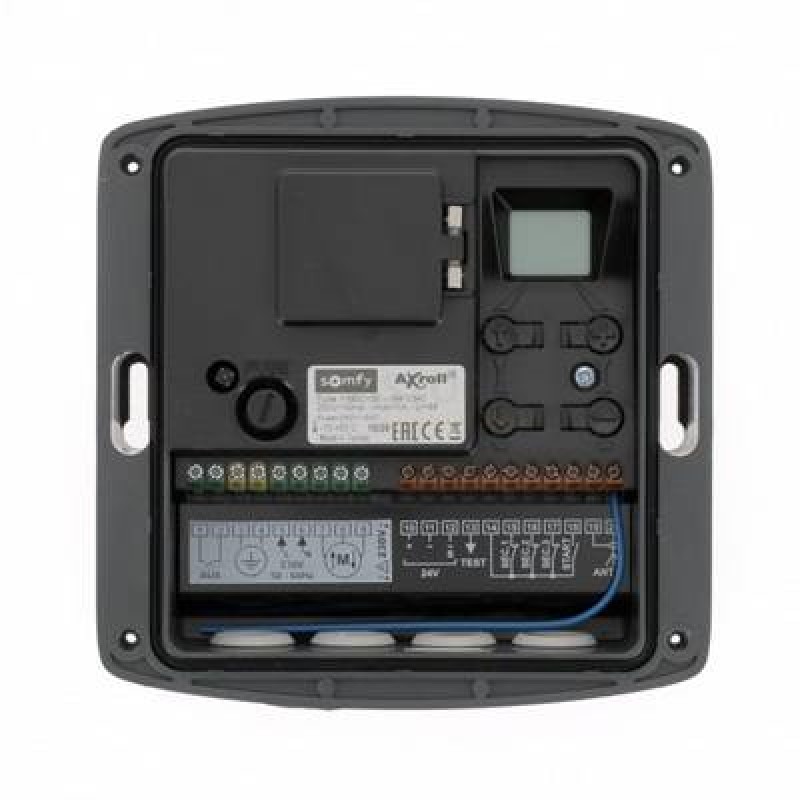

• AXROLL RTS Somfy 1841034 receiver.
• It allows you to control a wired garage door motor
• with a wireless radio transmitter and to associate
• the necessary accessories to the motor for the safety
• and compliance of the installation (signal light,
• area lighting, safety edge, sets of photoelectric cells).
• Its interface has 6 configurable operating modes:
• Automatic
• Semi-automatic
• Sequential
• Sequential with time delay
• 3 buttons (up, stop and down)
• Forced with keyboard keys
• Compatible with single-phase motors up to 750 W.
• It can be used with Somfy RTS and Simu transmitters.
• Its connection is intuitive thanks to the cable markings on the terminal blocks.
• Its LCD display allows for intuitive step-by-step programming.
• It has a self-test and diagnostic of the safety accessories at each operating cycle.

Technical Sheet:

• Warranty period: 2 years
• Dimensions: 150 x 150 x 40 mm
• Technology: Somfy RTS Radio
• Radio frequency: 433.42 MHz
• Installation type: Surface-mounted
